9680 Series
Manufacturer: Belden Inc.
Beta
⌘K

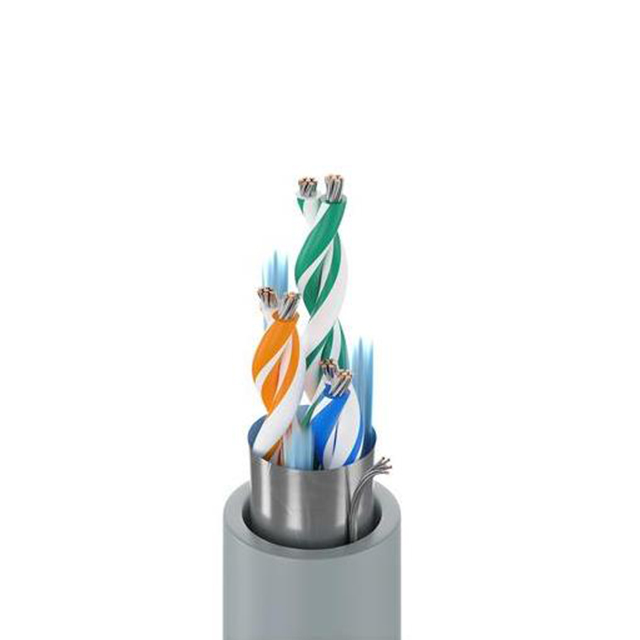

MULTI-PAIR 6COND 24AWG CHROME
| Part | Shield Material | Shield Coverage | Number of Conductors | Ratings | Cable Type | Length | Length | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket Color | Conductor Material | Shield Type | Features | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Usage | Wire Gauge |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 6 | UL Style 2919 | Multi-Pair | 152.4 m | 500 ft | 7 | 32 AWG | 80 °C | -20 ░C | 0.282 in | 7.16 mm | Polyethylene (PE) | Chrome | Copper Tinned | Foil | Drain Wire | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | Computer | 24 AWG |
 Belden Inc. | Aluminum | 100 % | 6 | UL Style 2919 | Multi-Pair | 7 | 32 AWG | 80 °C | -20 ░C | 0.282 in | 7.16 mm | Polyethylene (PE) | Chrome | Copper Tinned | Foil | Drain Wire | 0.035 in | 0.889 mm | Poly-Vinyl Chloride (PVC) | Computer | 24 AWG |
