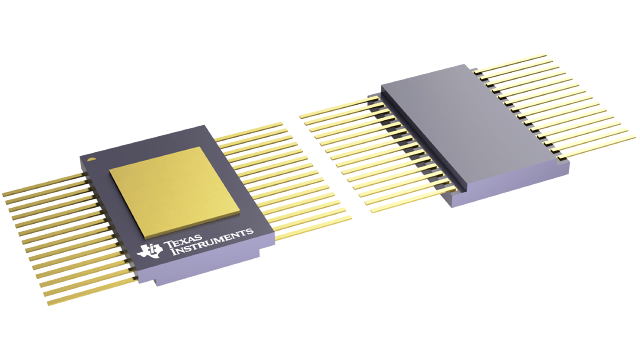

High-resolution analog-to-digital converter (ADC)
Key Features
• QMLV (QML Class V) MIL-PRF-38535 Qualified and Radiation Hardness Assured (RHA), SMD 5962-142315962L1423101VXC - Qualified over the Military Temperature Range (–55°C to 125°C)5962L1423102VXC - Qualified over Reduced Temperature Range (–55°C to 115°C) for Improved Dynamic Performance5962L14231:Radiation Hardness Assurance (RHA) up to Total Ionizing Dose (TID) 50 kRAD (Si)Single Event Latchup (SEL) Immune to LET = 50 MeV-cm2/mg at 125°CSingle Event Latchup (SEL) Immune to LET = 60 MeV-cm2/mg at 85°CHigh Resolution: 124-dB SNR (1000 SPS)High Accuracy: THD: –102 dBINL: 0.5 ppmLow-Noise PGATwo-Channel Input MUXInherently-Stable Modulator With Fast Responding Over-Range DetectionFlexible Digital Filter:Sinc + FIR + IIR (Selectable)Linear or Minimum Phase ResponseProgrammable High-Pass FilterSelectable FIR Data Rates:250 SPS to 4 kSPSFilter Bypass OptionLow-Power Consumption: 25 mWOffset and Gain Calibration EngineSYNC InputAnalog Supply: Unipolar (5 V) or Bipolar (±2.5 V)Digital Supply: 1.75 to 3.3 VQMLV (QML Class V) MIL-PRF-38535 Qualified and Radiation Hardness Assured (RHA), SMD 5962-142315962L1423101VXC - Qualified over the Military Temperature Range (–55°C to 125°C)5962L1423102VXC - Qualified over Reduced Temperature Range (–55°C to 115°C) for Improved Dynamic Performance5962L14231:Radiation Hardness Assurance (RHA) up to Total Ionizing Dose (TID) 50 kRAD (Si)Single Event Latchup (SEL) Immune to LET = 50 MeV-cm2/mg at 125°CSingle Event Latchup (SEL) Immune to LET = 60 MeV-cm2/mg at 85°CHigh Resolution: 124-dB SNR (1000 SPS)High Accuracy: THD: –102 dBINL: 0.5 ppmLow-Noise PGATwo-Channel Input MUXInherently-Stable Modulator With Fast Responding Over-Range DetectionFlexible Digital Filter:Sinc + FIR + IIR (Selectable)Linear or Minimum Phase ResponseProgrammable High-Pass FilterSelectable FIR Data Rates:250 SPS to 4 kSPSFilter Bypass OptionLow-Power Consumption: 25 mWOffset and Gain Calibration EngineSYNC InputAnalog Supply: Unipolar (5 V) or Bipolar (±2.5 V)Digital Supply: 1.75 to 3.3 V
Description
AI
The ADS1282-SP is a radiation-tolerant extremely high-performance, single-chip analog-to-digital converter (ADC) with an integrated, low-noise programmable gain amplifier (PGA) and two-channel input multiplexer (MUX). ADS1282-SP is suitable for the demanding needs of space applications providing ultra-precision performance while maintaining radiation tolerance suitable for a large variety of satellites, payloads, sensing and other harsh environment applications.
The converter uses a fourth-order, inherently stable, delta-sigma (ΔΣ) modulator that provides outstanding noise and linearity performance. The modulator is used either in conjunction with the on-chip digital filter, or can be bypassed for use with post processing filters.
The flexible input MUX provides an additional external input for measurement, as well as internal self-test connections. The PGA features outstanding low noise (5 nV/√Hz) and high input impedance, allowing easy interfacing to transducers over a wide range of gains.
The digital filter provides selectable data rates from 250 to 4000 samples per second (SPS). The high-pass filter (HPF) features an adjustable corner frequency. On-chip gain and offset scaling registers support system calibration.
The synchronization input (SYNC) can be used to synchronize the conversions of multiple ADS1282s. The SYNC input also accepts a clock input for continuous alignment of conversions from an external source.
Together, the amplifier, modulator, and filter dissipate 30 mW. The ADS1282-SP is fully specified from –55°C to 125°C.
The ADS1282-SP is a radiation-tolerant extremely high-performance, single-chip analog-to-digital converter (ADC) with an integrated, low-noise programmable gain amplifier (PGA) and two-channel input multiplexer (MUX). ADS1282-SP is suitable for the demanding needs of space applications providing ultra-precision performance while maintaining radiation tolerance suitable for a large variety of satellites, payloads, sensing and other harsh environment applications.
The converter uses a fourth-order, inherently stable, delta-sigma (ΔΣ) modulator that provides outstanding noise and linearity performance. The modulator is used either in conjunction with the on-chip digital filter, or can be bypassed for use with post processing filters.
The flexible input MUX provides an additional external input for measurement, as well as internal self-test connections. The PGA features outstanding low noise (5 nV/√Hz) and high input impedance, allowing easy interfacing to transducers over a wide range of gains.
The digital filter provides selectable data rates from 250 to 4000 samples per second (SPS). The high-pass filter (HPF) features an adjustable corner frequency. On-chip gain and offset scaling registers support system calibration.
The synchronization input (SYNC) can be used to synchronize the conversions of multiple ADS1282s. The SYNC input also accepts a clock input for continuous alignment of conversions from an external source.
Together, the amplifier, modulator, and filter dissipate 30 mW. The ADS1282-SP is fully specified from –55°C to 125°C.
