9004-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

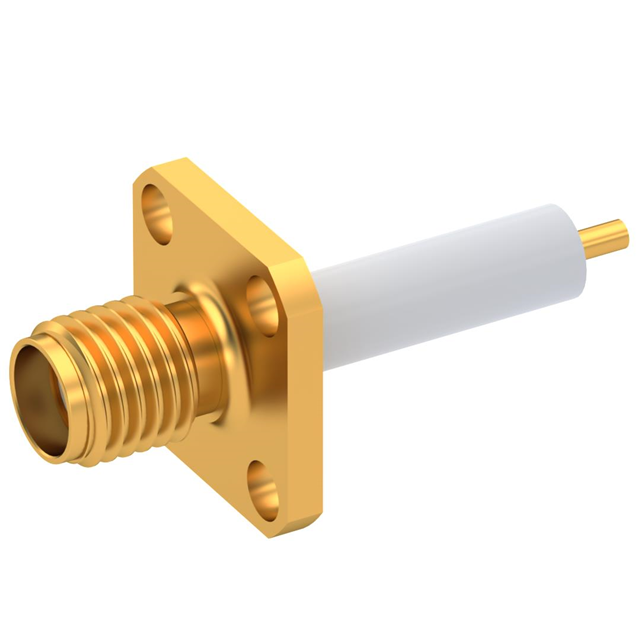

SMA / STRAIGHT JACK RECEPTACLE F
| Part | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Body Material | Dielectric Material | Center Contact Plating | Center Contact Material | Features | Contact Termination | Frequency - Max [Max] | Shield Termination | Connector Style | Connector Type | Housing Color | Number of Ports | Fastening Type | Impedance | Mounting Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Gold | -65 ░C | 165 °C | 500 | Stainless Steel | Polytetrafluoroethylene (PTFE) | Gold | Beryllium Copper | Extended Insulation | Solder | 18 GHz | Solder | SMA | Female Socket Jack | Gold | 1 | Threaded | 50 Ohms | Panel Mount Through Hole | Flange |
