3214J Series
DC Fans Tubeaxial Fan, 92x92x38mm, 24VDC, 164.8CFM, 50W, 73dBA, 13000RPM, Ball, S-Force
Manufacturer: ebm-papst Inc.
Catalog
DC Fans Tubeaxial Fan, 92x92x38mm, 24VDC, 164.8CFM, 50W, 73dBA, 13000RPM, Ball, S-Force
Beta
⌘K
DC Fans Tubeaxial Fan, 92x92x38mm, 24VDC, 164.8CFM, 50W, 73dBA, 13000RPM, Ball, S-Force
DC Fans Tubeaxial Fan, 92x92x38mm, 24VDC, 164.8CFM, 50W, 73dBA, 13000RPM, Ball, S-Force
DC Fans Tubeaxial Fan, 92x92x38mm, 24VDC, 164.8CFM, 50W, 73dBA, 13000RPM, Ball, S-Force
| Part | Lifetime @ Temp. | Voltage Range [Max] | Voltage Range [Min] | Material - Blade | Material - Frame | Power (Watts) | Noise | Voltage - Rated | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Bearing Type | Air Flow | Air Flow | RPM | Features | Termination | Width [y] | Size / Dimension [y] | Size / Dimension [x] | Weight | Weight | Approval Agency | Weight [custom] | Weight [custom] | Current Rating (Amps) | Weight [custom] | Weight [custom] | Ingress Protection | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

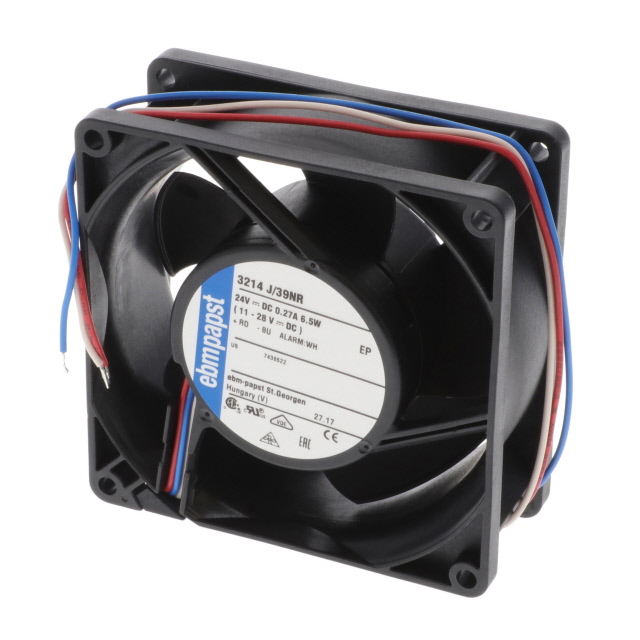

 ebm-papst Inc. | 70000 Hrs | 28 V | 11 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 6.5 W | 51 dB(A) | 24 VDC | -20 ░C | 70 °C | Tubeaxial | Ball | 2.14 mł/min | 76.5 CFM | 6000 RPM | Alarm Sensor | 3 Wire Leads | 38 mm | 92 mm | 92 mm | |||||||||||

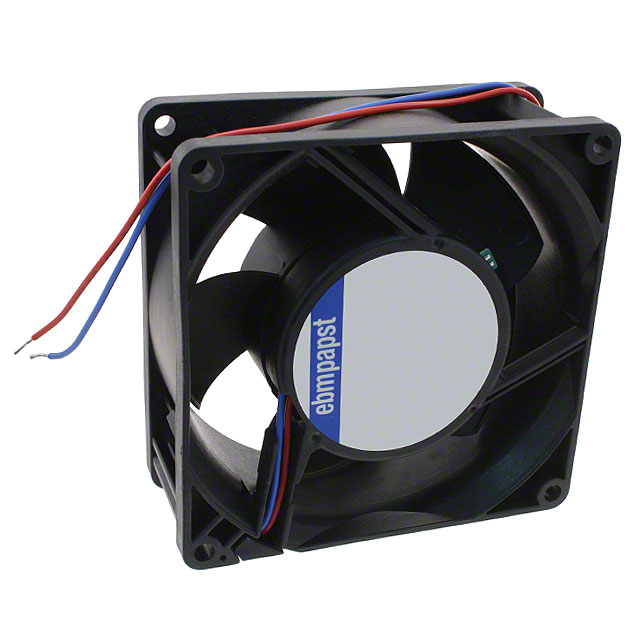

 ebm-papst Inc. | 70000 Hrs | 28 V | 11 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 8 W | 51 dB(A) | 24 VDC | -20 ░C | 70 °C | Tubeaxial | Ball | 2.16 m³/min | 77 CFM | 6000 RPM | 2 Wire Leads | 38 mm | 92 mm | 92 mm | 239.95 g | 0.529 lb | CSA UL VDE | |||||||||

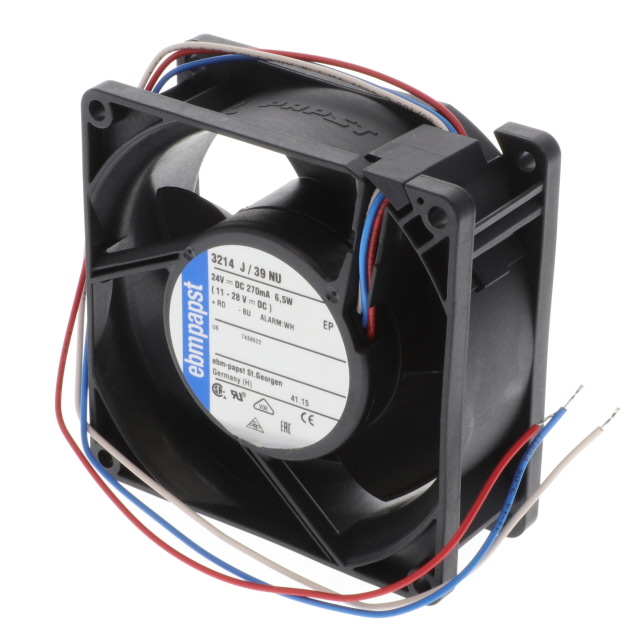

 ebm-papst Inc. | 70000 Hrs | 28 V | 11 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 6.5 W | 51 dB(A) | 24 VDC | -20 ░C | 70 °C | Tubeaxial | Ball | 2.14 mł/min | 76.5 CFM | 6000 RPM | Alarm Sensor | 3 Wire Leads | 38 mm | 92 mm | 92 mm | |||||||||||
 ebm-papst Inc. | 40 °C 60000 Hrs | 27.6 VDC | 12 | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 W | 73 dB(A) | 24 VDC | -20 ░C | 70 °C | Tubeaxial | Ball | 4.62 mł/min | 165 CFM | 13000 RPM | 2 Wire Leads | 38 mm | 92 mm | 92 mm | CSA UL VDE | 0.617 lb | 279.87 g | |||||||||
 ebm-papst Inc. | 70000 Hrs | 30 V | 12 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 9 W | 55 dB(A) | 24 VDC | -20 ░C | 70 °C | Tubeaxial | Ball | 2.41 m³/min | 86 CFM | 6800 RPM | Speed Sensor (Tach) | 3 Wire Leads | 38 mm | 92 mm | 92 mm | |||||||||||

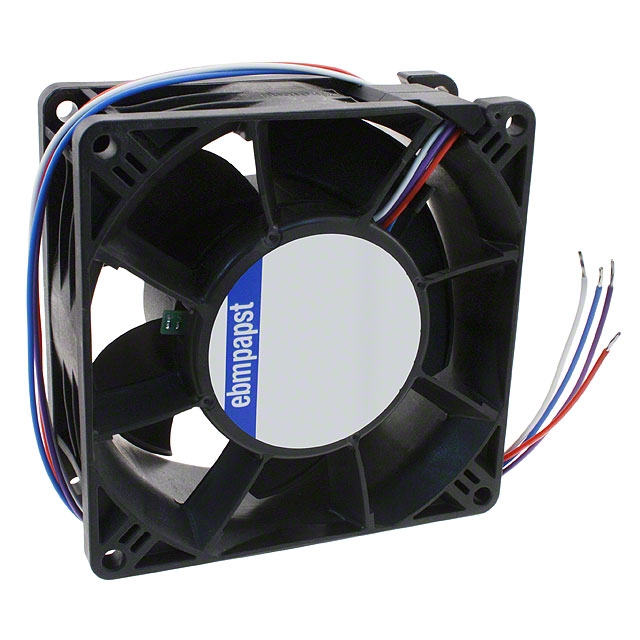

 ebm-papst Inc. | 40 °C 60000 Hrs | 27.6 VDC | 12 | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 50 W | 76 dB(A) | 24 VDC | -20 ░C | 70 °C | Tubeaxial | Ball | 4.62 mł/min | 165 CFM | 13000 RPM | PWM Control Speed Sensor (Tach) | 4 Wire Leads | 38 mm | 92 mm | 92 mm | CE CSA EAC UL VDE | 2 A | 0.62 lb | 281.23 g | IP20 | ||||||
 ebm-papst Inc. | 65000 Hrs | 27.6 VDC | 12 | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 30 Watts | 24 VDC | -20 ░C | 70 °C | Tubeaxial | Ball | 3.91 m³/min | 139.5 CFM | 11000 RPM | 2 Wire Leads | 38 mm | 92 mm | 92 mm | CSA UL VDE | 0.617 lb | 279.87 g | ||||||||||
ebm-papst Inc. | 45000 Hrs | 26 VDC | 20 VDC | Plastic | Plastic | 28.3 W | 24 VDC | -20 ░C | 55 °C | Tubeaxial | Ball | 1.16 mł/min | 41.3 CFM | 10500 RPM | PWM Control Speed Sensor (Tach) | 4 Wire Leads | 38 mm | 92 mm | 92 mm | 239.95 g | 0.529 lb | CE CSA UL | 1.18 A | IP20 | 55 °C | -4 °F | |||||
 ebm-papst Inc. | 70000 Hrs | 30 V | 11 VDC | Polyamide (PA) Nylon Fiberglass Reinforced | Fiberglass Reinforced Polybutylene Terephthalate (PBT) | 9 W | 55 dB(A) | 24 VDC | -20 ░C | 70 °C | Tubeaxial | Ball | 2.41 m³/min | 86 CFM | 6800 RPM | 2 Wire Leads | 38 mm | 92 mm | 92 mm | 239.95 g | 0.529 lb | CSA UL VDE |
