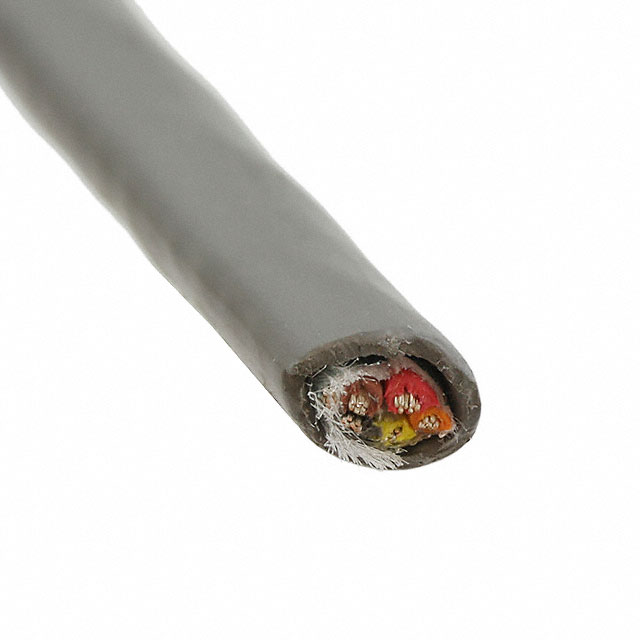

77144 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 5COND 14AWG SHLD 100=100'
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Shield Type | Number of Conductors | Wire Gauge | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Voltage | Cable Type | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Features | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.813 mm | 0.032 in | Slate | 8.46 mm | 0.333 in | Polyphenylene Ether Modified (mPPE) | Foil | 5 | 14.5 AWG | ISO 10993 | 41 | 30 | Polyphenylene Ether Modified (mPPE) | 600 V | Multi-Conductor | Copper Tinned | -50 °C | 105 ░C | Biological Compatibility | ||
ALPHA WIRE | 100 % | Aluminum | 0.813 mm | 0.032 in | Slate | 8.46 mm | 0.333 in | Polyphenylene Ether Modified (mPPE) | Foil | 5 | 14.5 AWG | ISO 10993 | 41 | 30 | Polyphenylene Ether Modified (mPPE) | 600 V | Multi-Conductor | Copper Tinned | -50 °C | 105 ░C | Biological Compatibility | 100 ft | 30.5 m |
