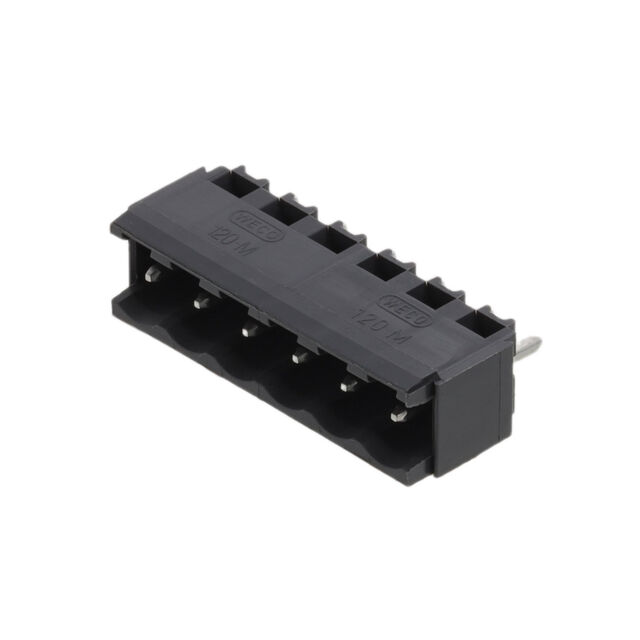

120-M-22 Series
Manufacturer: WECO Electrical Connectors Inc.
Beta
⌘K
TERM BLK PCB; HEADER 90DEG ANGL
| Part | Housing Material | Contact Tail Length | Contact Tail Length | Material Flammability Rating | Contact Material | Insulation Height | Insulation Height | Current - IEC | Type | Color | Number of Levels | Number of Positions | Termination Style | Contact Mating Finish | Voltage - UL | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Voltage - IEC | Mounting Type | Positions Per Level | Header Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WECO Electrical Connectors Inc. | Polyamide (PA) Nylon | 0.157 in | 4 mm | UL94 V-0 | Brass | 0.472 " | 12 mm | 12 A | Header Male Pins Shrouded (2 Side) | Gray | 1 | 6 | Solder | Tin | 300 V | -40 C | 100 °C | 0.197 in | 5 mm | 630 V | Through Hole | 6 | Vertical |
