725-055 Series

Manufacturer: EDAC Inc.

Catalog

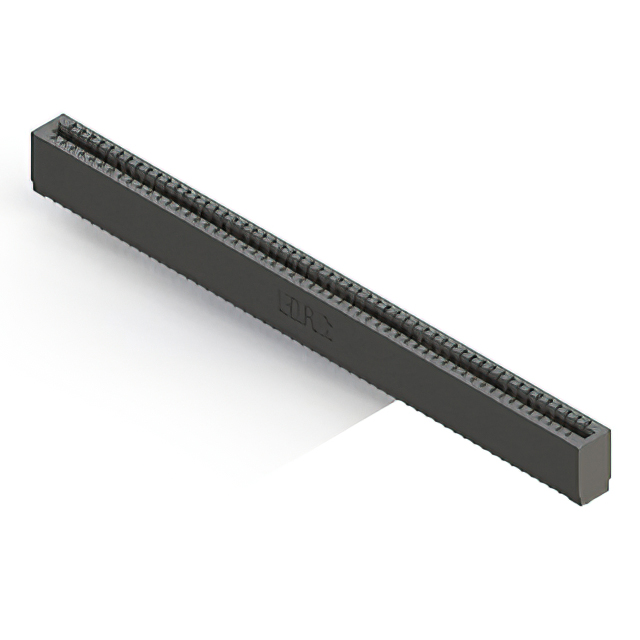

CONN EDGE SINGLE FML 55POS 0.100

Part	Termination Rows	Material - Insulation	Pitch	Pitch	Number of Rows	Contact Finish	Contact Material	Mounting Type	Color	Card Type	Termination	Read Out	Number of Positions/Bay/Row	Card Thickness [Max]	Card Thickness [Min]	Gender	Number of Positions	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 725-055-525-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	1	Gold	Copper Alloy	Through Hole	Black	Non Specified - Single Edge	Press-Fit	Single	55	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	55	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám
EDAC Inc. 725-055-545-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	1	Gold	Copper Alloy	Through Hole	Black	Non Specified - Single Edge	Press-Fit Wire Wrap	Single	55	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	55	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám
EDAC Inc. 725-055-541-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	1	Gold	Copper Alloy	Through Hole	Black	Non Specified - Single Edge	Press-Fit Wire Wrap	Single	55	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	55	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám
EDAC Inc. 725-055-540-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	1	Gold	Copper Alloy	Through Hole	Black	Non Specified - Single Edge	Press-Fit Wire Wrap	Single	55	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	55	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám
EDAC Inc. 725-055-520-101	1	Polyester Thermoplastic	0.1 "	2.54 mm	1	Gold	Copper Alloy	Through Hole	Black	Non Specified - Single Edge	Press-Fit	Single	55	0.07 in 1.78 mm	0.054 in 1.37 mm	Female	55	Cantilever	-40 C	105 ░C	30 Áin	0.76 Ám
