328996 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

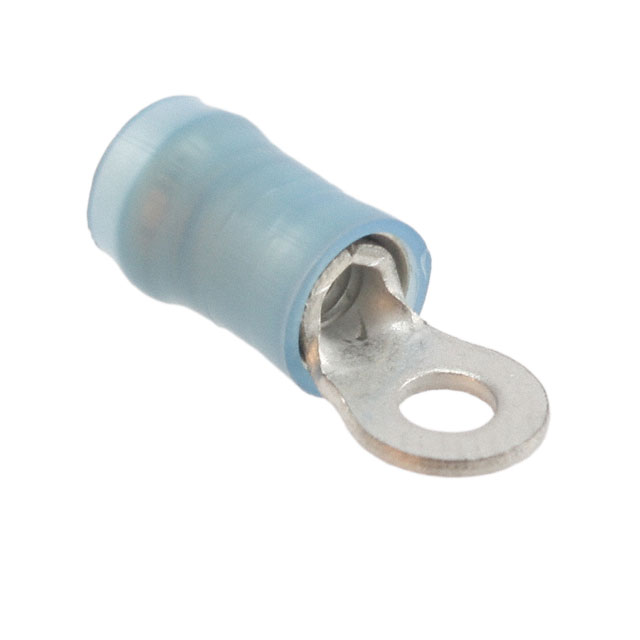

CONN RING CIRC 14-16AWG #4 CRIMP
| Part | Length - Overall [x] | Length - Overall [x] | Mounting Type | Contact Material | Terminal Type | Insulation | Material - Insulation | Contact Finish | Thickness | Thickness | Stud/Tab Size | Features | Color | Termination | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 17.86 mm | 0.703 in | Free Hanging (In-Line) | Copper | Circular | Insulated | Nylon Polyamide (PA) | Tin | 0.031 in | 0.79 mm | 4 Stud | Serrated Termination | Blue | Crimp | 0.115 in 2.92 mm | 0.17 " 4.32 mm | 0.25 " | 6.35 mm |
