MX77A Series

Catalog

CONN PIN HDR 4 POS R/A SMT BLUE

Part	Contact Type	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Color	Number of Rows	Insulation Height	Insulation Height	Insulation Material	Contact Material	Style	Mounting Type	Current Rating (Amps)	Fastening Type	Features	Connector Type	Number of Positions Loaded	Termination	Contact Finish - Post	Number of Positions	Shrouding	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Number of Rows [custom]	Note	Contact Termination	Color

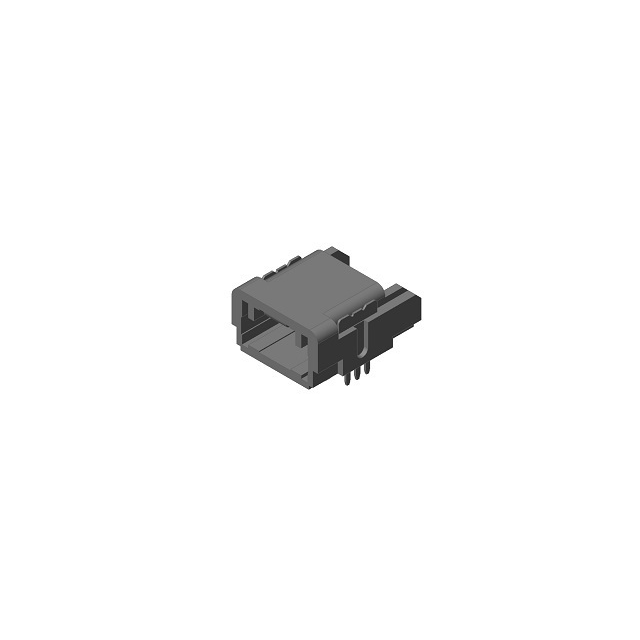

JAE Electronics MX77A004HF2	Male Pin	0.24 in	6.1 mm	Blue	1	9.7 mm	0.382 in	Polyphenylene Sulfide (PPS) Glass Filled	Copper Alloy	Board to Cable/Wire	Right Angle Surface Mount	3 A	Locking Ramp	Solder Retention	Header	All	Solder	Tin	4	Shrouded - 4 Wall	85 °C	-40 C	Square

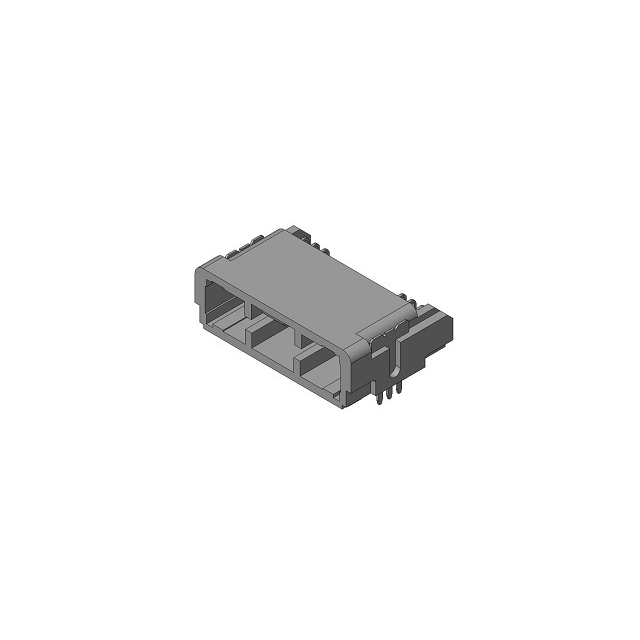

JAE Electronics MX77A016HF1	Male Pin	0.24 in	6.1 mm	Black		9.7 mm	0.382 in	Polyphenylene Sulfide (PPS) Glass Filled	Copper Alloy	Board to Cable/Wire	Right Angle Surface Mount	3 A	Locking Ramp	Solder Retention	Header	All	Solder	Tin	16	Shrouded - 4 Wall	85 °C	-40 C	Square	0.116 in	2.95 mm	UL94 V-0	2

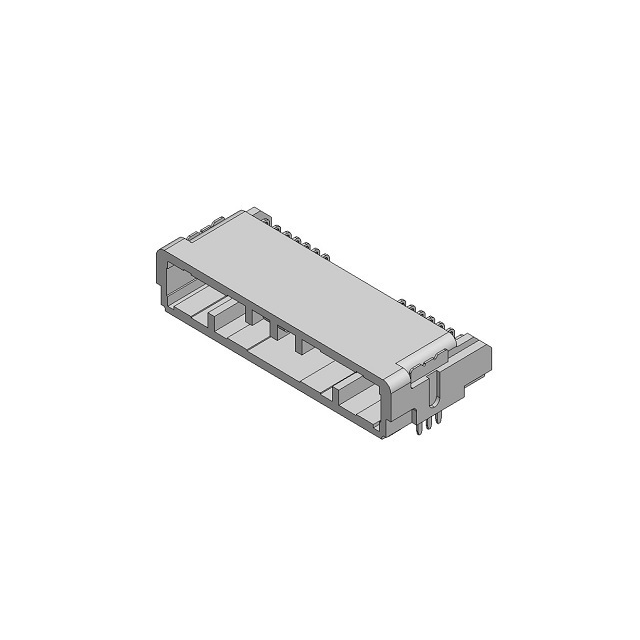

JAE Electronics MX77A032HF1	Male Pin	0.24 in	6.1 mm	Black		9.7 mm	0.382 in	Polyphenylene Sulfide (PPS) Glass Filled	Copper Alloy	Board to Cable/Wire	Right Angle Surface Mount	3 A	Locking Ramp	Solder Retention	Header	All	Solder	Tin		Shrouded - 4 Wall	85 °C	-40 C	Square	0.116 in	2.95 mm		2

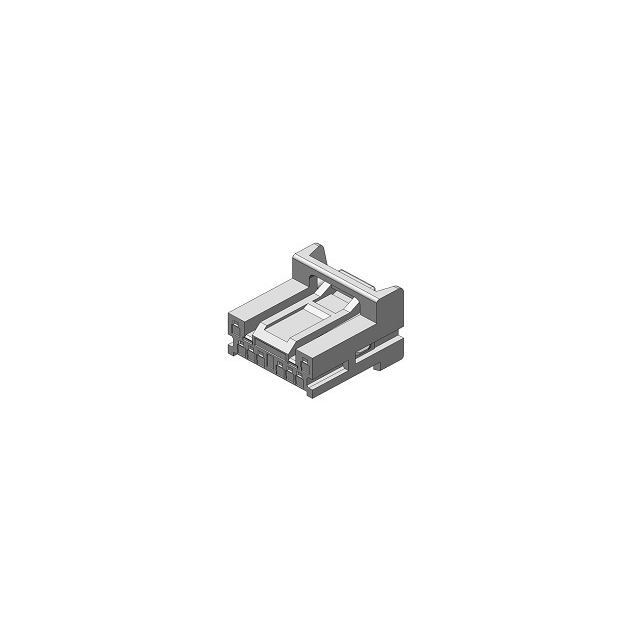

JAE Electronics MX77A008SF1	Female Socket							Polybutylene Terephthalate (PBT)			Free Hanging (In-Line)		Latch Holder		Receptacle				8		85 °C	-40 C					2	Contacts Not Included	Crimp	Black

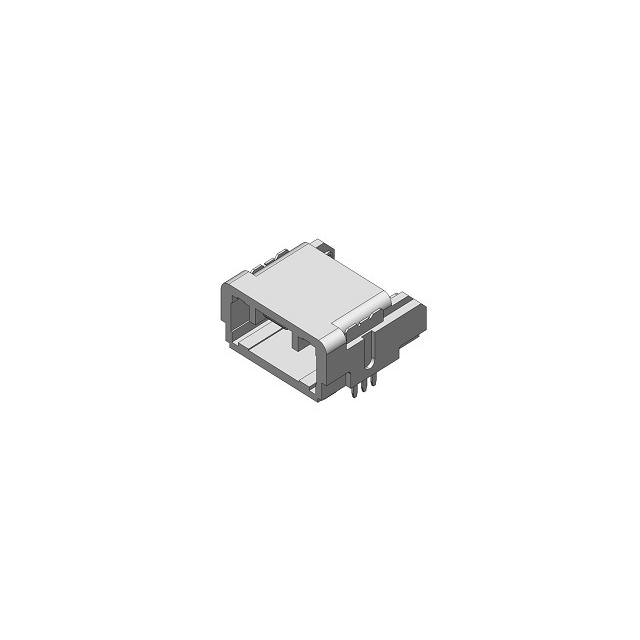

JAE Electronics MX77A008HF1	Male Pin	0.24 in	6.1 mm	Black		9.7 mm	0.382 in	Polyphenylene Sulfide (PPS) Glass Filled	Copper Alloy	Board to Cable/Wire	Right Angle Surface Mount	3 A	Locking Ramp	Solder Retention	Header	All	Solder	Tin	8	Shrouded - 4 Wall	85 °C	-40 C	Square	0.116 in	2.95 mm		2

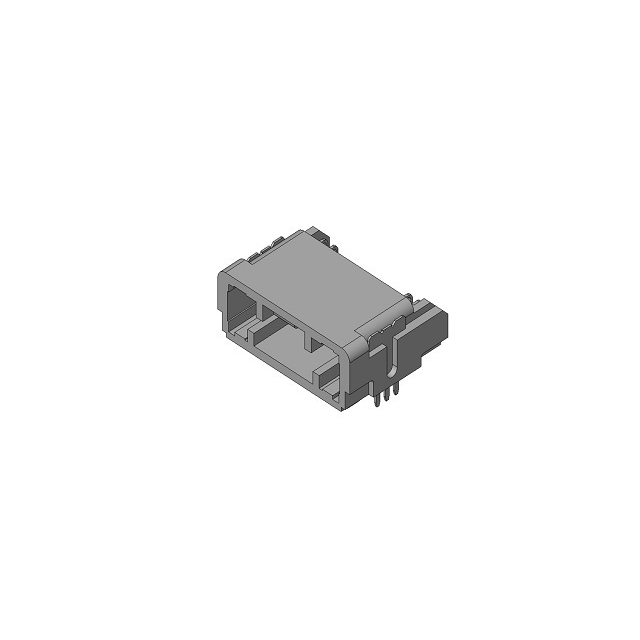

JAE Electronics MX77A012HF1	Male Pin	0.24 in	6.1 mm	Black		9.7 mm	0.382 in	Polyphenylene Sulfide (PPS) Glass Filled	Copper Alloy	Board to Cable/Wire	Right Angle Surface Mount	3 A	Locking Ramp	Solder Retention	Header	All	Solder	Tin	12	Shrouded - 4 Wall	85 °C	-40 C	Square	0.116 in	2.95 mm		2

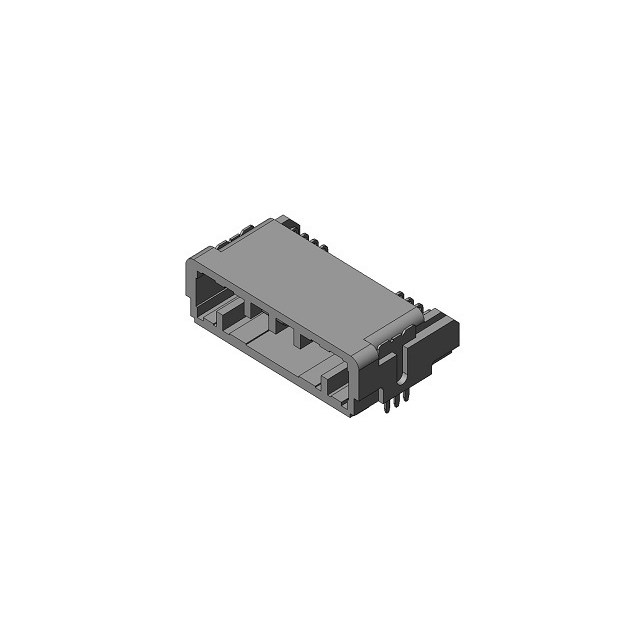

JAE Electronics MX77A020HF1	Male Pin	0.24 in	6.1 mm	Black		9.7 mm	0.382 in	Polyphenylene Sulfide (PPS) Glass Filled	Copper Alloy	Board to Cable/Wire	Right Angle Surface Mount	3 A	Locking Ramp	Solder Retention	Header	All	Solder	Tin	20	Shrouded - 4 Wall	85 °C	-40 C	Square	0.116 in	2.95 mm		2

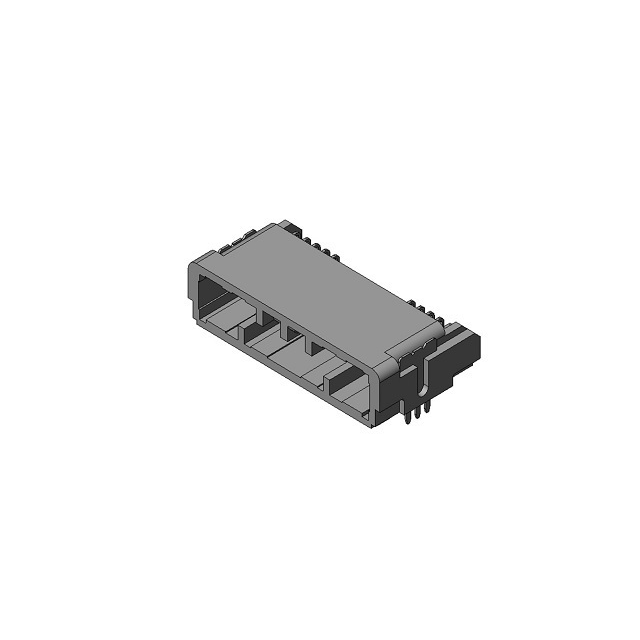

JAE Electronics MX77A024HF1	Male Pin	0.24 in	6.1 mm	Black		9.7 mm	0.382 in	Polyphenylene Sulfide (PPS) Glass Filled	Copper Alloy	Board to Cable/Wire	Right Angle Surface Mount	3 A	Locking Ramp	Solder Retention	Header	All	Solder	Tin	24	Shrouded - 4 Wall	85 °C	-40 C	Square	0.116 in	2.95 mm	UL94 V-0	2
