CLU03Q Series

Catalog

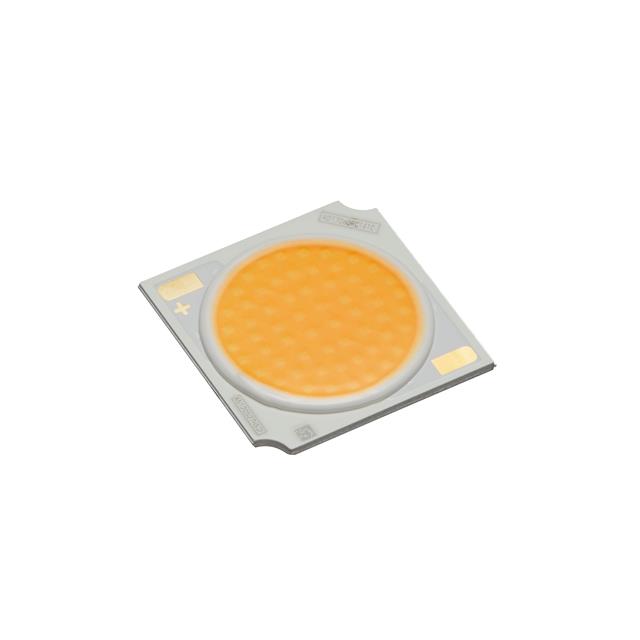

LED COB CLU03Q WARM WHT SQ 2700K

Part	Type	Features	CRI (Color Rendering Index)	Lens Type	Luminous Flux @ Current/Temperature	Size / Dimension [y]	Size / Dimension [x]	CCT (K)	CCT (K)	Temperature - Test	Configuration	Color	Current - Test	Height [z]	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test
Citizen Finedevice Co Ltd CLU03Q-1208E1-272H6X3	Chip On Board (COB)	With Connector	90	Flat	3241 lm	19 mm	19 mm	2-Step MacAdam Ellipse	2700 K	85 °C	Square	Warm White	720 mA	1.4 mm	1.84 A	33.8 V	14.5 mm
Citizen Finedevice Co Ltd CLU03Q-1205E1-302H7X5	Chip On Board (COB)	With Connector	97	Flat	1883 lm	19 mm	19 mm		3000 K	85 °C	Square	Warm White	450 mA	1.4 mm	1.15 A	33.8 V	14.5 mm
Citizen Finedevice Co Ltd CLU03Q-1205E1-302M2X2	Chip On Board (COB)	With Connector	80	Flat	2455 lm	19 mm	19 mm		3000 K	85 °C	Square	Warm White	450 mA	1.4 mm	1.15 A	33.8 V	14.5 mm	161 lm/W
Citizen Finedevice Co Ltd CLU03Q-1208E1-272H7X5	Chip On Board (COB)	With Connector	97	Flat	2994 lm	19 mm	19 mm	2-Step MacAdam Ellipse	2700 K	85 °C	Square	Warm White	720 mA	1.4 mm	1.84 A	33.8 V	14.5 mm	114 lm/W
Citizen Finedevice Co Ltd CLU03Q-1205E1-652M2X2	Chip On Board (COB)	With Connector	80	Flat	2503 lm	19 mm	19 mm		6500 K	85 °C	Square	Cool White	450 mA	1.4 mm	1.15 A	33.8 V	14.5 mm	165 lm/W
Citizen Finedevice Co Ltd CLU03Q-1206E1-352H5X3	Chip On Board (COB)	With Connector	90	Flat	2819 lm	19 mm	19 mm		3500 K	85 °C	Square	Warm White	540 mA	1.4 mm	1.38 A	33.8 V	14.5 mm	143 lm/W
Citizen Finedevice Co Ltd CLU03Q-1206E1-303L7X4	Chip On Board (COB)	With Connector	70	Flat	3431 lm	19 mm	19 mm	3-Step MacAdam Ellipse	3000 K	85 °C	Square	Warm White	540 mA	1.4 mm	1.38 A	33.8 V	14.5 mm	174 lm/W
Citizen Finedevice Co Ltd CLU03Q-1205E1-272H7X5	Chip On Board (COB)	With Connector	97	Flat	1789 lm	19 mm	19 mm	2-Step MacAdam Ellipse	2700 K	85 °C	Square	Warm White	450 mA	1.4 mm	1.15 A	33.8 V	14.5 mm	118 lm/W
Citizen Finedevice Co Ltd CLU03Q-1206E1-572M2X2	Chip On Board (COB)	With Connector	80	Flat	3230 lm	19 mm	19 mm	2-Step MacAdam Ellipse	5700 K	85 °C	Square	Cool White	540 mA	1.4 mm	1.38 A	33.8 V	14.5 mm	164 lm/W
