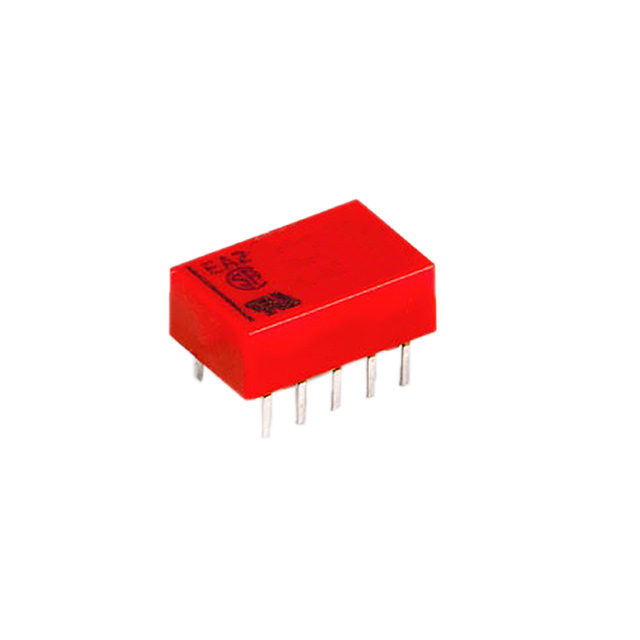

EA2-3N Series
Manufacturer: KEMET
Beta
⌘K
RELAY GENERAL PURPOSE DPDT 1A 3V
| Part | Coil Resistance | Relay Type | Must Release Voltage | Switching Voltage [Max] | Must Operate Voltage | Coil Type | Operate Time | Termination Style | Contact Form | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Approval Agency | Coil Current | Contact Rating (Current) | Mounting Type | Release Time | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | 64.3 Ohms | General Purpose | 0.3 VDC | 220 VDC 250 VAC | 2.25 VDC | Non Latching | 2 ms | PC Pin | DPDT (2 Form C) | 85 °C | -40 C | Gold Alloy Silver Alloy | CSA UR | 46.7 mA | 1 A | Through Hole | 1 ms | 220 W 250 VA |
 KEMET | 64.3 Ohms | General Purpose | 0.3 VDC | 220 VDC 250 VAC | 2.25 VDC | Non Latching | 2 ms | PC Pin | DPDT (2 Form C) | 85 °C | -40 C | Gold Alloy Silver Alloy | CSA UR | 46.7 mA | 1 A | Through Hole | 1 ms | 220 W 250 VA |
