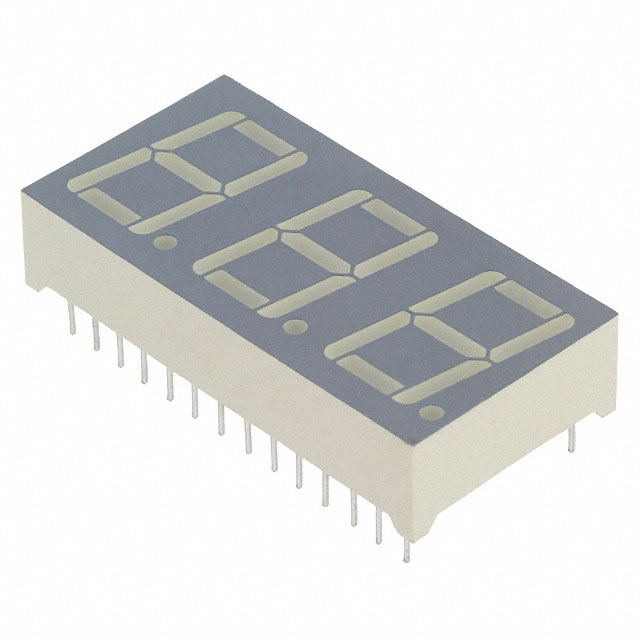

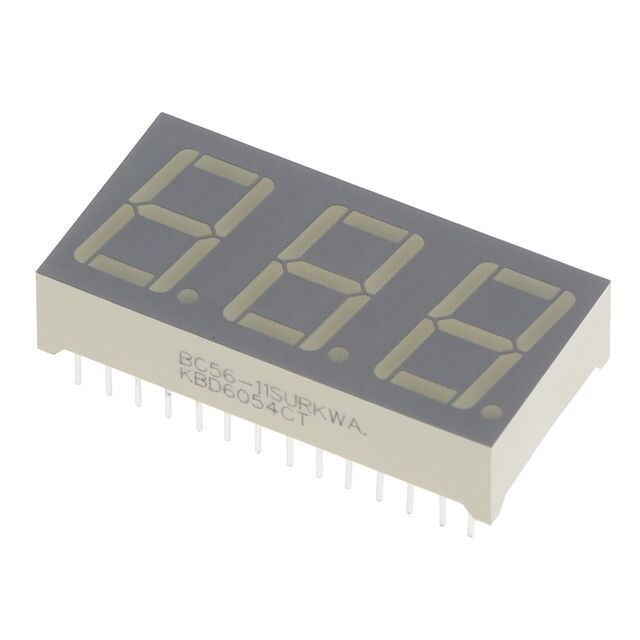

BC56-11 Series
Manufacturer: Kingbright
Beta
⌘K
DISPLAY 7SEG 0.56" TRP GRN 28DIP
| Part | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Forward (Vf) (Typ) | Display Type | Wavelength - Peak | Current - Test | Package / Case | Package / Case | Package / Case | Common Pin | Number of Characters | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Color | Power Dissipation (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | 8.1 mm | 0.319 " | 19 mm | 1.48 in | 37.6 mm | 0.748 in | 2.2 V | 7-Segment | 565 nm | 20 mA | 28-DIP | 15.24 mm | 0.6 in | Common Cathode | 3 | 8.6 mcd | 0.56 in | 14.22 mm | Green | 62.5 mW |
 Kingbright | 8.1 mm | 0.319 " | 19 mm | 1.48 in | 37.6 mm | 0.748 in | 1.95 V | 7-Segment | 645 nm | 20 mA | 28-DIP | 15.24 mm | 0.6 in | Common Cathode | 3 | 73 mcd | 0.56 in | 14.22 mm | Red | 75 mw |
Kingbright | 8.1 mm | 0.319 " | 19 mm | 1.48 in | 37.6 mm | 0.748 in | 1.85 V | 7-Segment | 660 nm | 20 mA | 28-DIP | 15.24 mm | 0.6 in | Common Cathode | 3 | 34 mcd | 0.56 in | 14.22 mm | Red | 75 mw |
 Kingbright | 8.1 mm | 0.319 " | 19 mm | 1.48 in | 37.6 mm | 0.748 in | 2 V | 7-Segment | 627 nm | 20 mA | 28-DIP | 15.24 mm | 0.6 in | Common Cathode | 3 | 5.8 mcd | 0.56 in | 14.22 mm | Red | 75 mw |
