8020.0603 Series
Manufacturer: SCHURTER Inc.
Beta
⌘K
FUSE CERAMIC 12A 250VAC 3AB 3AG
| Part | Melting I˛t | DC Cold Resistance | Current Rating (Amps) | Package / Case [y] | Package / Case [x] | Package / Case | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [diameter] | Response Time | Voltage Rating - AC | Melting I²t | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Breaking Capacity @ Rated Voltage | Fuse Type | Size / Dimension [z] | Size / Dimension [diameter] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

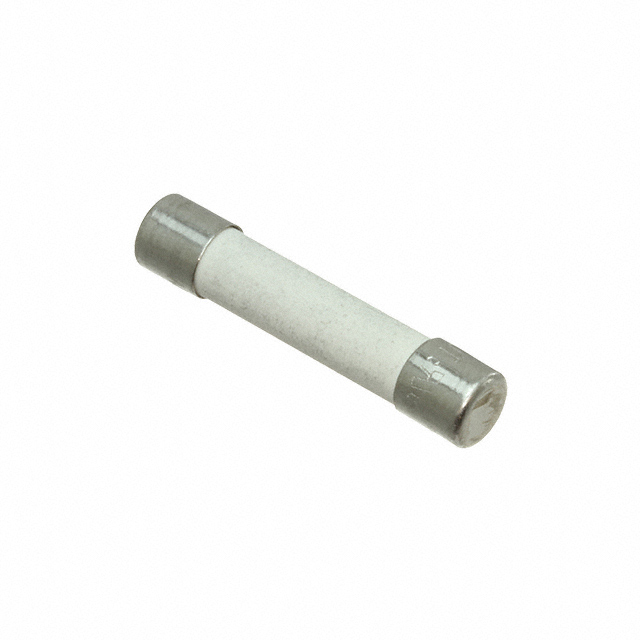

 SCHURTER Inc. | 72 | 0.0056 Ohms | 12 Amps | 0.25 in | 3AB 3AG | 31.8 mm | 1.252 " | 6.35 mm | 0.25 " | Slow Blow | 250 V | 72 | 85 °C | -40 C | Requires Holder | 500 A DC | Cartridge Ceramic | ||||

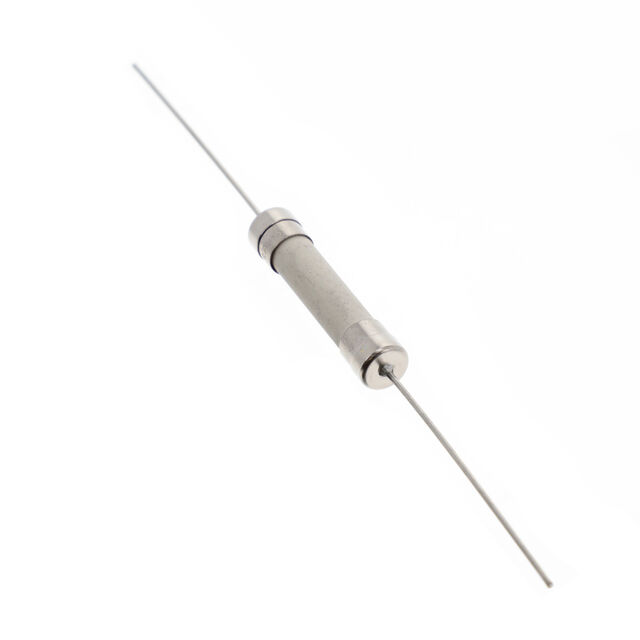

 SCHURTER Inc. | 0.0056 Ohms | 12 Amps | 0.25 " | 3AB 3AG | 6.85 mm | Slow Blow | 250 V | 72 | 85 °C | -40 C | Through Hole | 500 A DC | Cartridge Ceramic | 32.8 mm | 0.27 in | 1.291 in |
