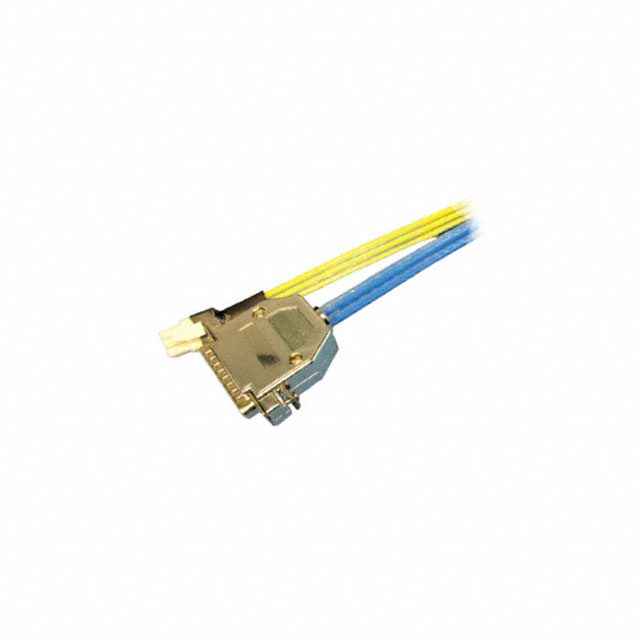

MCZ-1000 Series

Manufacturer: Cicoil

Catalog

CBL ASSY D-SUB 25P M TO MALE 12'

Part	Cable Type	Length	Length	Color	Connector Type	Shielding	Conductor Material	Current Rating (Amps)	Wire Gauge	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Ribbon Thickness	Ribbon Thickness	Jacket (Insulation) Material	Ribbon Width [custom]	Ribbon Width [custom]	Jacket Color	Conductor Strand	Voltage
Cicoil MCZ-1000-2-CA012	Flat	3.66 m	12 ft	Blue Yellow	D-Sub 25 pos Male to Male Rectangular 09 pos Male to Male	Shielded
Cicoil MCZ-1000-2-CA003	Flat	91.44 cm	3 ft	Blue Yellow	D-Sub 25 pos Male to Male Rectangular 09 pos Male to Male	Shielded
Cicoil MCZ-1000-1-CA006	Flat	1.83 m	6 ft	Blue Yellow	D-Sub 25 pos Male to Male Rectangular 09 pos Male to Male	Shielded
Cicoil MCZ-1000-2-025	Flat Cable	7.62 m	25 ft			Shielded	Copper Tinned	8 A	22 AWG 28 AWG	52	-65 ░C	165 °C	9.14 mm	0.36 in	Flexx-Sil™	42.67 mm	1.68 in	Blue Yellow	Solid	450 V
Cicoil MCZ-1000-1-CA003	Flat	91.44 cm	3 ft	Blue Yellow	D-Sub 25 pos Male to Male Rectangular 09 pos Male to Male	Shielded
Cicoil MCZ-1000-1-025	Flat Cable	7.62 m	25 ft			Shielded	Copper Tinned	8 A	22 AWG 28 AWG	26	-65 ░C	165 °C	4.83 mm	0.19 in	Flexx-Sil™	21.34 mm	0.84 in	Blue Yellow	Solid	450 V
Cicoil MCZ-1000-2-CA006	Flat	1.83 m	6 ft	Blue Yellow	D-Sub 25 pos Male to Male Rectangular 09 pos Male to Male	Shielded
Cicoil MCZ-1000-3-CA003	Flat	91.44 cm	3 ft	Blue Yellow	D-Sub 25 pos Male to Male Rectangular 09 pos Male to Male	Shielded
Cicoil MCZ-1000-3-CA012	Flat	3.66 m	12 ft	Blue Yellow	D-Sub 25 pos Male to Male Rectangular 09 pos Male to Male	Shielded
Cicoil MCZ-1000-1-CA012	Flat	3.66 m	12 ft	Blue Yellow	D-Sub 25 pos Male to Male Rectangular 09 pos Male to Male	Shielded
