327735 Series

Catalog

PG SPD 22-16 COMM 22-18 MIL 6 ROHS COMPLIANT: YES

Part	Contact Finish	Color	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]	Wire Gauge [Max]	Wire Gauge [Min]	Stud/Tab Size	Insulation	Terminal Type	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Contact Material	Length - Termination	Length - Termination	Mounting Type	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Termination	Features	Tongue Inside Opening [x]	Tongue Inside Opening [x]

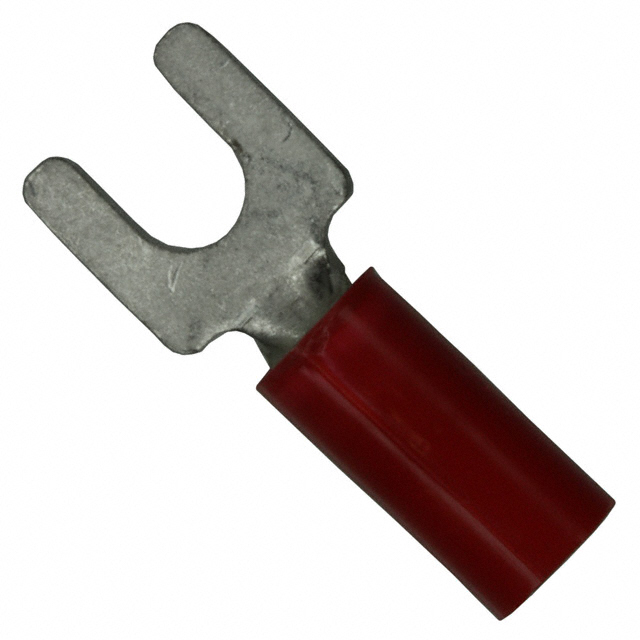

TE Connectivity Raychem Cable Protection 2-327735-1	Tin	Red	0.203 in	5.16 mm	0.297 in	7.54 mm	22 AWG	16 AWG	6 Stud	Insulated	Standard	Poly-Vinyl Chloride (PVC)	19.43 mm	0.765 in	Copper	10.57 mm	0.416 in	Free Hanging (In-Line)	2.03 mm	3.18 mm	0.125 "	0.08 in	Crimp	Serrated Termination	3.68 mm	0.145 in
