745-116 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 116POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Read Out	Contact Type	Gender	Number of Rows [custom]	Pitch	Pitch	Mounting Type	Card Type	Contact Material	Color	Card Thickness [Max]	Card Thickness [Min]	Termination	Number of Positions/Bay/Row	Number of Positions	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]

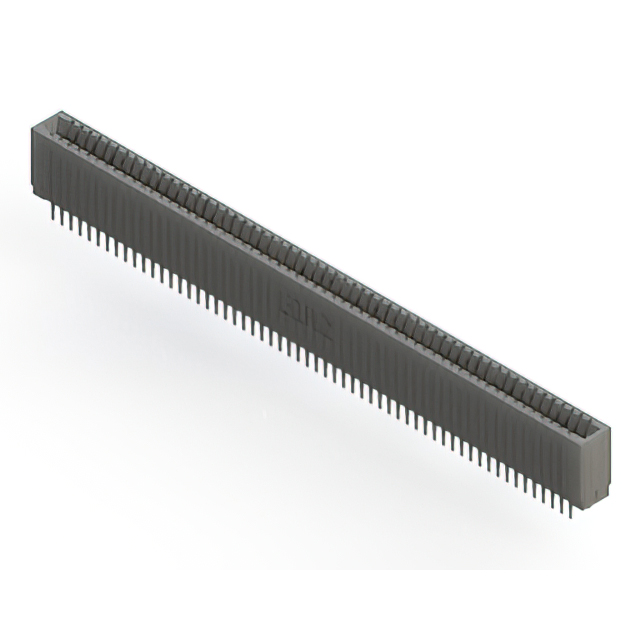

EDAC Inc. 745-116-525-201	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	58	116	Gold	-40 C	105 ░C
EDAC Inc. 745-116-522-201	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	58	116	Gold	-40 C	105 ░C
EDAC Inc. 745-116-545-206	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	58	116	Gold	-40 C	105 ░C
EDAC Inc. 745-116-525-206	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	58	116	Gold	-40 C	105 ░C
EDAC Inc. 745-116-560-206	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever Make Before Break	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	58	116	Gold	-40 C	105 ░C
EDAC Inc. 745-116-545-201	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	58	116	Gold	-40 C	105 ░C

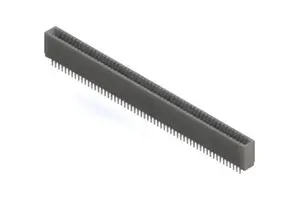

EDAC Inc. 745-116-520-201	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	58	116	Gold	-40 C	105 ░C
EDAC Inc. 745-116-540-201	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	58	116	Gold	-40 C	105 ░C
EDAC Inc. 745-116-560-201	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever Make Before Break	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit	58	116	Gold	-40 C	105 ░C
EDAC Inc. 745-116-540-206	2	Polyester Thermoplastic	30 Áin	0.76 Ám	Dual	Cantilever	Female	2	0.1 "	2.54 mm	Through Hole	Non Specified - Dual Edge	Copper Alloy	Black	0.07 in 1.78 mm	0.054 in 1.37 mm	Press-Fit Wire Wrap	58	116	Gold	-40 C	105 ░C
