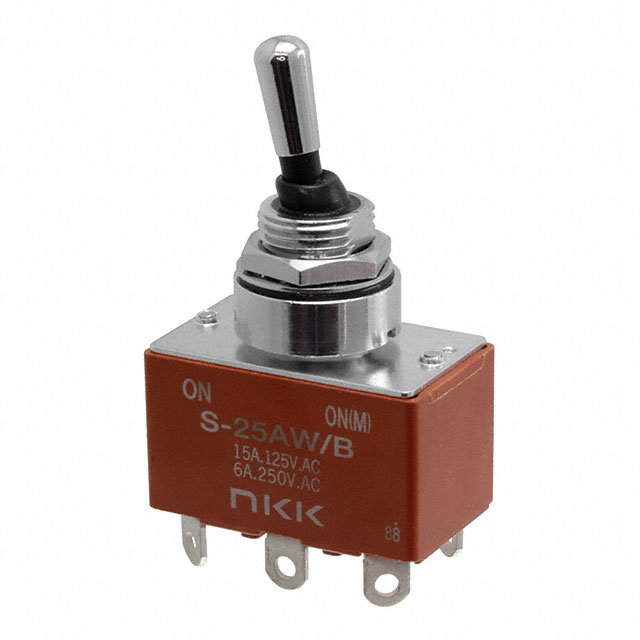

S25AW Series
Manufacturer: NKK Switches
Beta
⌘K
TOGGLE SWITCH, IP68, ON-NONE-(ON), DPDT, NON ILLUMINATED, S SERIES, 20 A, PANEL MOUNT
| Part | Electrical Life | Actuator Type | Circuit | Mounting Type | Ingress Protection | Actuator Length [x] | Bushing Thread | Termination Style | Panel Cutout Dimensions [diameter] | Switch Function | Features | Operating Temperature [Min] | Operating Temperature [Max] | Illumination | Voltage Rating - DC | Voltage Rating - AC | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Standard Round | DPDT | Panel Mount | IP68 - Dust Tight Waterproof | 17.5 mm | M12 x 1 | Solder Lug | 12.5 mm | On-Mom | Waterproof Boot | -30 ░C | 70 °C | Non-Illuminated | 30 V | 125 V | 15 A 20 A |
