EZM10 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

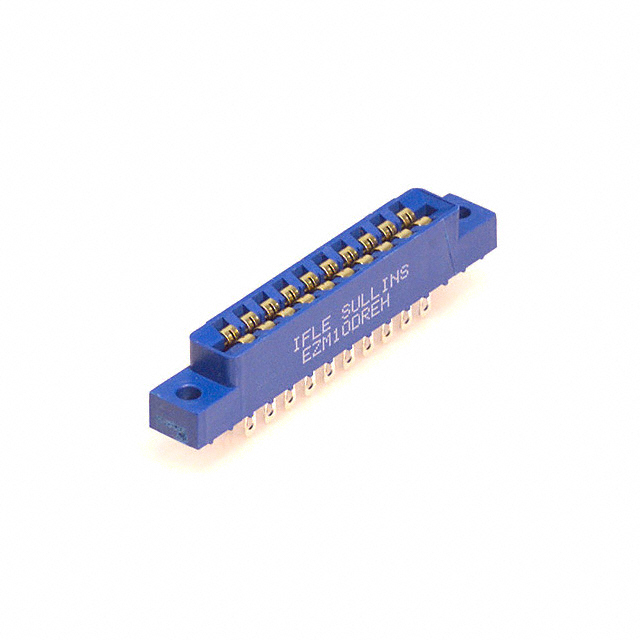

CONN EDGE DUAL FMALE 20POS 0.156
| Part | Card Thickness | Card Thickness | Number of Rows | Number of Positions/Bay/Row [custom] | Contact Material | Contact Type | Termination | Read Out | Material - Insulation | Gender | Color | Flange Feature [diameter] | Flange Feature [diameter] | Flange Feature | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | 0.062 in | 1.57 mm | 2 | 10 | Phosphor Bronze | Full Bellows | Solder Eyelet(s) | Dual | Polybutylene Terephthalate (PBT) | Female | Blue | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | 125 °C | -65 ░C | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 20 | 10 Áin | 0.25 Ám | Gold | |
 Sullins Connector Solutions | 0.062 in | 1.57 mm | 2 | 10 | Phosphor Bronze | Full Bellows | Solder | Dual | Polybutylene Terephthalate (PBT) | Female | Blue | 0.125 in | 3.18 mm | Top Mount Opening Unthreaded | 125 °C | -65 ░C | Non Specified - Dual Edge | 0.156 in | 3.96 mm | 20 | 10 Áin | 0.25 Ám | Gold | Through Hole |
