726-058 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SGL FMALE 58POS 0.125

Part	Termination Rows	Material - Insulation	Number of Rows	Contact Finish	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Color	Card Type	Read Out	Mounting Type	Contact Material	Gender	Contact Type	Number of Positions	Pitch	Pitch	Contact Finish Thickness	Contact Finish Thickness	Termination Rows [custom]	Number of Rows [custom]
EDAC Inc. 726-058-541-101	1	Polyester Thermoplastic	1	Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	58	Black	Non Specified - Single Edge	Single	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám
EDAC Inc. 726-058-541-201		Polyester Thermoplastic		Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	29	Black	Non Specified - Dual Edge	Dual	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám	2	2

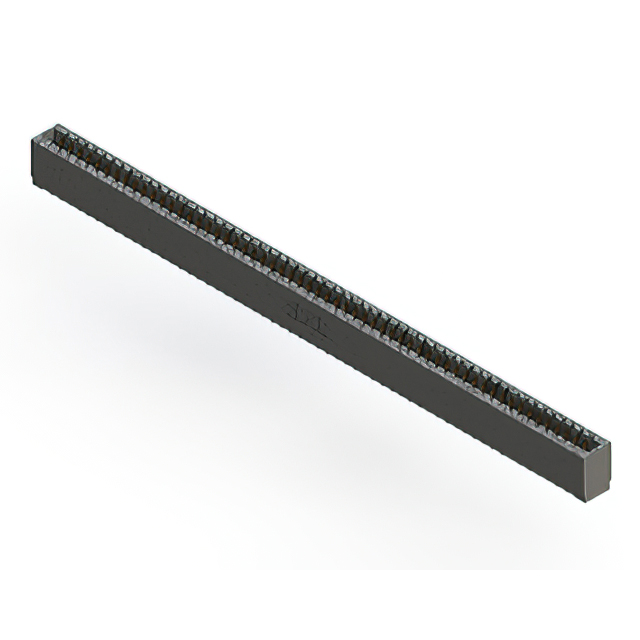

EDAC Inc. 726-058-525-101	1	Polyester Thermoplastic	1	Gold	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	58	Black	Non Specified - Single Edge	Single	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám
EDAC Inc. 726-058-545-101	1	Polyester Thermoplastic	1	Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	58	Black	Non Specified - Single Edge	Single	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám
EDAC Inc. 726-058-540-101	1	Polyester Thermoplastic	1	Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	58	Black	Non Specified - Single Edge	Single	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám
EDAC Inc. 726-058-520-201		Polyester Thermoplastic		Gold	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	29	Black	Non Specified - Dual Edge	Dual	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám	2	2
EDAC Inc. 726-058-545-201		Polyester Thermoplastic		Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	29	Black	Non Specified - Dual Edge	Dual	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám	2	2
EDAC Inc. 726-058-527-101	1	Polyester Thermoplastic	1	Gold	Press-Fit	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	58	Black	Non Specified - Single Edge	Single	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám

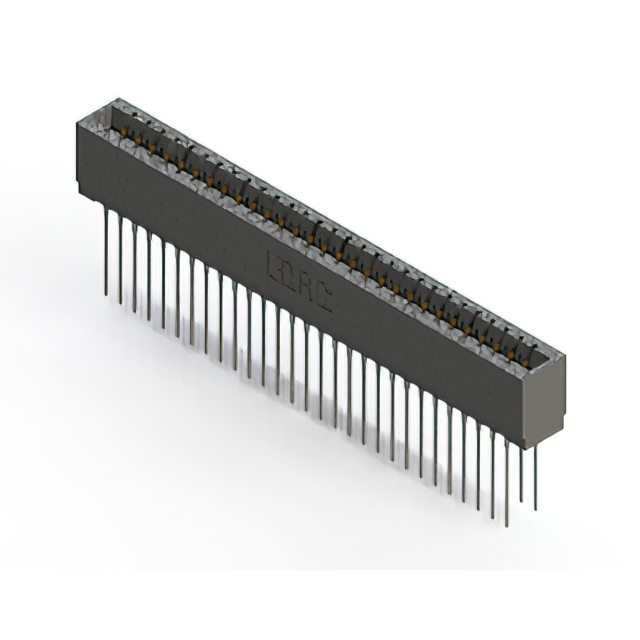

EDAC Inc. 726-058-553-201		Polyester Thermoplastic		Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	29	Black	Non Specified - Dual Edge	Dual	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám	2	2
EDAC Inc. 726-058-540-201		Polyester Thermoplastic		Gold	Press-Fit Wire Wrap	-40 C	105 ░C	0.07 in 1.78 mm	0.054 in 1.37 mm	29	Black	Non Specified - Dual Edge	Dual	Through Hole	Copper Alloy	Female	Cantilever	58	3.18 mm	0.125 in	30 Áin	0.76 Ám	2	2
