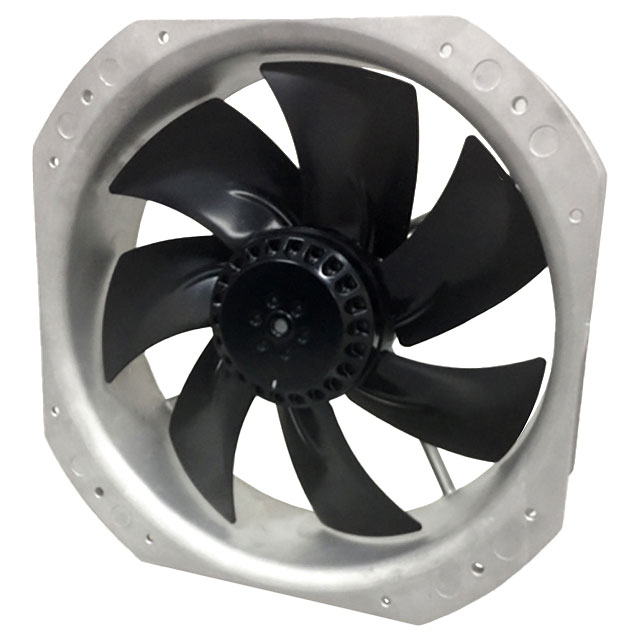

OA280AN Series
Manufacturer: Orion Fans
Beta
⌘K
AC FAN BALL BEARING 115V 148W 50HZ/60HZ 2700RPM 1130CFM 70DB FLANGE MOUNT
| Part | Bearing Type | Material - Blade | RPM | Air Flow | Air Flow | Size / Dimension [x] | Size / Dimension [y] | Static Pressure | Static Pressure | Lifetime @ Temp. | Features | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Weight | Weight | Material - Frame | Voltage Range [Min] | Voltage Range [Max] | Width [y] | Fan Type | Termination | Voltage - Rated | Ingress Protection | Approval Agency | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Orion Fans | Ball | Metal | 2700 RPM | 1130 CFM | 31.64 m³/min | 280 mm | 280 mm | 194.3 Pa | 0.78 in H2O | 40000 Hrs | Capacitor Thermal Overload Protector (TOP) | 80 °C | -40 °C | -40 °C | 80 C | 1.5 A | 6.2 lbs | 2.8 kg | Aluminum | 100 VAC | 125 VAC | 80 mm | Tubeaxial | Terminal Block | 115 VAC | IP55 - Dust Protected Water Resistant | cURus TUV | 148 W |
 Orion Fans | Ball | Metal | 2700 RPM | 1130 CFM | 31.64 m³/min | 280 mm | 280 mm | 194.3 Pa | 0.78 in H2O | 40000 Hrs | Capacitor Thermal Overload Protector (TOP) | 80 °C | -40 °C | -40 °C | 80 C | 0.82 A | 6.2 lbs | 2.8 kg | Aluminum | 80 mm | Tubeaxial | Terminal Block | 230 VAC | IP55 - Dust Protected Water Resistant | cURus TUV | 158 W |
