M22-221 Series
Manufacturer: Harwin Inc.
Beta
⌘K

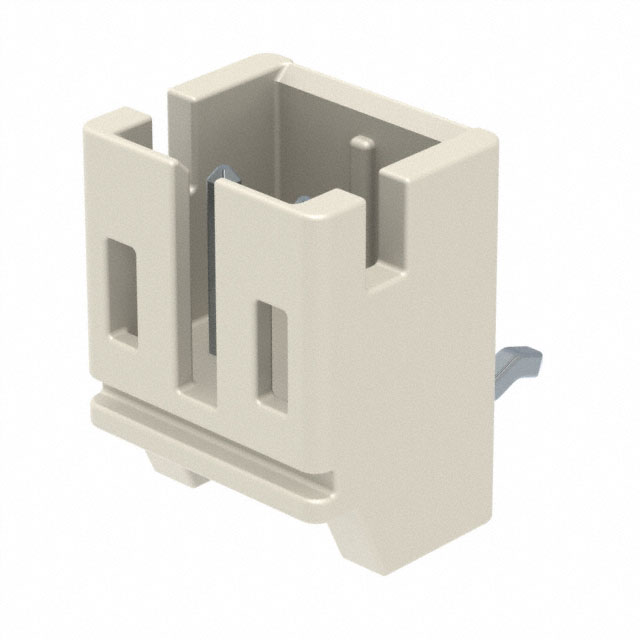

CONN HEADER R/A 2POS 2MM
| Part | Fastening Type | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish - Post | Connector Type | Voltage Rating | Insulation Color | Termination | Current Rating (Amps) | Number of Positions | Insulation Height [custom] | Insulation Height [custom] | Pitch - Mating | Pitch - Mating | Contact Length - Post [x] | Contact Length - Post | Shrouding | Number of Positions Loaded | Contact Material | Contact Shape | Style | Contact Type | Material Flammability Rating | Insulation Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | Detent Lock | 1 | 85 °C | -25 °C | Tin | Header | 100 V | Natural | Kinked Pin Solder | 2 A | 2 | 0.195 in | 4.95 mm | 0.079 " | 2 mm | 0.134 " | 3.4 mm | Shrouded - 4 Wall | All | Brass | Square | Board to Cable/Wire | Male Pin | UL94 V-0 | Nylon 6T Polyamide (PA6T) | Right Angle Through Hole |
