M2T25SA Series

Catalog

SWITCH TOGGLE DPDT 0.4VA 28V

Part	Electrical Life	Actuator Material	Circuit	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Illumination	Features	Voltage Rating - DC	Termination Style	Actuator Length [x]	Actuator Type	Current Rating (Amps)	Bushing Thread	Voltage Rating - AC	Mounting Type

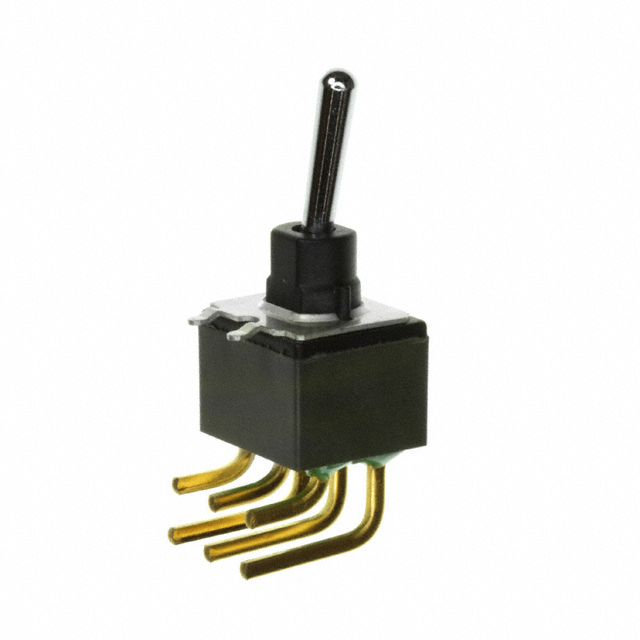

NKK Switches M2T25SA5G30	50000 Cycles	Brass Nickel Plated	DPDT	On-Mom	85 °C	-30 ░C	Non-Illuminated	Process Sealed	28 V	PC Pin	0.5 in	Standard Round	0.4 VA	Unthreaded	28 V	Right Angle Through Hole
NKK Switches M2T25SA5G03	50000 Cycles	Brass Nickel Plated	DPDT	On-Mom	85 °C	-30 ░C	Non-Illuminated	Process Sealed	28 V	PC Pin	0.5 in	Standard Round	0.4 VA	Unthreaded	28 V	Through Hole
NKK Switches M2T25SA5W03	25000 Steps	Brass Nickel Plated	DPDT	On-Mom	85 °C	-30 ░C	Non-Illuminated	Process Sealed	28 V	PC Pin	0.5 in	Standard Round	0.4 VA	Unthreaded	28 V	Through Hole
