PJB-24 Series

Catalog

AC/DC CONVERTER 24V 150W

Part	Current - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Efficiency	Type	Applications	Voltage - Isolation	Number of Outputs	Power (Watts)	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Approval Agency	Features

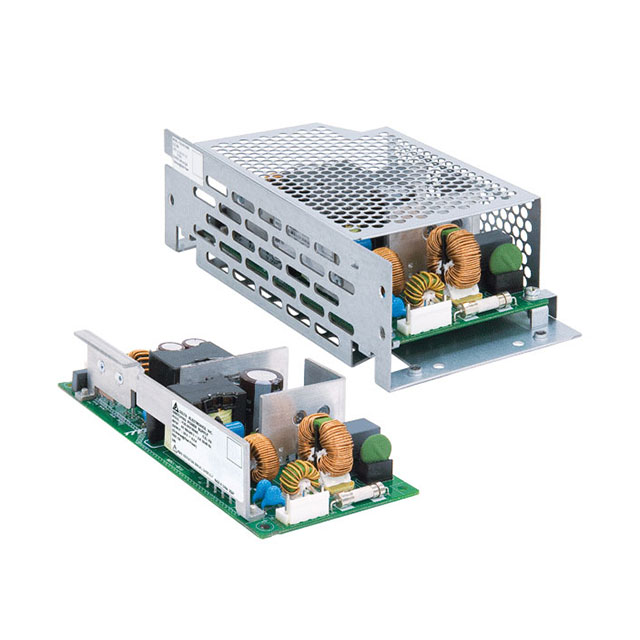

Delta Electronics PJB-24V150WLNA	6.3 A	7.4 in	85 mm	47 mm	3.35 in	1.85 in	188 mm	90.5 %	Open Frame	ITE (Commercial)	3000 V	1	150 W	Chassis Mount	70 °C	-10 °C	24 V	CB CE cURus TUV	Adjustable Output PFC Universal Input

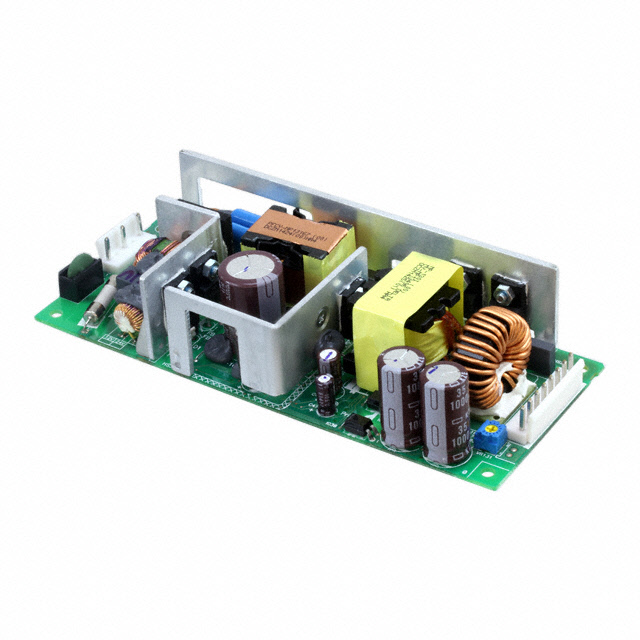

Delta Electronics PJB-24V100WBNA	4.3 A	7.28 in	72 mm	45 mm	2.83 "	1.77 in	185 mm	89 %	Open Frame Conformal Coated	ITE (Commercial)	3000 V	1	100 W	Chassis Mount	70 °C	-10 °C	24 V	CB CE cURus TUV	Adjustable Output PFC Universal Input

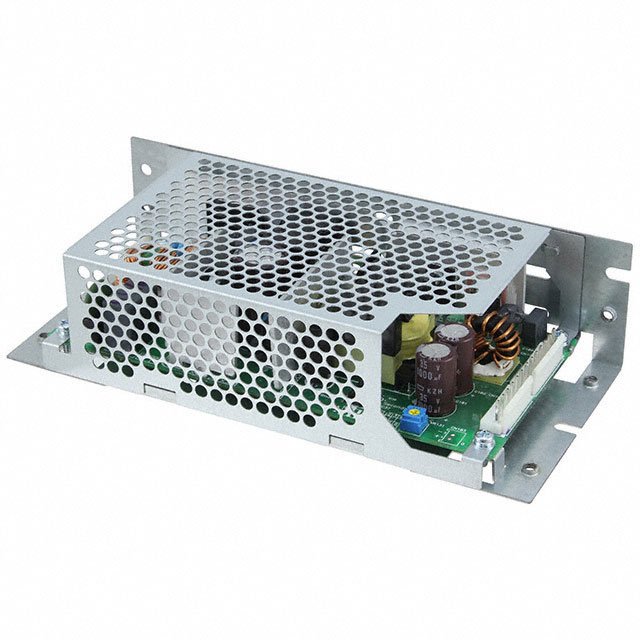

Delta Electronics PJB-24V150WCNA	6.3 A	7.4 in	85 mm	47 mm	3.35 in	1.85 in	188 mm	90.5 %	Conformal Coated Enclosed	ITE (Commercial)	3000 V	1	150 W	Chassis Mount	70 °C	-10 °C	24 V	CB CE cURus TUV	Adjustable Output PFC Universal Input
Delta Electronics PJB-24V100WBRA	4.3 A	6.1 "	62 mm	33 mm	2.44 "	1.3 in	155 mm	89 %	Open Frame	ITE (Commercial)	3000 V	1	100 W	Chassis Mount	70 °C	-10 °C	24 V	CB CE cURus TUV	Adjustable Output PFC Remote On/Off Universal Input

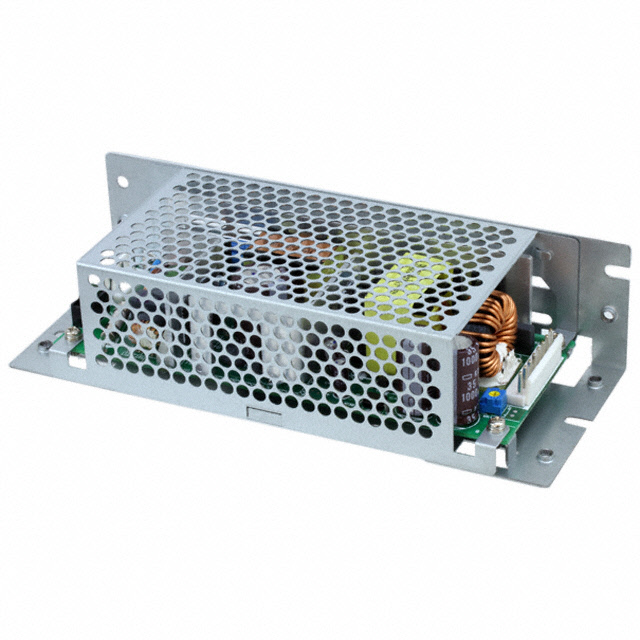

Delta Electronics PJB-24V100WCNA	4.3 A	7.28 in	72 mm	45 mm	2.83 "	1.77 in	185 mm	89 %	Conformal Coated Enclosed	ITE (Commercial)	3000 V	1	100 W	Chassis Mount	70 °C	-10 °C	24 V	CB CE cURus TUV	Adjustable Output PFC Universal Input

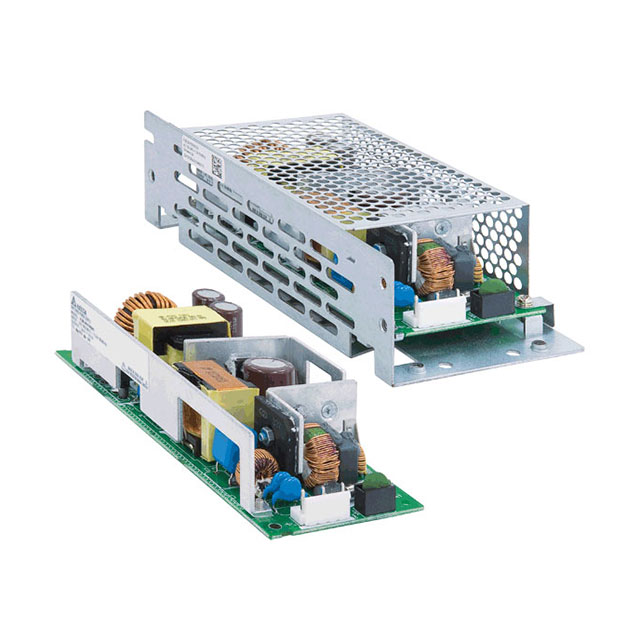

Delta Electronics PJB-24V100WLNA	4.3 A	7.28 in	72 mm	45 mm	2.83 "	1.77 in	185 mm	89 %	Open Frame	ITE (Commercial)	3000 V	1	100 W	Chassis Mount	70 °C	-10 °C	24 V	CB CE cURus TUV	Adjustable Output PFC Universal Input

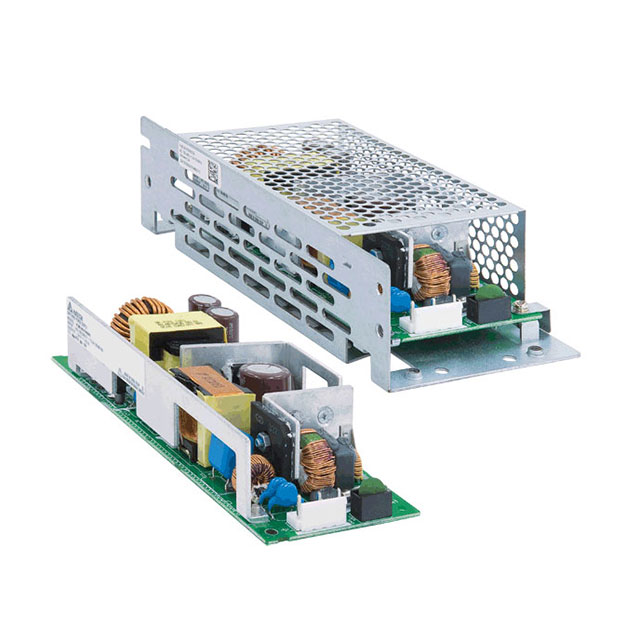

Delta Electronics PJB-24V100WLRA	4.3 A	7.28 in	72 mm	45 mm	2.83 "	1.77 in	185 mm	89 %	Open Frame	ITE (Commercial)	3000 V	1	100 W	Chassis Mount	70 °C	-10 °C	24 V	CB CE cURus TUV	Adjustable Output PFC Remote On/Off Universal Input

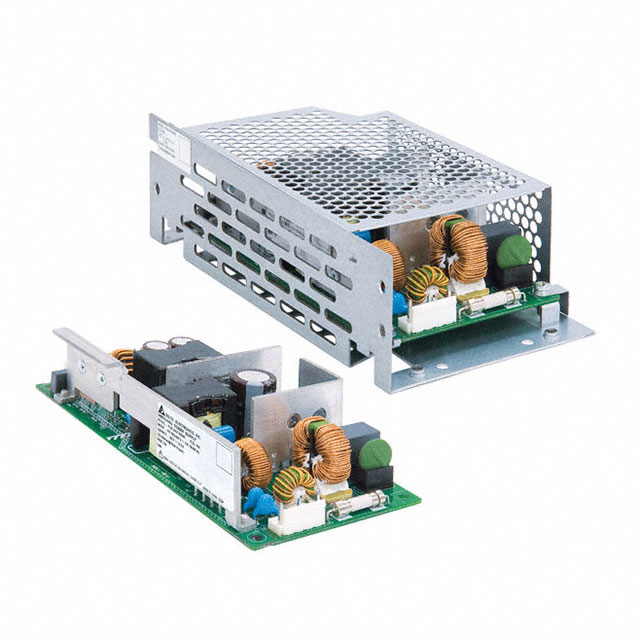

Delta Electronics PJB-24V150WCRA	6.3 A	7.4 in	85 mm	47 mm	3.35 in	1.85 in	188 mm	90.5 %	Enclosed	ITE (Commercial)	3000 V	1	150 W	Chassis Mount	70 °C	-10 °C	24 V	CB CE cURus TUV
