ECQ-UAAF104 Series

Catalog

CAP FILM 0.1UF 10% 275VAC RADIAL

Part	Tolerance	Capacitance	Dielectric Material	Ratings	Voltage Rating - AC	Termination	Mounting Type	Applications	Package / Case	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

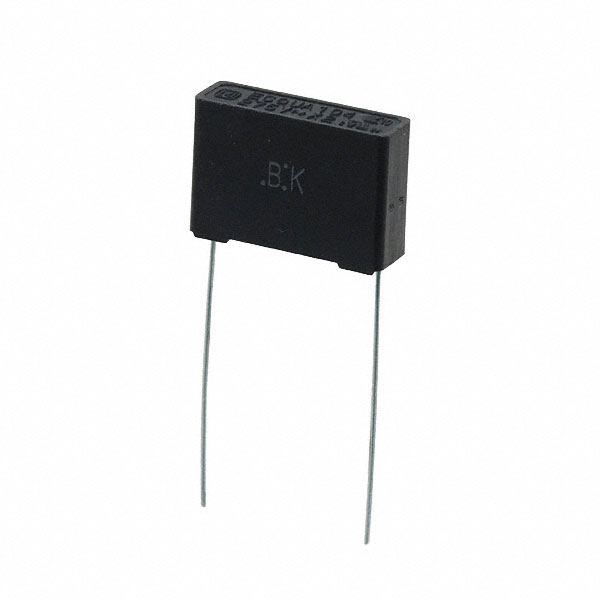

Panasonic Electronic Components ECQ-UAAF104K	10 %	100000 pF	Polypropylene (PP) Metallized	X2	275 V	PC Pins	Through Hole	EMI RFI Suppression	Radial	15 mm	0.591 in	-40 C	110 °C	0.197 "	0.689 in	5 mm	17.5 mm	0.492 in	12.5 mm

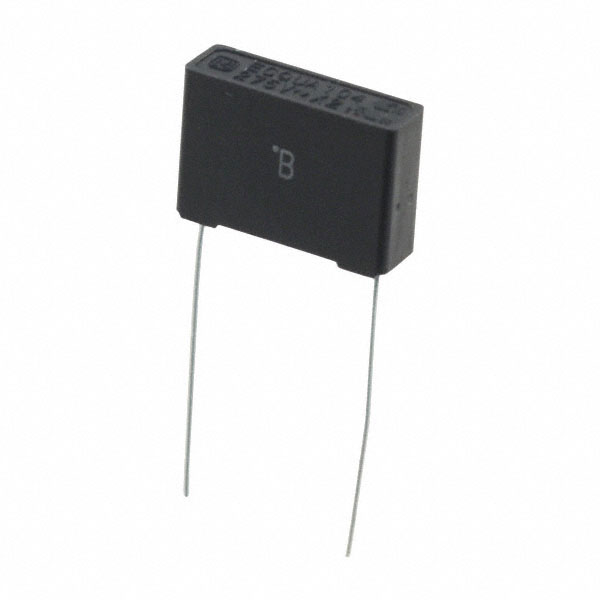

Panasonic Electronic Components ECQ-UAAF104M	20 %	100000 pF	Polypropylene (PP) Metallized	X2	275 V	PC Pins	Through Hole	EMI RFI Suppression	Radial	15 mm	0.591 in	-40 C	110 °C	0.197 "	0.689 in	5 mm	17.5 mm	0.492 in	12.5 mm
