3137-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

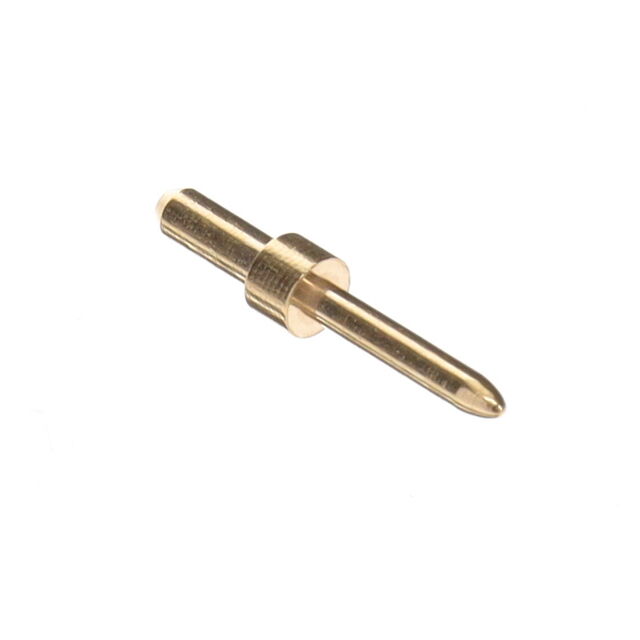

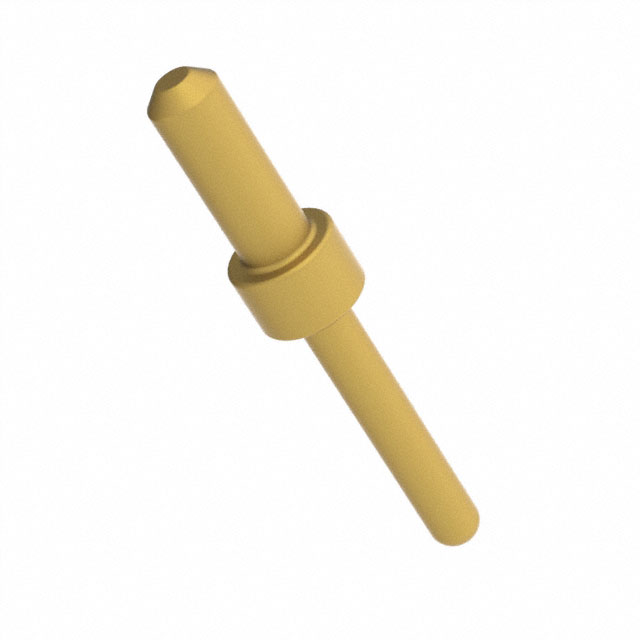

CONN PC PIN CIRC .030DIA GOLD
| Part | Length - Below Flange [x] | Length - Below Flange [x] | Mounting Type | Termination | Insulation | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Above Flange | Length - Above Flange | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Board Thickness [custom] | Board Thickness [custom] | Contact Material | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.18 " | 4.57 mm | Through Hole | Solder | Non-Insulated | Gold | 0.25 Ám | 10 Áin | Double End | 1.57 mm | 0.062 in | 0.11 in | 2.79 mm | 0.043 in | 1.09 mm | 8.38 mm | 0.33 in | 0.04 in | 1.02 mm | 0.03 in | 0.76 mm | 0.094 in | 2.39 mm | Brass Alloy | PC Pin |
 Mill-Max Manufacturing Corp. | 0.18 " | 4.57 mm | Through Hole | Solder | Non-Insulated | Gold | 0.51 µm | 20 µin | Double End | 1.57 mm | 0.062 in | 0.11 in | 2.79 mm | 0.043 in | 1.09 mm | 8.38 mm | 0.33 in | 0.04 in | 1.02 mm | 0.03 in | 0.76 mm | 0.094 in | 2.39 mm | Brass Alloy | PC Pin |
 Mill-Max Manufacturing Corp. | 0.18 " | 4.57 mm | Through Hole | Solder | Non-Insulated | Gold | 1.27 µm | 50 µin | Double End | 1.57 mm | 0.062 in | 0.11 in | 2.79 mm | 0.043 in | 1.09 mm | 8.38 mm | 0.33 in | 0.04 in | 1.02 mm | 0.03 in | 0.76 mm | 0.094 in | 2.39 mm | Brass Alloy | PC Pin |
