CC-1-3056 Series

Catalog

PMI DIA .319" (8.10MM) RED 60V

Part	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Size	Lens Size	Millicandela Rating	Lens Style	Wavelength - Peak	Viewing Angle	Lamp Color	Current	Termination Style	Lens Color	Ratings	Type	Panel Cutout Shape
Visual Communications Company - VCC CC-1-3056-9914-I	1.9 V 60 V	0.32 "	8.1 mm	5 mm	T-1 3/4	400 mcd	Round with Domed Top	660 nm	30 °	Red	20 mA	Wire Leads - 6.000" (152.40mm)	Red	DC	LED	Round
Visual Communications Company - VCC CC-1-3056-9920-I	1.9 V 120 V	0.32 "	8.1 mm	5 mm	T-1 3/4	400 mcd	Round with Domed Top	660 nm	30 °	Red	20 mA	Wire Leads - 6.000" (152.40mm)	Red	AC	LED	Round

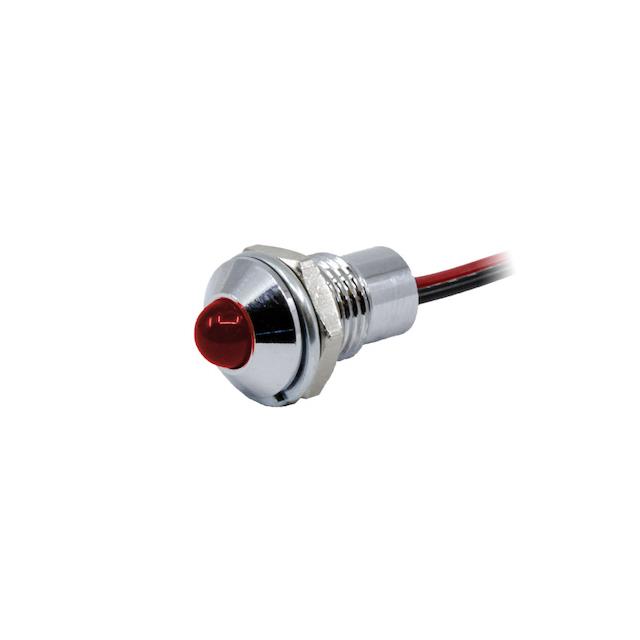

Visual Communications Company - VCC CC-1-3056-0000-I	1.9 V	0.32 "	8.1 mm	5 mm	T-1 3/4	400 mcd	Round with Domed Top	660 nm	30 °	Red	20 mA	Wire Leads - 6.000" (152.40mm)	Red		LED	Round
Visual Communications Company - VCC CC-1-3056-9907-I	1.9 V 5 V	0.32 "	8.1 mm	5 mm	T-1 3/4	400 mcd	Round with Domed Top	660 nm	30 °	Red	20 mA	Wire Leads - 6.000" (152.40mm)	Red	DC	LED	Round
Visual Communications Company - VCC CC-1-3056-9910-I	1.9 V 24 V	0.32 "	8.1 mm	5 mm	T-1 3/4	400 mcd	Round with Domed Top	660 nm	30 °	Red	20 mA	Wire Leads - 6.000" (152.40mm)	Red	DC	LED	Round
Visual Communications Company - VCC CC-1-3056-9912-I	1.9 V 48 V	0.32 "	8.1 mm	5 mm	T-1 3/4	400 mcd	Round with Domed Top	660 nm	30 °	Red	20 mA	Wire Leads - 6.000" (152.40mm)	Red	DC	LED	Round
Visual Communications Company - VCC CC-1-3056-9908-I	1.9 V 12 V	0.32 "	8.1 mm	5 mm	T-1 3/4	400 mcd	Round with Domed Top	660 nm	30 °	Red	20 mA	Wire Leads - 6.000" (152.40mm)	Red	DC	LED	Round
