XLG-240 Series

Catalog

240W LED POWER SUPPLY O/P +178~

Part	Mounting Type	Efficiency	Type	Ratings	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Features	Dimming	Termination Style	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Voltage - Output [Min]	Voltage - Output [Max]	Voltage - Isolation	Number of Outputs	Power (Watts)	Topology

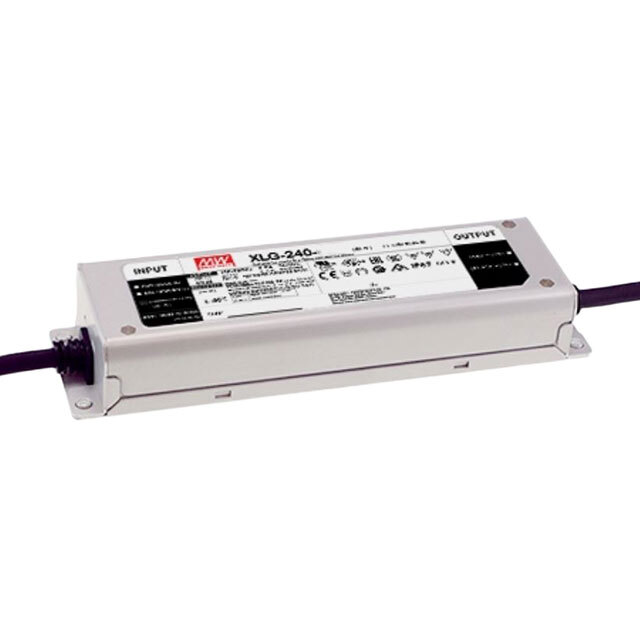

MEAN WELL USA Inc. XLG-240-L-AB	Chassis Mount	93 %	Constant Current	IP67	CB CCC CE cURus EAC ENEC RCM	90 °C	-40 C	700 mA	OTP OVP SCP	Analog PWM	Wire Leads	305 VAC	63 mm	35.5 mm	1.4 "	7.68 in	2.48 in	195 mm	100 VAC	178 V	342 V	3750 VDC	1	239 W	AC DC Converter
