LM3509 Series
Manufacturer: Texas Instruments
Beta
⌘K

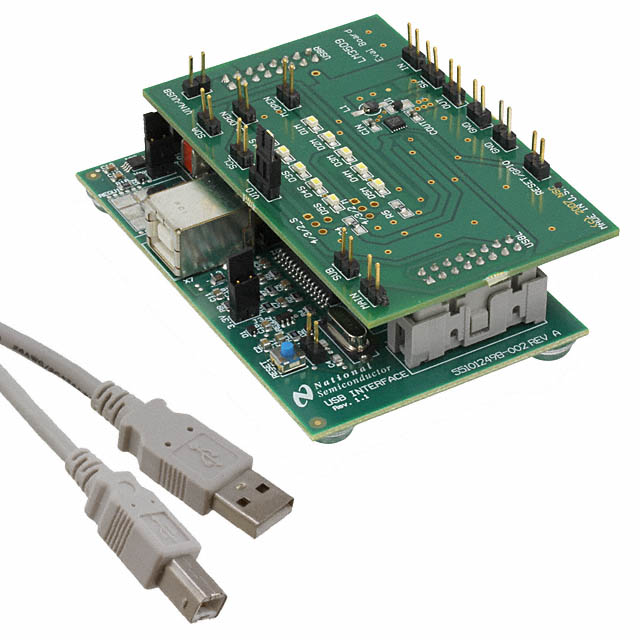

LM3509SD LED DRIVER EVALUATION BOARD
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Number of Outputs | Package / Case | Frequency | Current - Output / Channel | Applications | Voltage - Supply (Max) | Mounting Type | Dimming | Internal Switch(s) | Voltage - Output | Topology | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | |||||||||||||||
 Texas Instruments | 85 °C | -40 °C | 10-SON (3x3) | 2 | 10-WFDFN Exposed Pad | 1.27 MHz | 30 mA | Backlight | 5.5 V | Surface Mount | I2C | 21 V | Step-Up (Boost) | DC DC Regulator | |
 Texas Instruments | 85 °C | -40 °C | 10-SON (3x3) | 2 | 10-WFDFN Exposed Pad | 1.27 MHz | 30 mA | Backlight | 5.5 V | Surface Mount | I2C | 21 V | Step-Up (Boost) | DC DC Regulator |
