BAV21 Series

Catalog

SOD 323 / 200MWATTS / 250V /SWITCHING DIODES

Part	Speed	Speed	Package / Case	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Grade	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Qualification	Voltage - Forward (Vf) (Max) @ If	Mounting Type	Supplier Device Package	Current - Reverse Leakage @ Vr	Reverse Recovery Time (trr)	Current - Average Rectified (Io)	Technology
Panjit International Inc. BAV21WS-AU_R1_000A1	200 mA	Any Speed	SC-90 SOD-323F	-55 °C	150 °C	Automotive	5 pF	200 V	AEC-Q101	1 V	Surface Mount	SOD-323	100 nA	50 ns	200 mA	Standard
Panjit International Inc. BAV21W_R1_00001	200 mA	Any Speed	SOD-123	-55 °C	150 °C		5 pF	200 V		1 V	Surface Mount	SOD-123	100 nA	50 ns	200 mA	Standard
Panjit International Inc. BAV21WS_R1_00001	200 mA	Any Speed	SC-90 SOD-323F	-55 °C	150 °C		5 pF	200 V		1 V	Surface Mount	SOD-323	100 nA	50 ns	200 mA	Standard

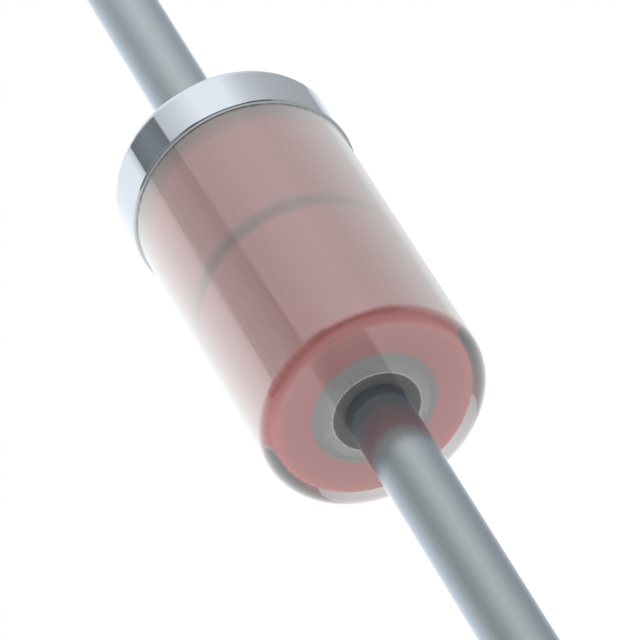

Panjit International Inc. BAV21_AY_00001	200 mA	Any Speed	Axial DO-204AH DO-35	-55 °C	150 °C		3 pF	200 V		1 V	Through Hole	DO-35	100 nA	50 ns	200 mA	Standard
