SSI-RM3091 Series

Catalog

LED 3MM SUP GREEN REAR PANEL MNT

Part	Lens Color	Panel Cutout Dimensions [custom]	Panel Cutout Dimensions [custom]	Wavelength - Peak	Lens Style	Lamp Color	Lens Transparency	Current	Panel Cutout Shape	Viewing Angle	Voltage	Lens Size	Lens Size	Type	Millicandela Rating
Lumex Opto/Components Inc. SSI-RM3091SUGD1561

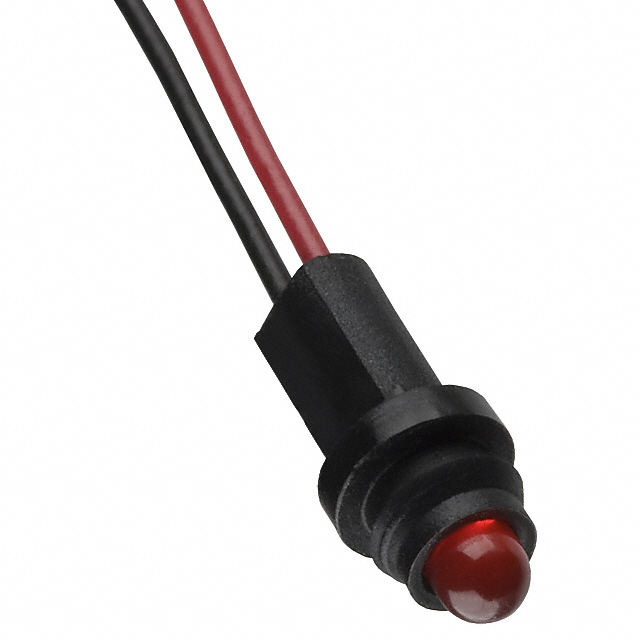

Lumex Opto/Components Inc. SSI-RM3091SID-150	Red	0.2 in	5.08 mm	636 nm	Round with Domed Top	Red	Diffused	30 mA	Round	60 °	2 V	3 mm	T-1	LED	100 mcd

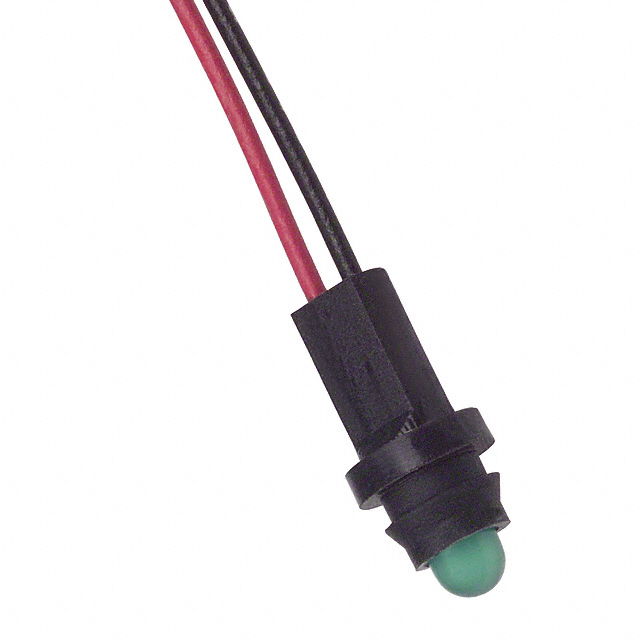

Lumex Opto/Components Inc. SSI-RM3091GD-150	Green	0.2 in	5.08 mm	565 nm	Round with Domed Top	Green	Diffused	25 mA	Round	60 °	2.2 V	3 mm	T-1	LED	20 mcd
Lumex Opto/Components Inc. SSI-RM3091IGW-150	White	0.2 in	5.08 mm	565 nm 635 nm	Round with Domed Top	Green Red	Diffused	20 mA 20 mA	Round	60 °	2 V 2.2 V	3 mm	T-1	LED	20 mcd 30 mcd
Lumex Opto/Components Inc. SSI-RM3091USBD-150	Blue	0.2 in	5.08 mm	470 nm	Round with Domed Top	Blue	Diffused	30 mA	Round	60 °	3.5 V	3 mm	T-1	LED	60 mcd
Lumex Opto/Components Inc. SSI-RM3091SUGD-150	Green	0.2 in	5.08 mm		Round with Domed Top	Green	Diffused	25 mA	Round	60 °	2.2 V	3 mm	T-1	LED	50 mcd

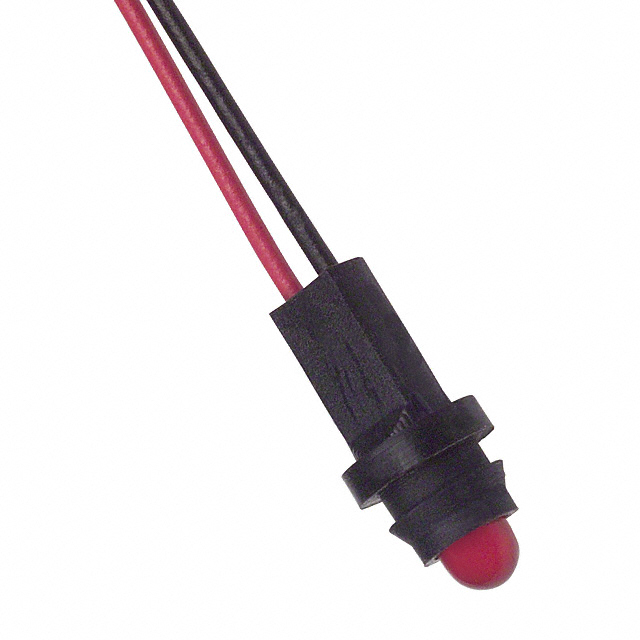

Lumex Opto/Components Inc. SSI-RM3091ID-150	Red	0.2 in	5.08 mm	635 nm	Round with Domed Top	Red	Diffused	30 mA	Round	60 °	2 V	3 mm	T-1	LED	30 mcd

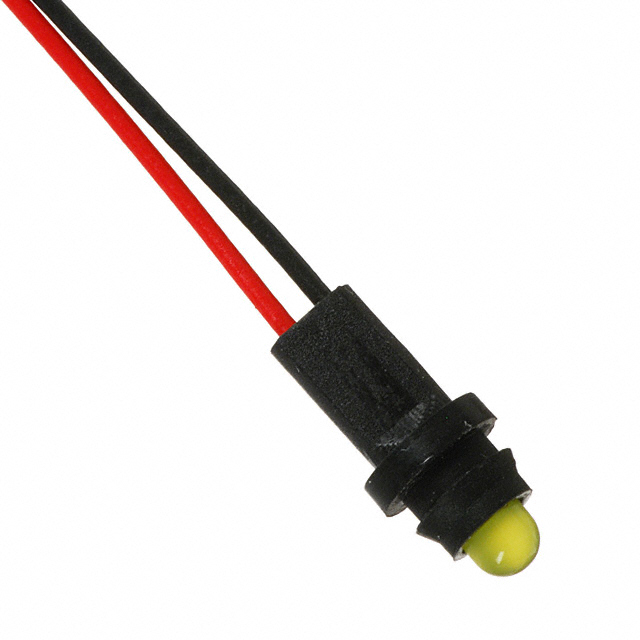

Lumex Opto/Components Inc. SSI-RM3091SYD-150	Yellow	0.2 in	5.08 mm	590 nm	Round with Domed Top	Yellow	Diffused	30 mA	Round	60 °	2.1 V	3 mm	T-1	LED	100 mcd

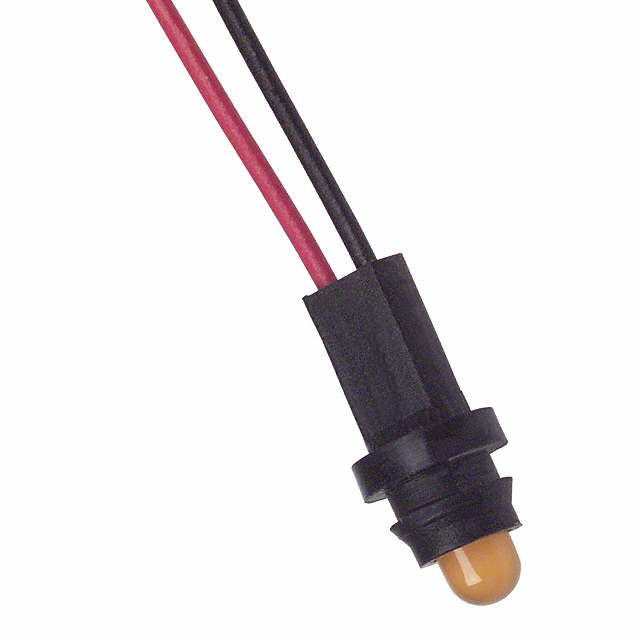

Lumex Opto/Components Inc. SSI-RM3091SOD-150	Orange	0.2 in	5.08 mm	610 nm	Round with Domed Top	Orange	Diffused	30 mA	Round	60 °	2 V	3 mm	T-1	LED	100 mcd
