SRCN6A25 Series

Catalog

CONN PLUG MALE 24P SOLDER CUP

Part	Number of Positions	Connector Type	Backshell Material, Plating	Features	Primary Material	Contact Finish - Mating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening	Cable Opening	Color	Shell Finish	Applications	Current Rating (Amps)	Shell Material	Fastening Type	Mounting Type	Material Flammability Rating	Voltage Rating	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Orientation	Insert Material

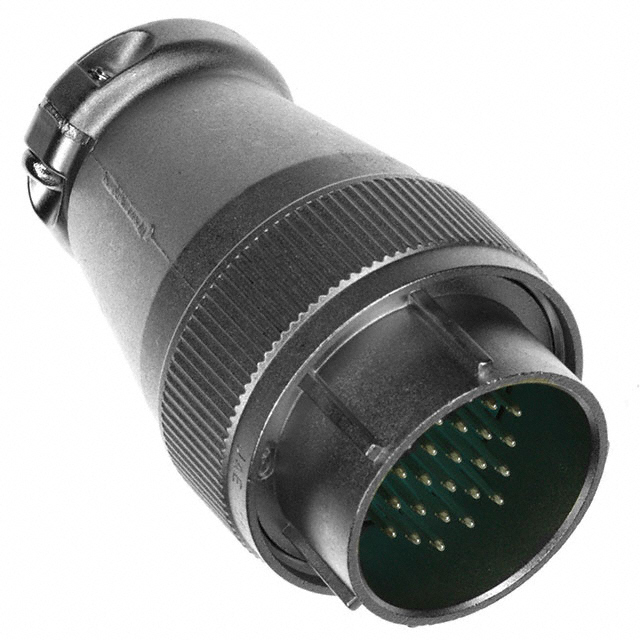

JAE Electronics SRCN6A25-24P	24	Plug Male Pins	Aluminum Alloy Nickel	Backshell Cable Clamp Coupling Nut	Metal	Silver	Copper Alloy	85 °C	-25 °C	17 mm	0.669 in	Silver	Nickel	Communication Systems Measurement Telecommunications Test Equipment	5 A	Aluminum Alloy	Threaded	Free Hanging (In-Line)	UL94 V-0	250 VAC 350 VDC	25	24	N (Normal)	Plastic

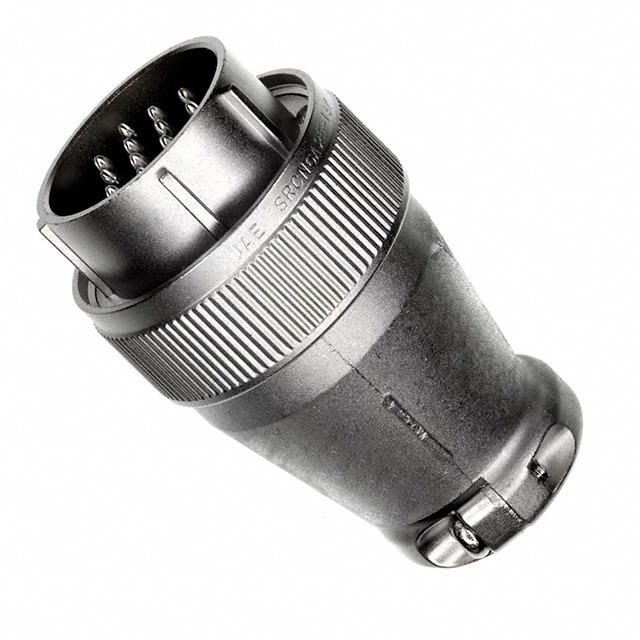

JAE Electronics SRCN6A25-16P	16	Plug Male Pins	Aluminum Alloy Nickel	Backshell Cable Clamp Coupling Nut	Metal	Silver	Copper Alloy	85 °C	-25 °C	17 mm	0.669 in	Silver	Nickel	Communication Systems Measurement Telecommunications Test Equipment	10 A	Aluminum Alloy	Threaded	Free Hanging (In-Line)	UL94 V-0	250 VAC 350 VDC	16	25	N (Normal)	Plastic

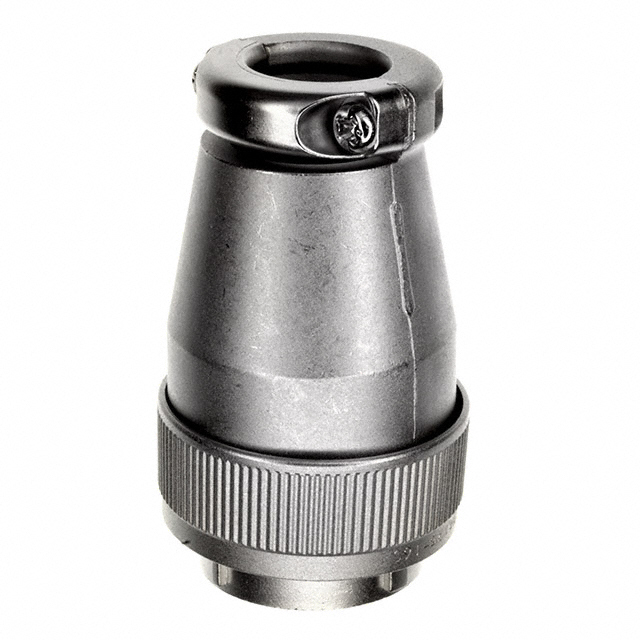

JAE Electronics SRCN6A25-16S	16	Plug Female Sockets	Aluminum Alloy Nickel	Backshell Cable Clamp Coupling Nut	Metal	Silver	Copper Alloy	85 °C	-25 °C	17 mm	0.669 in	Silver	Nickel	Communication Systems Measurement Telecommunications Test Equipment	10 A	Aluminum Alloy	Threaded	Free Hanging (In-Line)	UL94 V-0	250 VAC 350 VDC	16	25	N (Normal)	Plastic

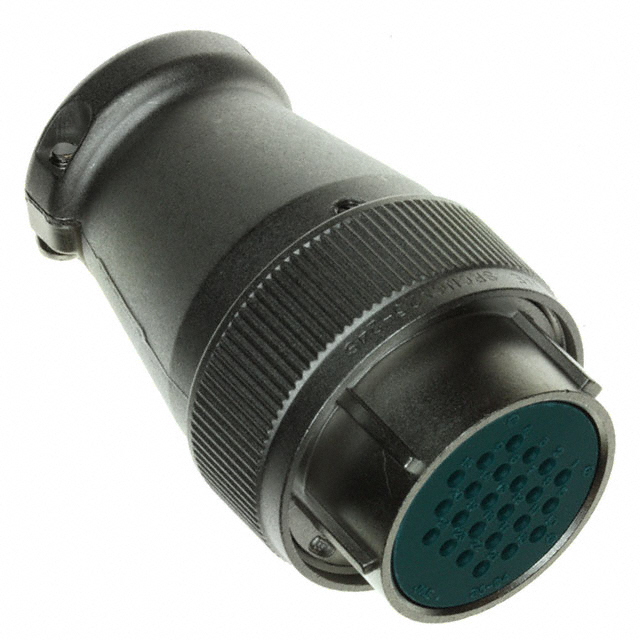

JAE Electronics SRCN6A25-24S	24	Plug Female Sockets	Aluminum Alloy Nickel	Backshell Cable Clamp Coupling Nut	Metal	Silver	Copper Alloy	85 °C	-25 °C	17 mm	0.669 in	Silver	Nickel	Communication Systems Measurement Telecommunications Test Equipment	5 A	Aluminum Alloy	Threaded	Free Hanging (In-Line)	UL94 V-0	250 VAC 350 VDC	25	24	N (Normal)	Plastic
