207530 Series

Catalog

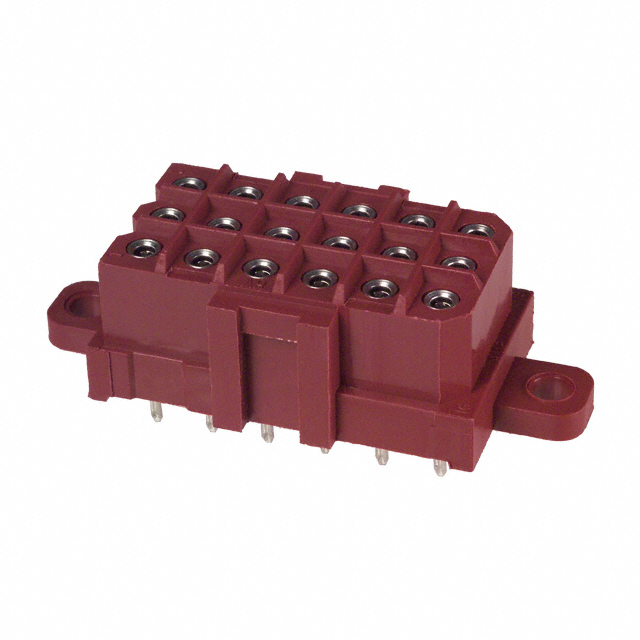

SKT HDR ASSY,18 POSN,METRIMATE

Part	Mounting Type	Style	Contact Material	Contact Type	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating	Current Rating (Amps)	Contact Length - Post [x]	Contact Length - Post [x]	Number of Rows	Material Flammability Rating	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Number of Positions Loaded	Insulation Material	Insulation Color	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Insulation Height	Insulation Height	Termination	Pitch - Mating	Pitch - Mating	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Contact Finish - Mating
TE Connectivity Raychem Cable Protection 207530-7	Through Hole	Board to Cable/Wire	Phosphor Bronze	Female Socket	Circular	130 °C	-55 °C	600 V	7.5 A	0.181 in	4.6 mm	3	UL94 V-0	Latch Holder	150 Áin	3.81 Ám	Mounting Flange	All	Nylon Polyamide (PA)	Red	Tin	5 mm	0.197 in	0.565 in	14.35 mm	Solder	5 mm	0.197 "	Header	150 Áin	3.81 Ám	18

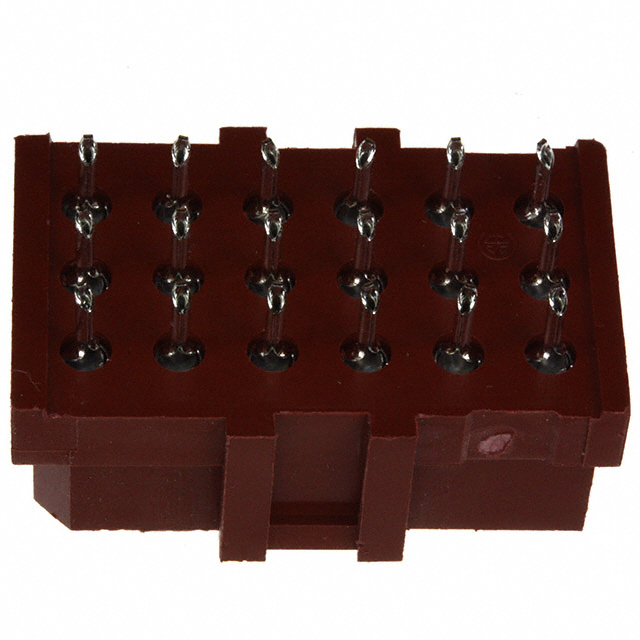

TE Connectivity Raychem Cable Protection 207530-4	Through Hole	Board to Cable/Wire	Phosphor Bronze	Female Socket	Circular	130 °C	-55 °C	600 V	7.5 A	0.181 in	4.6 mm	3	UL94 V-0	Latch Holder	30 Áin	0.76 Ám		All	Nylon Polyamide (PA)	Red	Tin-Lead	5 mm	0.197 in	0.565 in	14.35 mm	Solder	5 mm	0.197 "	Header	150 Áin	3.81 Ám	18	Gold
