2065769 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

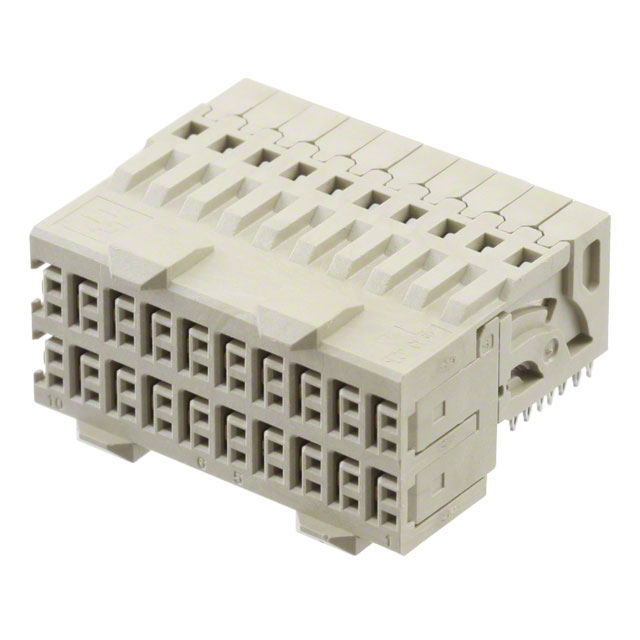

CONN RCPT HIGH SPEED 60P EDGE MT
| Part | Connector Type | Connector Usage | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Number of Positions Loaded | Voltage Rating | Features | Material Flammability Rating | Current Rating (Amps) | Pitch [x] | Pitch [x] | Connector Style | Termination | Mounting Type | Contact Layout, Typical [custom] | Contact Layout, Typical [custom] | Number of Columns |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | Receptacle Female Sockets | Daughtercard | -65 ░C | 105 ░C | 60 | All | 250 VDC | Shielded | UL94 V-0 | 600 mA | 0.098 in | 2.5 mm | High Speed | Press-Fit | Board Edge Right Angle Through Hole | 20 | 40 | 10 |
