2501-2 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

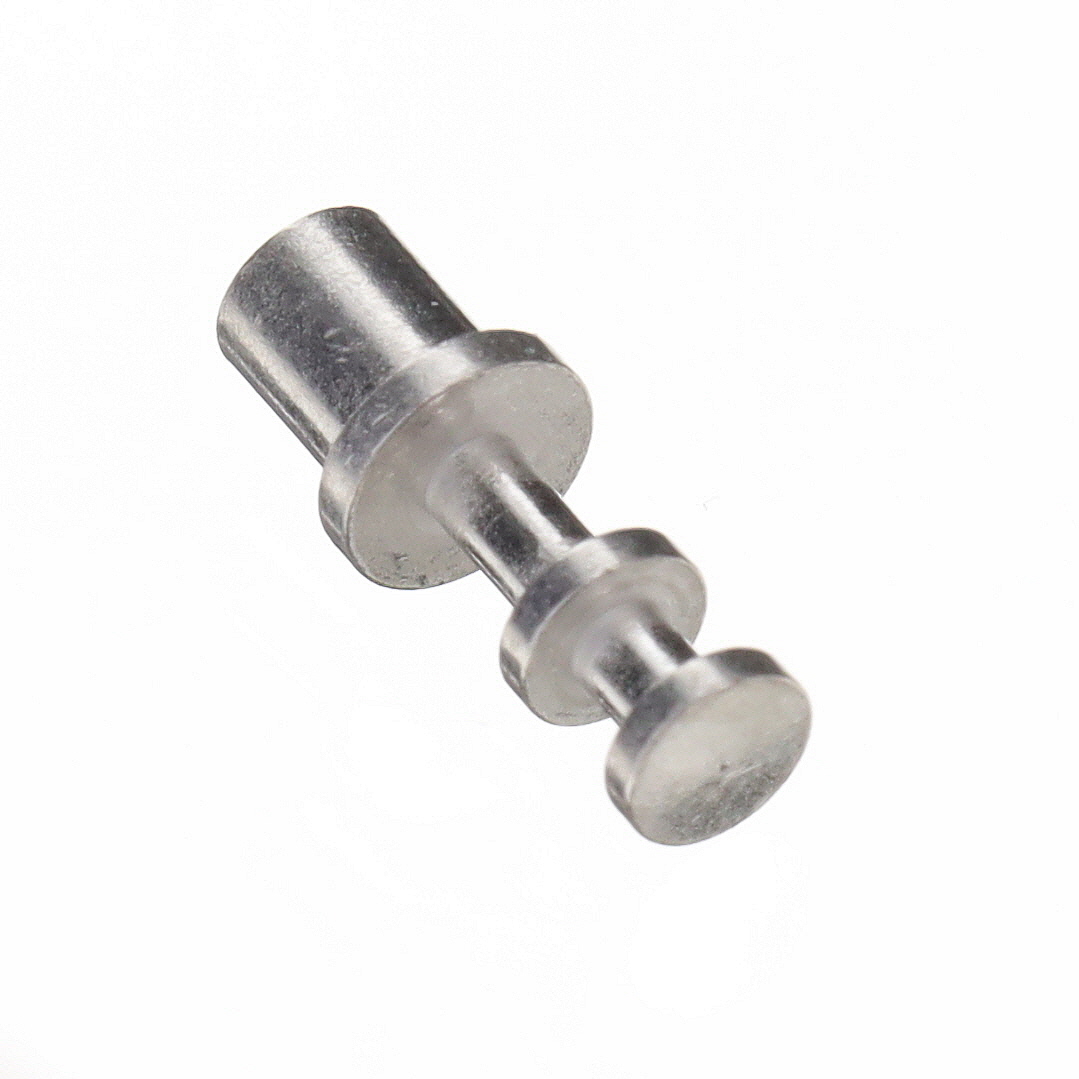

TERM TURRET SINGLE L=5.56MM
| Part | Insulation | Number of Turrets | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Staking Side OD [diameter] | Staking Side OD [diameter] | Length - Overall | Length - Overall | Flange Diameter | Flange Diameter [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Staking Side ID [diameter] | Staking Side ID [diameter] | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Termination | Mounting Type | Length - Above Board [x] | Length - Above Board [x] | Contact Material | Terminal Type | Board Thickness | Board Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Non-Insulated | Double | 2.36 mm | 0.093 in | 2.77 mm | 0.109 in | 2.29 mm | 0.09 in | 0.328 in | 8.33 mm | 3.18 mm | 0.125 in | Tin-Lead | 200 Áin | 5.08 Ám | 1.63 mm | 0.064 " | 2.39 mm | 0.094 " | Swage | Through Hole | 0.219 " | 5.56 mm | Brass Alloy | Single End | 0.062 in | 1.57 mm |
Mill-Max Manufacturing Corp. | Non-Insulated | Double | 2.36 mm | 0.093 in | 2.77 mm | 0.109 in | 2.29 mm | 0.09 in | 0.328 in | 8.33 mm | 3.18 mm | 0.125 in | Tin-Lead | 300 µin | 7.62 µm | 1.63 mm | 0.064 " | 2.39 mm | 0.094 " | Swage | Through Hole | 0.219 " | 5.56 mm | Brass Alloy | Single End | 0.062 in | 1.57 mm |
 Mill-Max Manufacturing Corp. | Non-Insulated | Double | 2.36 mm | 0.093 in | 2.77 mm | 0.109 in | 2.29 mm | 0.09 in | 0.328 in | 8.33 mm | 3.18 mm | 0.125 in | Tin | 200 Áin | 5.08 Ám | 1.63 mm | 0.064 " | 2.39 mm | 0.094 " | Swage | Through Hole | 0.219 " | 5.56 mm | Brass Alloy | Single End | 0.062 in | 1.57 mm |
