2305987 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
2-PORT MATENET HDR ASSY 90DEG, C
| Part | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Features | Style | Termination | Contact Shape | Insulation Material | Number of Positions | Current Rating (Amps) | Number of Positions Loaded | Insulation Height | Insulation Height | Shrouding | Number of Rows | Contact Type | Contact Material | Contact Finish - Post | Insulation Color | Connector Type | Contact Length - Post | Contact Length - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Through Hole Right Angle | -40 °C | 105 ░C | Board Guide | Board to Cable/Wire | Solder | Square | Glass Filled Nylon 4T Polyamide (PA4T) | 4 | 3 A | All | 13.5 mm | 0.531 in | Shrouded - 4 Wall | 1 | Tab | Copper Alloy | Tin | Black | Header | 0.094 in | 2.4 mm | ||||

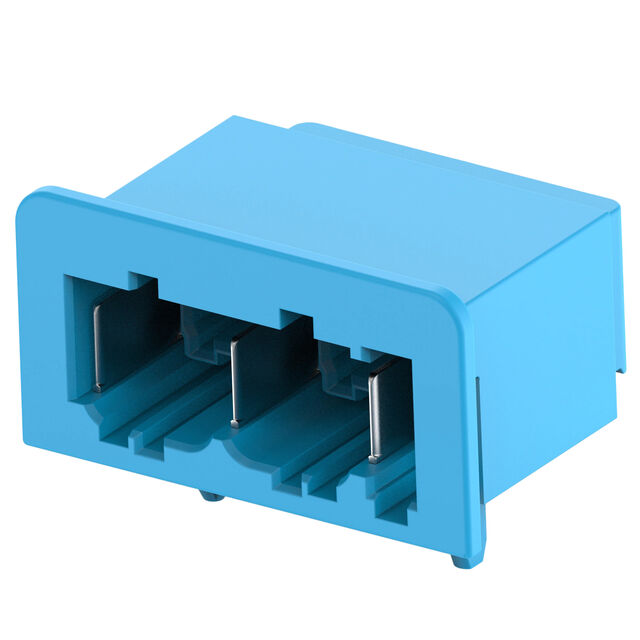

 TE Connectivity Raychem Cable Protection | Through Hole Right Angle | Board Guide | Board to Cable/Wire | Solder | Glass Filled Nylon 4T Polyamide (PA4T) | 4 | All | 13.5 mm | 0.531 in | Shrouded - 4 Wall | 1 | Tab | Copper Alloy | Tin | Blue | Header | 0.094 in | 2.4 mm | 0.3 µm | 12 µin | 118.1 µin | 3 µm |
