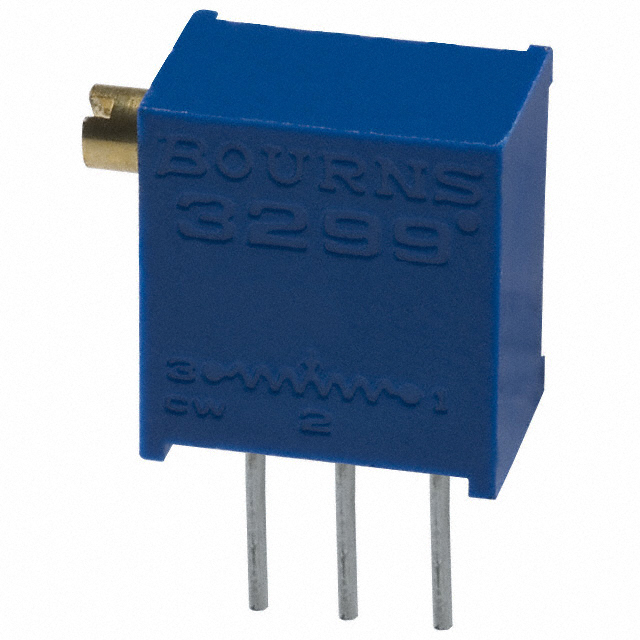

3299X Series

Catalog

TRIMMER 2K OHM 0.5W PC PIN SIDE

Part	Resistive Material	Termination Style	Resistance	Power (Watts)	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Mounting Type	Adjustment Type	Tolerance	Number of Turns	Temperature Coefficient
Bourns Inc. 3299X-1-202	Cermet	PC Pins	2 kOhms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-500	Cermet	PC Pins	50 Ohms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-253	Cermet	PC Pins	25 kOhms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-204LF	Cermet	PC Pins	200000 Ohms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-103LF	Cermet	PC Pins	10000 Ohms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-104LF	Cermet	PC Pins	100 kOhms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-205	Cermet	PC Pins	2 MOhms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-200LF	Cermet	PC Pins	20 Ohms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-105LF	Cermet	PC Pins	1 MOhms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
Bourns Inc. 3299X-1-102LF	Cermet	PC Pins	1000 Ohms	0.5 W	0.5 W	0.24 "	6.1 mm	0.395 in	10.03 mm	Through Hole	Side Adjustment	10 %	25	100 ppm/°C
