S11B-PH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER R/A 11POS 2MM
| Part | Insulation Color | Connector Type | Voltage Rating | Contact Type | Style | Termination | Pitch - Mating | Pitch - Mating | Material Flammability Rating | Contact Material | Number of Positions Loaded | Fastening Type | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Contact Shape | Insulation Height | Insulation Height | Contact Finish - Post | Number of Rows | Contact Length - Post [x] | Contact Length - Post | Current Rating (Amps) | Mounting Type | Contact Length - Mating | Contact Length - Mating | Insulation Material | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

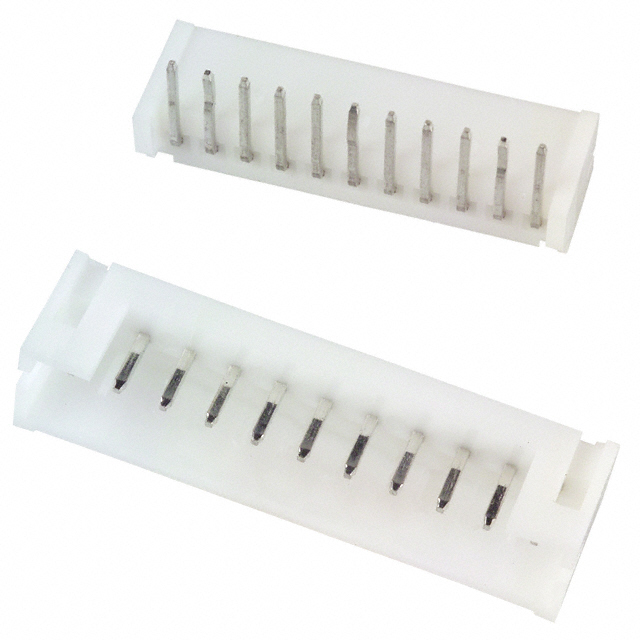

 JST Sales America Inc. | Natural | Header | 100 V | Male Pin | Board to Cable/Wire | Press-Fit Solder | 0.079 " | 2 mm | UL94 V-0 | Brass | All | Detent Lock | Shrouded - 4 Wall | 85 °C | -25 °C | 11 | Square | 4.8 mm | 0.189 in | Tin | 1 | 0.134 " | 3.4 mm | 2 A | Right Angle Through Hole | 0.13 in | 3.3 mm | Nylon 6/6 Polyamide (PA66) | |

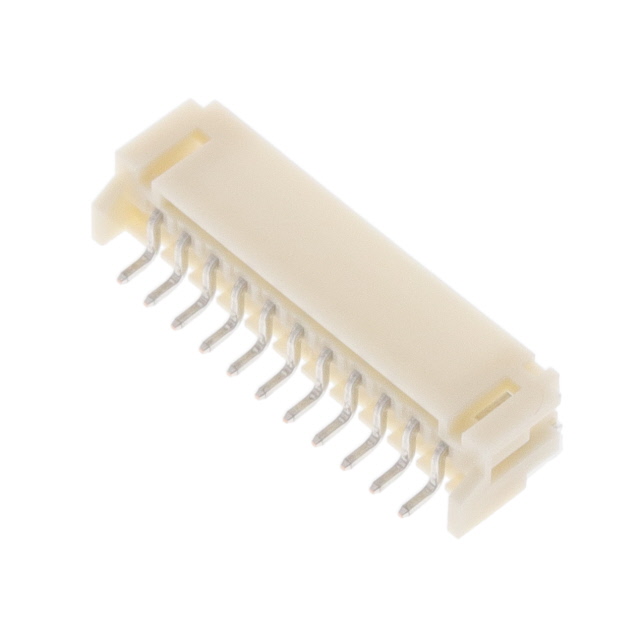

 JST Sales America Inc. | Natural | Header | 100 V | Male Pin | Board to Cable/Wire | Solder | 0.079 " | 2 mm | UL94 V-0 | Copper Alloy | All | Detent Lock | Shrouded - 4 Wall | 85 °C | -25 °C | 11 | Square | 5.51 mm | 0.217 in | Tin | 1 | 2 A | Right Angle Surface Mount | 0.13 in | 3.3 mm | Nylon 6T Polyamide (PA6T) | Solder Retention |
