Bpa0 Series Series

Side Actuated DIP DIP Switches / SIP Switches SPST 3POS 0.1A 24VDC SIDE ACTUATED DIP S

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Side Actuated DIP DIP Switches / SIP Switches SPST 3POS 0.1A 24VDC SIDE ACTUATED DIP S

Part	Contact Finish	Height Above Board [z]	Height Above Board [z]	Number of Positions	Length	Length	Actuator Type	Current Rating (Amps)	Mechanical Life	Electrical Life	Circuit	Mounting Type	Body Material	Termination Style	Contact Material	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Level	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]
Littelfuse/Commercial Vehicle Products BPA04RSB	Gold	6.95 mm	0.274 in	4	0.476 in	12.09 mm	Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Surface Mount Right Angle	Polyphenylene Sulfide (PPS)	Gull Wing	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm
Littelfuse/Commercial Vehicle Products BPA05SBR	Gold	6.95 mm	0.274 in		0.575 in	14.61 mm	Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Surface Mount Right Angle	Polyphenylene Sulfide (PPS)	Gull Wing	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm
Littelfuse/Commercial Vehicle Products BPA04RB	Gold	7.3 mm	0.287 in	4	0.476 in	12.09 mm	Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	PC Pin	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm
Littelfuse/Commercial Vehicle Products BPA02RB	Gold	7.3 mm	0.287 in	2			Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	PC Pin	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm	7 mm	0.276 in
Littelfuse/Commercial Vehicle Products BPA01SBR	Gold	6.95 mm	0.274 in	1			Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Surface Mount Right Angle	Polyphenylene Sulfide (PPS)	Gull Wing	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm	4.48 mm	0.176 in
Littelfuse/Commercial Vehicle Products BPA09RB	Gold	7.3 mm	0.287 in	9			Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	PC Pin	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm	24.79 mm	0.976 in
Littelfuse/Commercial Vehicle Products BPA07B	Gold	7.3 mm	0.287 in	7		19.71 mm	Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	PC Pin	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm		0.776 in
Littelfuse/Commercial Vehicle Products BPA04B	Gold	7.3 mm	0.287 in	4	0.476 in	12.09 mm	Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	PC Pin	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm
Littelfuse/Commercial Vehicle Products BPA03B	Gold	7.3 mm	0.287 in		0.376 "	9.55 mm	Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	PC Pin	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm
Littelfuse/Commercial Vehicle Products BPA10RB	Gold	7.3 mm	0.287 in	10	1.075 in	27.31 mm	Piano	100 mA	1000 Cycles	1000 Cycles	SPST	Through Hole Right Angle	Polyphenylene Sulfide (PPS)	PC Pin	Beryllium Copper	5 V	85 °C	-20 C	Raised	0.1 in	Full	2.54 mm

Catalog

Side Actuated DIP DIP Switches / SIP Switches SPST 3POS 0.1A 24VDC SIDE ACTUATED DIP S

Key Features

• Side actuated contacts

• Available in thru-hole or SMT models

• High pressure contact system does not require tape seal for washing

Description

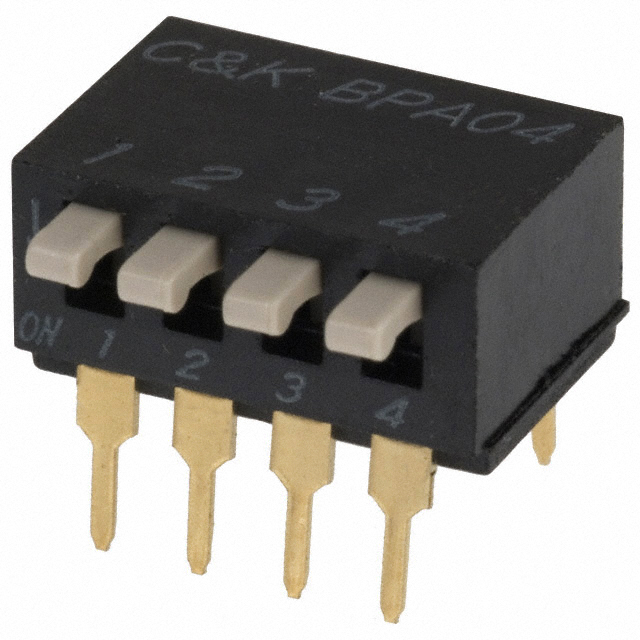

The BPA series side actuated DIP switch from C&K is perfect for industrial controls with address switches, logic switching applications typically seen in computers and peripherals, or function controlling in numerous applications. BPA switches are available in thru-hole or SMT model types and come with side actuated contacts and a high-pressure contact system that does not require tape seal for washing.
