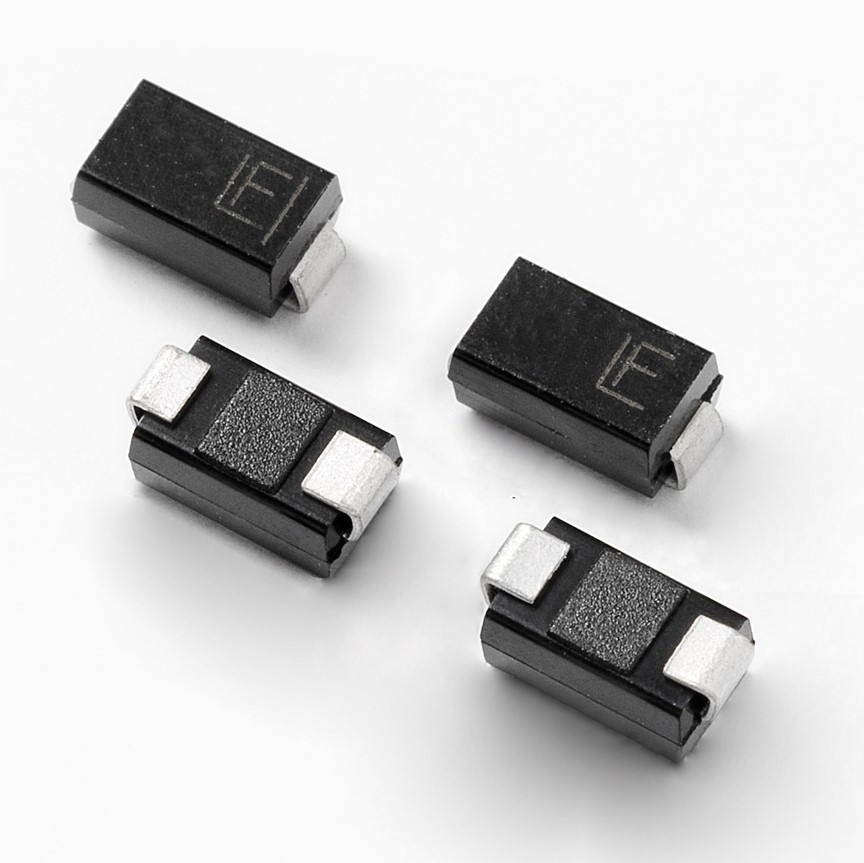

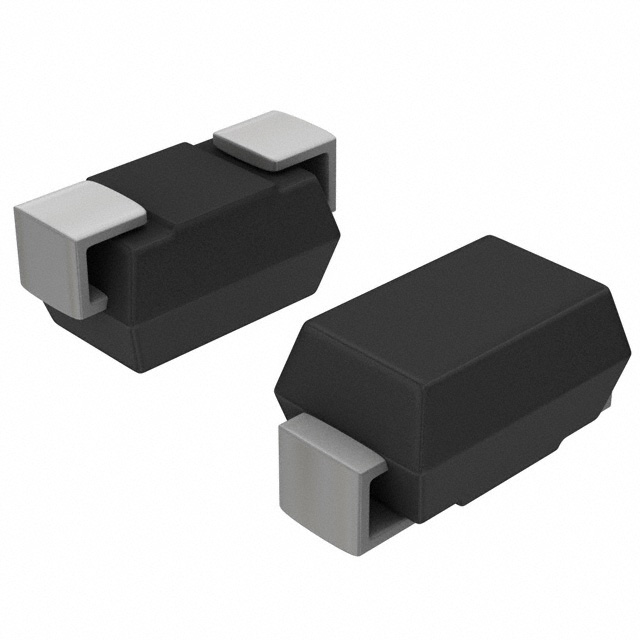

SZ1SMA10CAT3G Series

Zen TVS 400W 160V UNI DO-214AC TR13

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Zen TVS 400W 160V UNI DO-214AC TR13

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Package / Case	Voltage - Breakdown (Min) [Min]	Type	Capacitance @ Frequency	Applications	Power - Peak Pulse	Current - Peak Pulse (10/1000µs)	Bidirectional Channels [custom]	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Unidirectional Channels [custom]	Grade	Qualification	Voltage - Clamping (Max) @ Ipp
Littelfuse/Commercial Vehicle Products 1SMA28CAT3G	SMA	150 °C	-65 °C	Surface Mount	DO-214AC SMA	31.1 V	Zener	225 pF	General Purpose	400 W	8.8 A	1	45.4 V	28 V
Littelfuse/Commercial Vehicle Products 1SMA8.0AT3G	SMA	150 °C	-65 °C	Surface Mount	DO-214AC SMA	8.89 V	Zener	1035 pF	General Purpose	400 W	29.4 A		13.6 V	8 V	1
Littelfuse/Commercial Vehicle Products SZ1SMA100AT3G	DO-214AC (SMA)	150 °C	-65 °C	Surface Mount	DO-214AC SMA	111 V	Zener	162 pF		400 W	2.5 A		162 V	100 V	1	Automotive	AEC-Q101
Littelfuse/Commercial Vehicle Products SZ1SMA170AT3G	DO-214AC (SMA)	150 °C	-65 °C	Surface Mount	DO-214AC SMA	189 V	Zener	112 pF		400 W	1.5 A		275 V	170 V	1	Automotive	AEC-Q101
Littelfuse/Commercial Vehicle Products SZ1SMA78AT3G	DO-214AC (SMA)	150 °C	-65 °C	Surface Mount	DO-214AC SMA	86.7 V	Zener	178 pF		400 W	3.2 A			78 V	1	Automotive	AEC-Q101	126 V
Littelfuse/Commercial Vehicle Products 1SMA18CAT3G	SMA	150 °C	-65 °C	Surface Mount	DO-214AC SMA	20 V	Zener	335 pF	General Purpose	400 W	13.7 A	1	29.2 V	18 V
Littelfuse/Commercial Vehicle Products 1SMA70AT3G	SMA	150 °C	-65 °C	Surface Mount	DO-214AC SMA	77.8 V	Zener	190 pF	General Purpose	400 W	3.5 A		113 V	70 V	1
Littelfuse/Commercial Vehicle Products SZ1SMA110AT3G	DO-214AC (SMA)	150 °C	-65 °C	Surface Mount	DO-214AC SMA	122 V	Zener	155 pF		400 W	2.3 A		177 V	110 V	1	Automotive	AEC-Q101
Littelfuse/Commercial Vehicle Products SZ1SMA20AT3G	SMA	150 °C	-65 °C	Surface Mount	DO-214AC SMA	22.2 V	Zener	585 pF		400 W	12.3 A		32.4 V	20 V	1	Automotive	AEC-Q101
Littelfuse/Commercial Vehicle Products SZ1SMA45AT3G	SMA	150 °C	-65 °C	Surface Mount	DO-214AC SMA	50 V	Zener	280 pF		400 W	5.5 A		72.2 V	45 V	1	Automotive	AEC-Q101

Catalog

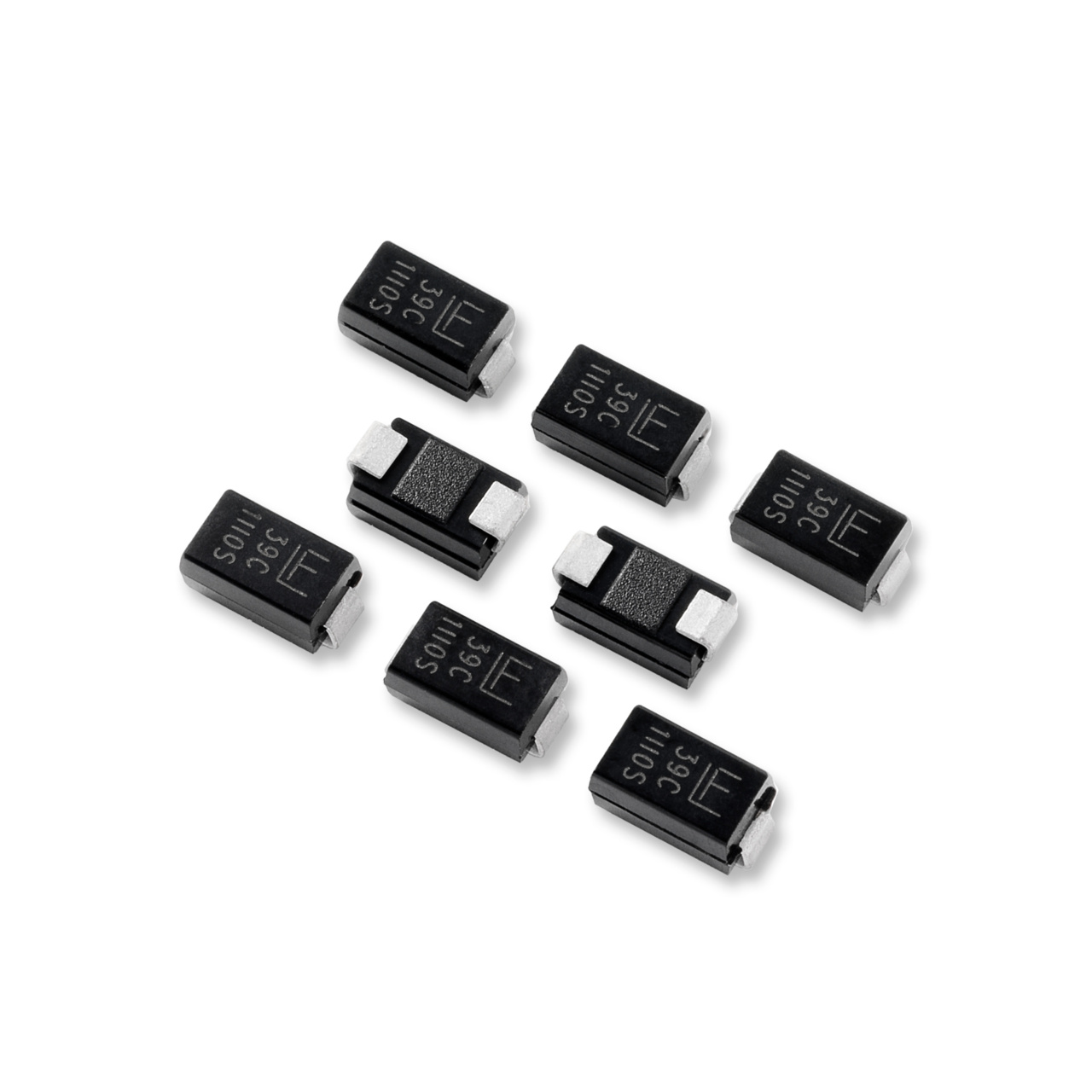

Zen TVS 400W 160V UNI DO-214AC TR13

Key Features

• Zener Transient Overvoltage Suppressors

• Working Peak Reverse Voltage Range −5V to 170V for uni-directional and 10 V to 78 V for bi-directional

• Standard Zener Breakdown Voltage Range −11.1 V to 95.83 V for bi-directional, 6.4 V to 209 V for uni-directional

• Peak power rating of 400 W at 1 Ams

• ESD protection of data lines in accordance with IEC 61000-4-2 30kV(Air), 30kV (Contact)

• ESD Rating of Class 3 (> 16 kV) per Human Body Model

• Response Time is Typically

• Flat Handling Surface for Accurate Placement

• Package Design for Top Slide or Bottom Circuit

• VBR@TJ= VBR@25°C x (1+αT x (TJ- 25)) (αT: Temperature Coefficient)

Description

This series will be End of Life (EOL) on December 31, 2017 and is not recommended for new designs. Replacement will be the SMAJ series . The SMA series is designed to protect voltage sensitive components from high voltage, high energy transients. They have excellent clamping capability, high surge capability, low zener impedance and fast response time. The SMA series is supplied in Littelfuse's exclusive, cost-effective, highly reliable package and is ideally suited for use in communication systems, automotive, numerical controls, process controls, medical equipment, business machines, power supplies and many other industrial/consumer applications.
