MX34032N Series
Manufacturer: JAE Electronics
Beta
⌘K
CONN PIN HEADER 32 POS R/A HIGH
| Part | Applications | Insulation Material | Contact Material | Insulation Height | Insulation Height | Current Rating (Amps) | Shrouding | Number of Rows [custom] | Contact Length - Post [x] | Contact Length - Post [x] | Row Spacing - Mating | Row Spacing - Mating | Style | Pitch - Mating | Pitch - Mating | Contact Finish - Post | Connector Type | Contact Length - Mating | Contact Length - Mating | Mounting Type | Fastening Type | Contact Shape | Termination | Features | Number of Positions Loaded | Insulation Color | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

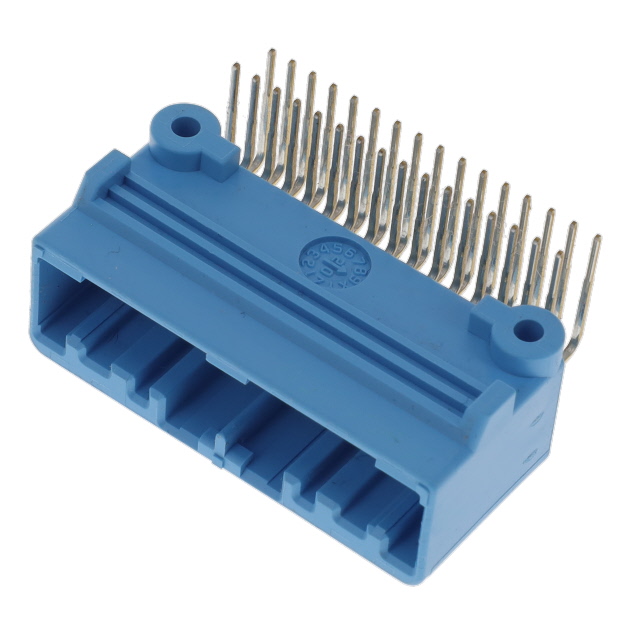

 JAE Electronics | Automotive | Glass Filled Syndiotactic Polystyrene (SPS) | Brass | 0.626 in | 15.9 mm | 3 A | Shrouded - 4 Wall | 2 | 0.126 " | 3.2 mm | 0.118 in | 3 mm | Board to Cable/Wire | 0.087 in | 2.2 mm | Tin | Header | 0.303 in | 7.7 mm | Right Angle Through Hole | Locking Ramp | Square | Solder | Mounting Flange | All | Blue | Male Pin | ||

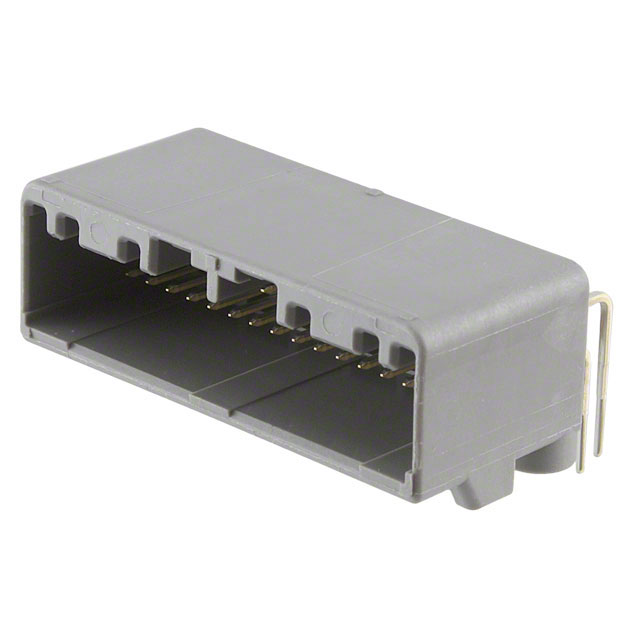

 JAE Electronics | Automotive | Glass Filled Syndiotactic Polystyrene (SPS) | Brass | 0.626 in | 15.9 mm | 3 A | Shrouded - 4 Wall | 2 | 0.126 " | 3.2 mm | 0.118 in | 3 mm | Board to Cable/Wire | 0.087 in | 2.2 mm | Tin | Header | 0.303 in | 7.7 mm | Right Angle Through Hole | Locking Ramp | Square | Solder | Mounting Flange | All | Gray | Male Pin | 85 °C | -40 C |
