ERM5-020 Series

Board to Board & Mezzanine Connectors 0.50 mm Edge Rate Rugged High Speed Terminal

Manufacturer: Samtec Inc.

Catalog

Board to Board & Mezzanine Connectors 0.50 mm Edge Rate Rugged High Speed Terminal

Catalog

Board to Board & Mezzanine Connectors 0.50 mm Edge Rate Rugged High Speed Terminal

Part	Contact Finish	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Features	Mounting Type	Mated Stacking Heights	Number of Positions	Connector Type	Height Above Board	Height Above Board

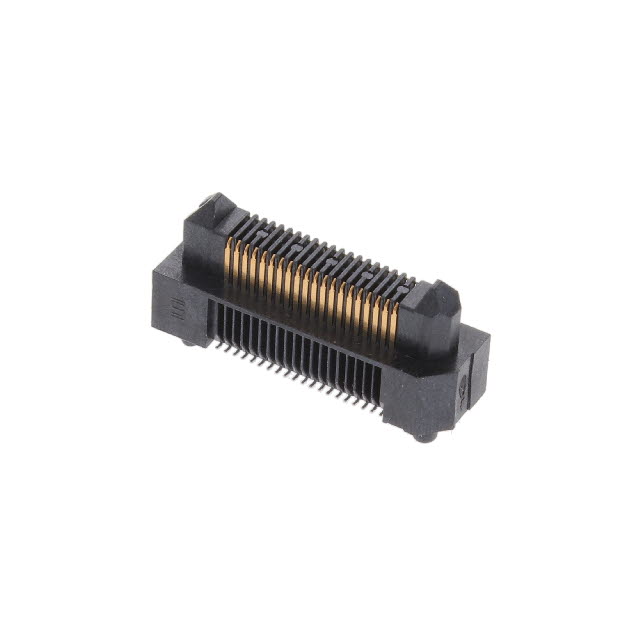

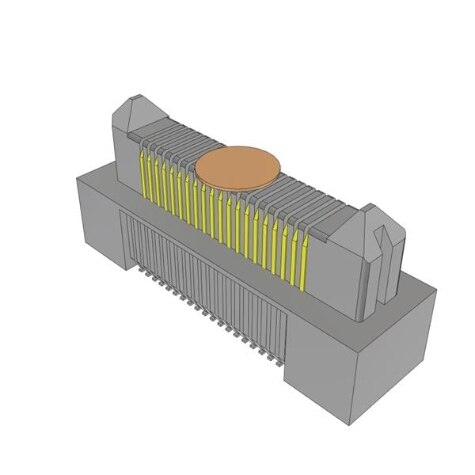

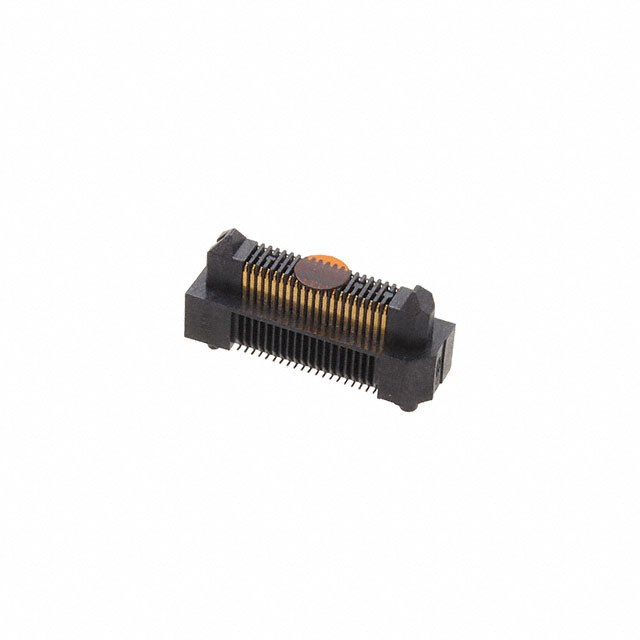

Samtec Inc. ERM5-020-04.0-L-DV-K-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Pick and Place	Surface Mount	9 mm 11 mm	40	Header Outer Shroud Contacts	0.27 in	6.85 mm
Samtec Inc. ERM5-005-05.0-L-DV-WT-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Solder Retention	Surface Mount	10 mm 12 mm	10	Header Outer Shroud Contacts	0.309 in	7.85 mm
Samtec Inc. ERM5-020-04.0-L-DV-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide	Surface Mount	9 mm 11 mm	40	Header Outer Shroud Contacts	0.27 in	6.85 mm
Samtec Inc. ERM5-020-05.0-L-DV-WT-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Solder Retention	Surface Mount	10 mm 12 mm	40	Header Outer Shroud Contacts	0.309 in	7.85 mm
Samtec Inc. ERM5-020-02.0-L-DV-FL-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Friction Lock	Surface Mount	7 mm 9 mm	40	Header Outer Shroud Contacts	0.191 in	4.85 mm
Samtec Inc. ERM5-020-02.0-L-DV-WT-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Solder Retention	Surface Mount	7 mm 9 mm	40	Header Outer Shroud Contacts	0.191 in	4.85 mm

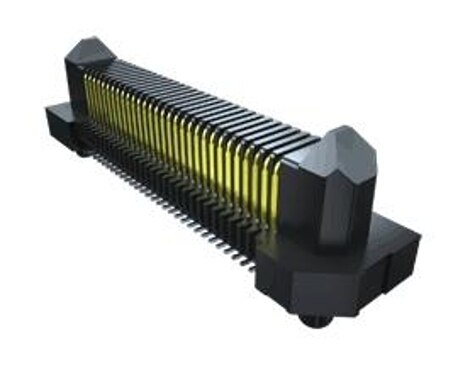

Samtec Inc. ERM5-010-02.0-S-DV-FL-P-TR	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám	2	Board Guide Friction Lock Pick and Place	Surface Mount	7 mm 9 mm	20	Header Outer Shroud Contacts	0.191 in	4.85 mm
Samtec Inc. ERM5-020-05.0-S-DV-K-TR	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám	2	Board Guide Pick and Place	Surface Mount	10 mm 12 mm	40	Header Outer Shroud Contacts	0.309 in	7.85 mm
Samtec Inc. ERM5-020-04.0-S-DV-K-TR	Gold	0.5 mm	0.02 in	30 Áin	0.76 Ám	2	Board Guide Pick and Place	Surface Mount	9 mm 11 mm	40	Header Outer Shroud Contacts	0.27 in	6.85 mm
Samtec Inc. ERM5-020-05.0-L-DV-FL-K-TR	Gold	0.5 mm	0.02 in	10 Áin	0.25 Ám	2	Board Guide Friction Lock Pick and Place	Surface Mount	10 mm 12 mm	40	Header Outer Shroud Contacts	0.309 in	7.85 mm
