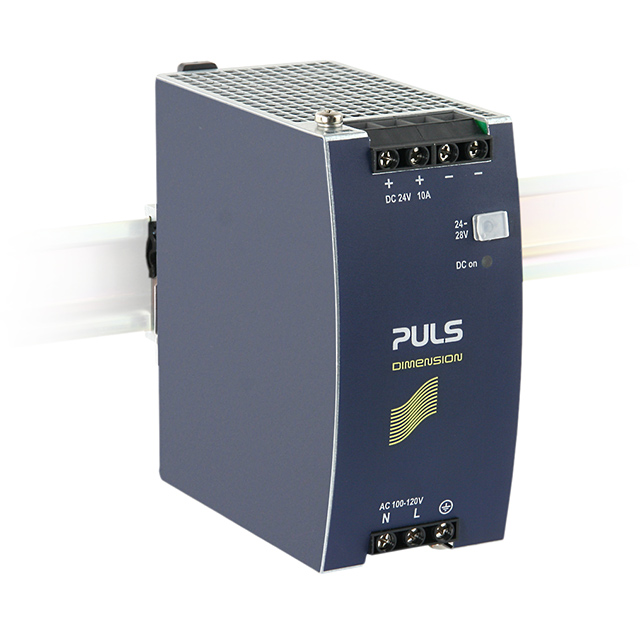

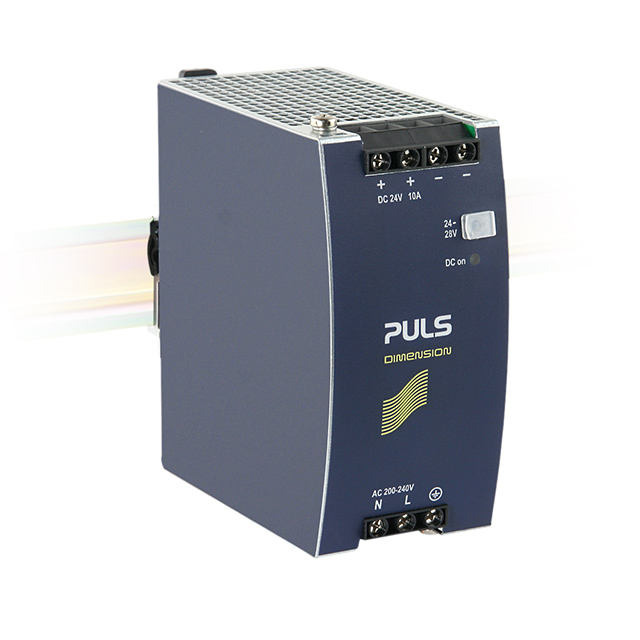

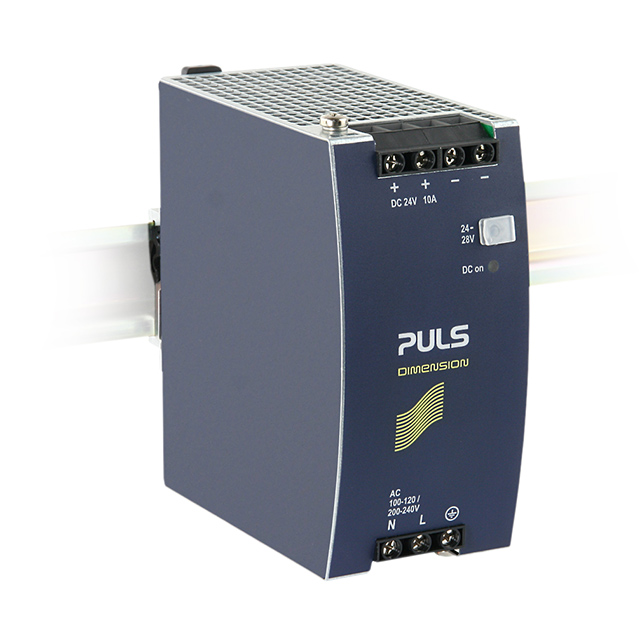

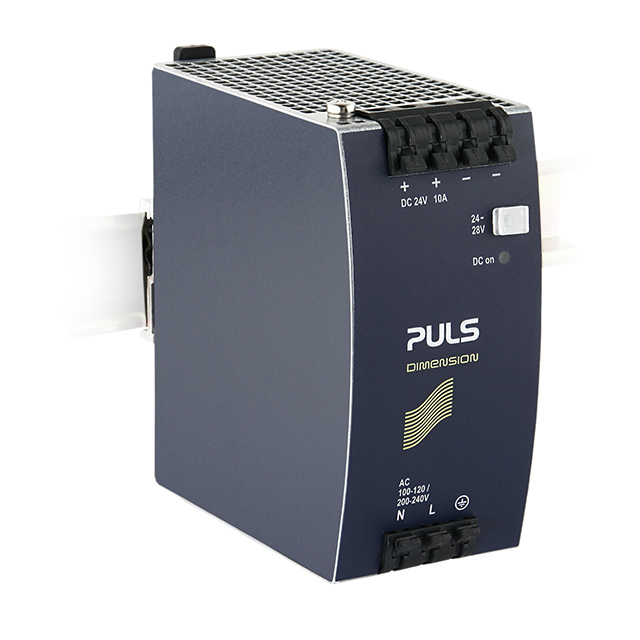

CS10 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 24V 240W

Part	Number of Outputs	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Standard Number	Efficiency	Power (Watts)	Voltage - Isolation	Applications	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Output 1	Input Type	Features	Current - Output (Max)
PULS, LP CS10.243	1	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	90 VAC	132 VAC	508 60950-1 61010-2-201 Class I Div 2	91.3 %	240 Watts	3000 V	ITE (Commercial)	ABS CSA DNV GL EAC IEC UL	70 °C	0 °C	10 A	24 V	AC	Adjustable Output Load Sharing
PULS, LP CS10.242	1	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	100 VAC 200 VAC	120 VAC 240 VAC	508 60950-1 61010-2-201 Class I Div 2	91.2 %	240 Watts	3000 V	ITE (Commercial)	ABS CSA DNV GL EAC IEC UL	70 °C	0 °C	10 A	24 V	AC	Adjustable Output Load Sharing PFC
PULS, LP CS10.241-S1	1	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	100 VAC 200 VAC	120 VAC 240 VAC	508 60950-1 61010-2-201 Class I Div 2	91.6 %	240 Watts	3000 V	ITE (Commercial)	ABS CSA DNV GL EAC IEC UL	70 °C	-25 °C	10 A	24 V	AC	Adjustable Output Load Sharing
PULS, LP CS10.244	1	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	200 VAC	240 VAC	508 60950-1 61010-2-201 Class I Div 2	91.3 %	240 Watts	3000 V	ITE (Commercial)	ABS CSA DNV GL EAC IEC UL	70 °C	-25 °C	10 A	24 V	AC	Adjustable Output Load Sharing
PULS, LP CS10.481	1	117 mm	60 mm	2.36 "	4.61 "	124 mm	4.88 in	100 VAC 200 VAC	120 VAC 240 VAC	508 60950-1 61010-2-201 Class I Div 2	91.6 %	240 Watts	3000 V	ITE (Commercial)	ABS CSA DNV GL EAC IEC UL	70 °C	-25 °C		48 V	AC	Adjustable Output Load Sharing	5 A
