ISL80136 Series

40V, Low Quiescent Current, 50mA Linear Regulator

Manufacturer: Renesas Electronics Corporation

Catalog

40V, Low Quiescent Current, 50mA Linear Regulator

Part	Voltage Dropout (Max) [Max]	Mounting Type	Voltage - Output (Min/Fixed)	Current - Output	Voltage - Output (Max) [Max]	Control Features	Current - Supply (Max) [Max]	Number of Regulators	PSRR	Supplier Device Package	Current - Quiescent (Iq)	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Output Configuration	Protection Features	Package / Case	Package / Case	Package / Case

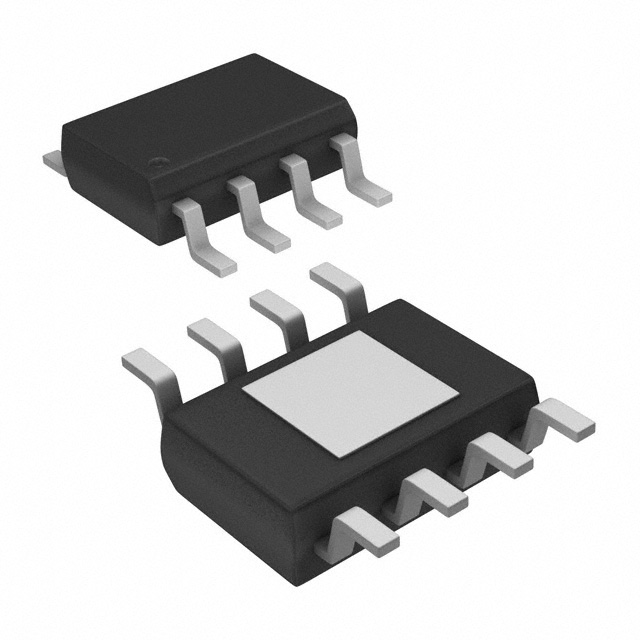

Renesas Electronics Corporation ISL80136IBEAJZ	0.35 V	Surface Mount	2.5 V	50 mA	12 V	Enable	82 µA	1	58 dB	8-SOIC-EP	24 µA	125 °C	-40 °C	Adjustable	Positive	Over Current Over Temperature	0.154 in	8-SOIC	3.9 mm
Renesas Electronics Corporation ISL80136IBEAJZ-T7A	0.35 V	Surface Mount	2.5 V	50 mA	12 V	Enable	82 µA	1	58 dB	8-SOIC-EP	24 µA	125 °C	-40 °C	Adjustable	Positive	Over Current Over Temperature	0.154 in	8-SOIC	3.9 mm

Catalog

40V, Low Quiescent Current, 50mA Linear Regulator

Description

The ISL80136 is a high voltage, low quiescent current linear regulator ideally suited for "always-on" and "keep alive" applications. The ISL80136 operates from an input voltage of +6V to +40V under normal operating conditions, consuming only 18µA of quiescent current at no load. The ISL80136 offers adjustable output voltages from 2.5V to 12V. It features an EN pin that can be used to put the device into a low-quiescent current shutdown mode where it draws only 1.8µA of supply current. The device features over-temperature shutdown and current limit protection. The ISL80136 is rated across the -40°C to +125°C temperature range and is available in an 8 lead EPSOIC with an exposed pad package.
