10062827 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

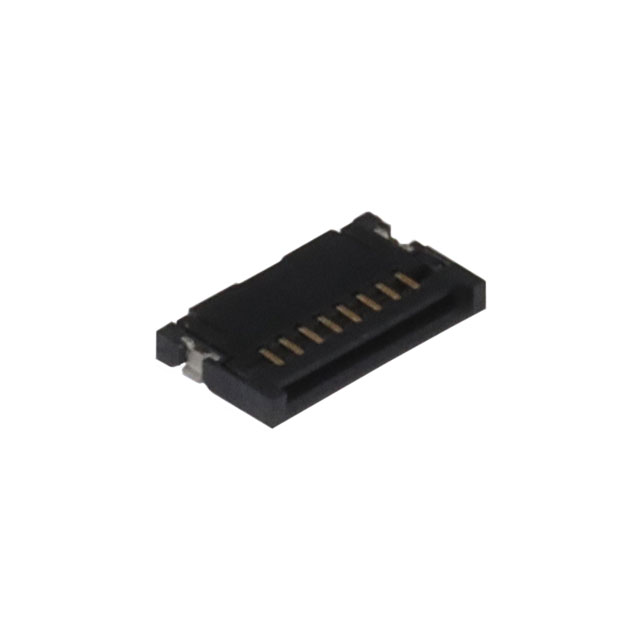

CONN FPC BOTTOM 8POS 0.5MM R/A
| Part | Actuator Color | Mating Cycles | Current Rating (Amps) | Housing Color | Height Above Board | Height Above Board | Material Flammability Rating | Flat Flex Type | Operating Temperature [Min] | Operating Temperature [Max] | Cable End Type | Mounting Type | Features | Number of Positions | Actuator Material | Pitch | Pitch | Locking Feature | Housing Material | Contact Material | Contact Finish | FFC, FCB Thickness | Voltage Rating | Termination | Connector/Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 10 | 400 mA | Black | 0.028 in | 0.71 mm | UL94 V-0 | FPC | -55 C | 85 °C | Straight | Right Angle Surface Mount | Solder Retention Zero Insertion Force (ZIF) | 8 | Thermoplastic Glass Filled | 0.02 " | 0.5 mm | Slide Lock | Glass Filled Thermoplastic | Copper Alloy | Gold | 0.12 mm | 50 V | Solder | Contacts Bottom |
 Amphenol ICC (FCI) | Black | 400 mA | Black | 0.028 in | 0.71 mm | UL94 V-0 | FPC | -55 C | 85 °C | Notched | Right Angle Surface Mount | Solder Retention Zero Insertion Force (ZIF) | 4 | Thermoplastic Glass Filled | 0.02 " | 0.5 mm | Backlock Flip Lock | Glass Filled Thermoplastic | Copper Alloy | Gold | 0.12 mm | 50 V | Solder | Contacts Bottom |
