G846A401 Series

Catalog

WIRE TO BOARD 1.0MM PITCH R/A,SM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Contact Finish - Post	Fastening Type	Connector Type	Contact Material	Insulation Color	Contact Shape	Insulation Height [z]	Insulation Height [z]	Insulation Material	Contact Type	Number of Positions	Material Flammability Rating	Pitch - Mating	Pitch - Mating	Number of Rows [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Features	Style	Current Rating (Amps)	Shrouding	Number of Positions Loaded	Voltage Rating	Termination	Mounting Type

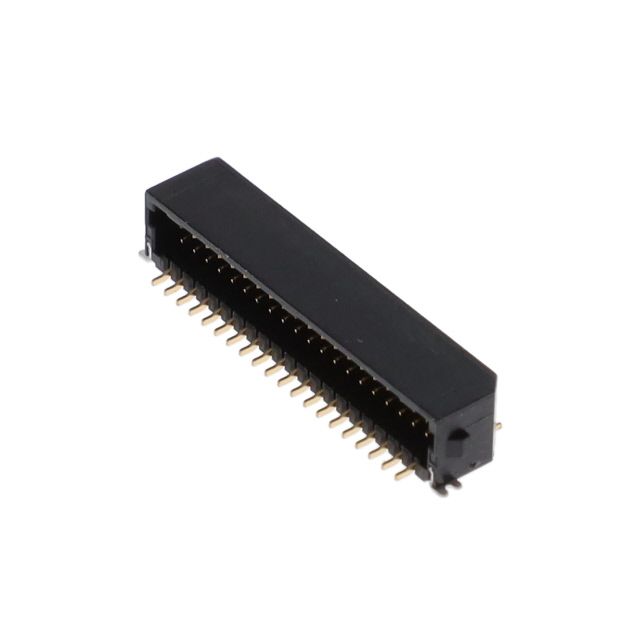

Amphenol ICC (Commercial Products) G846A40120T1HR	15 µin	0.38 µm	0.38 µm	15 µin	Gold	Gold	Locking Ramp	Header	Phosphor Bronze	Black	Rectangular	4.45 mm	0.175 in	Nylon 9T Polyamide (PA9T)	Male Pin	40	UL94 V-0	1 mm	0.039 in	2	105 ░C	-45 °C	Solder Retention	Board to Cable/Wire	Varies by Wire Gauge	Shrouded - 4 Wall	All	50 VAC	Solder	Right Angle Surface Mount
