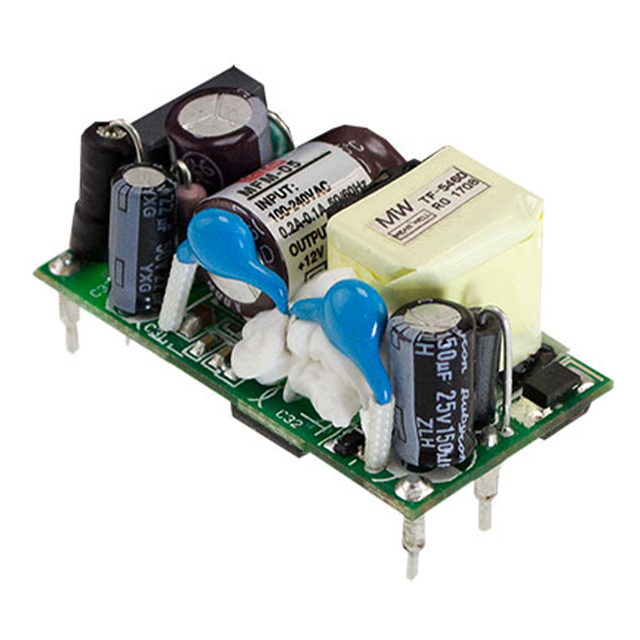

MFM-05 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 5W
| Part | Load Regulation | Line Regulation | Number of Outputs | Applications | Current - Output (Max) [Max] | Efficiency | Package / Case | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | 0.5 % | 0.3 % | 1 | Medical | 420 mA | 80 % | 4-DIP Module | 12 V | 80 VAC | 264 VAC | 5 W | Through Hole | -40 °C | 85 °C | CB CE cURus EAC TUV | Open Frame |
MEAN WELL USA Inc. | 0.5 % | 0.3 % | 1 | Medical | 330 mA | 81 % | 4-DIP Module | 15 V | 80 VAC | 264 VAC | 5 W | Through Hole | -40 °C | 85 °C | CB CE cURus EAC TUV | Open Frame |
MEAN WELL USA Inc. | 0.5 % | 0.3 % | 1 | Medical | 1.25 A | 74 % | 4-DIP Module | 3.3 V | 80 VAC | 264 VAC | 4.1 W | Through Hole | -40 °C | 85 °C | CB CE cURus EAC TUV | Open Frame |
MEAN WELL USA Inc. | 0.5 % | 0.3 % | 1 | Medical | 1 A | 80 % | 4-DIP Module | 5 V | 80 VAC | 264 VAC | 5 W | Through Hole | -40 °C | 85 °C | CB CE cURus EAC TUV | Open Frame |
