78F Series

Catalog

FIXED IND 33UH 255MA 1.5 OHM TH

Part	Q @ Freq	Material - Core	Current Rating (Amps)	Frequency - Self Resonant	Package / Case	DC Resistance (DCR) [Max]	Inductance	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Type	Shielding	Mounting Type	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	DC Resistance (DCR)

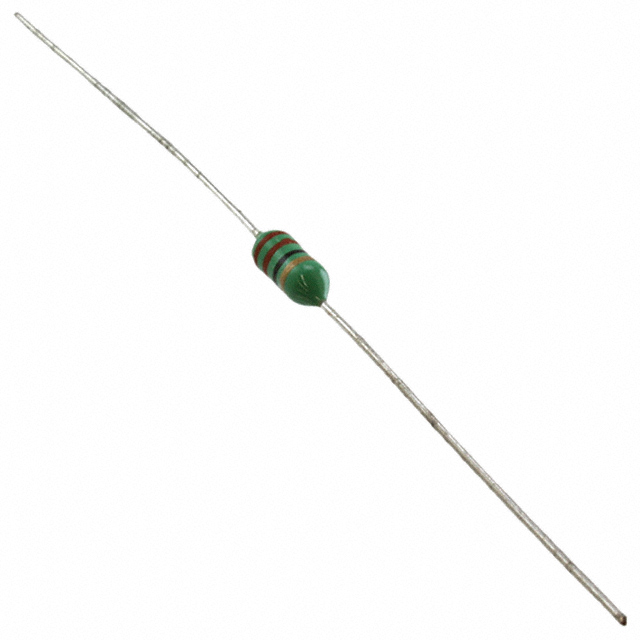

Bourns Inc. 78F330J-RC	2.5 MHz 50	Ferrite	0.255 A	10 MHz	Axial	1.5 Ohm	33 µH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	5 %	-55 C	105 ░C	2.5 MHz

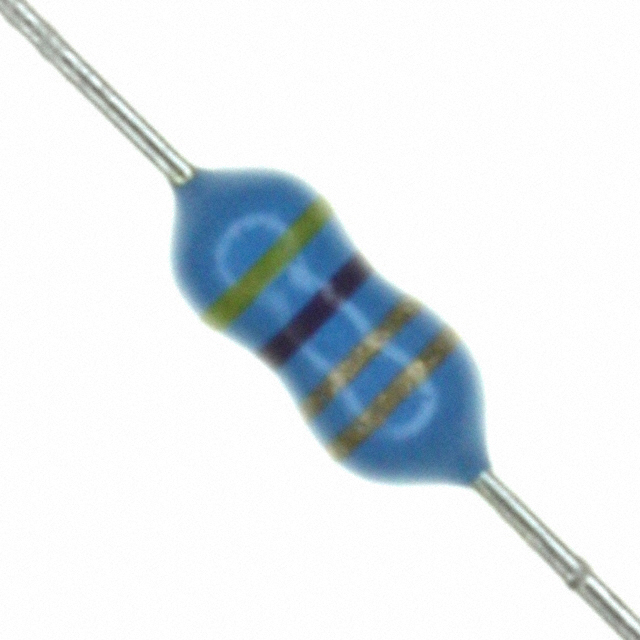

Bourns Inc. 78F4R7J		Ferrite	0.23 A	50 MHz	Axial	350 mOhm	4.7 ÁH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	5 %	-55 C	105 ░C	7.9 MHz	45	7.9 MHz

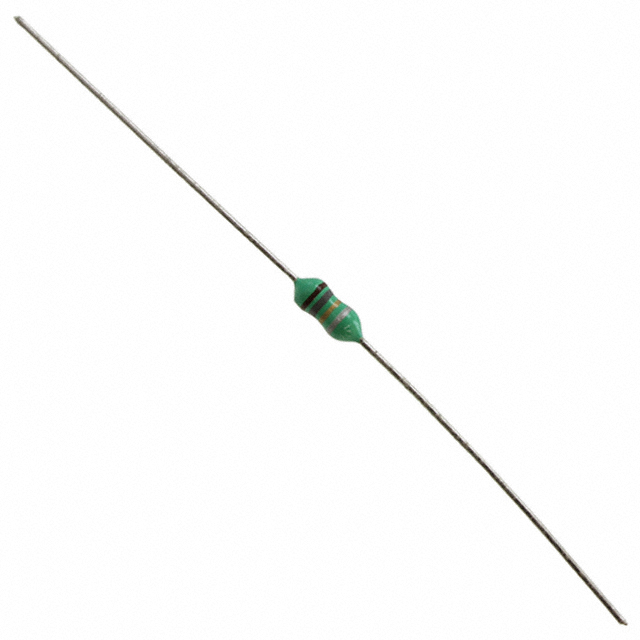

Bourns Inc. 78F1R8K	7.9 MHz 50	Ferrite	455 mA	125 MHz	Axial	250 mOhm	1.8 µH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	10 %	-55 C	105 ░C	7.9 MHz

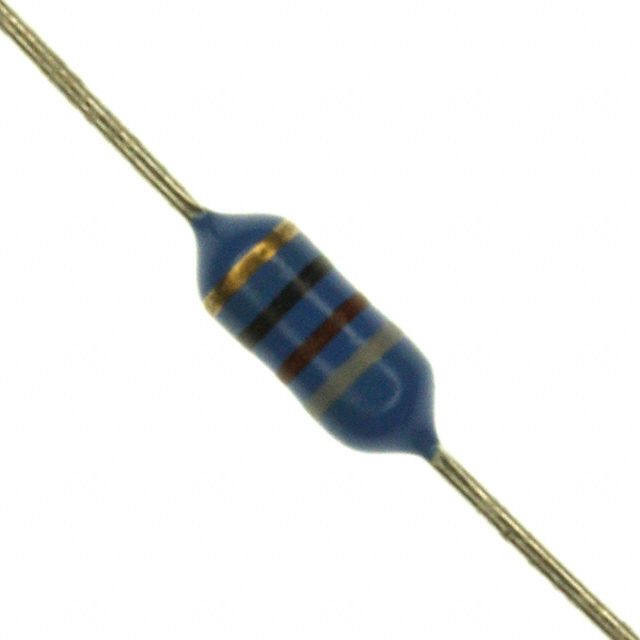

Bourns Inc. 78F820J-RC	60	Ferrite	175 mA	6 MHz	Axial	3.6 Ohm	82 µH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	5 %	-55 C	105 ░C	2.5 MHz		2.5 MHz

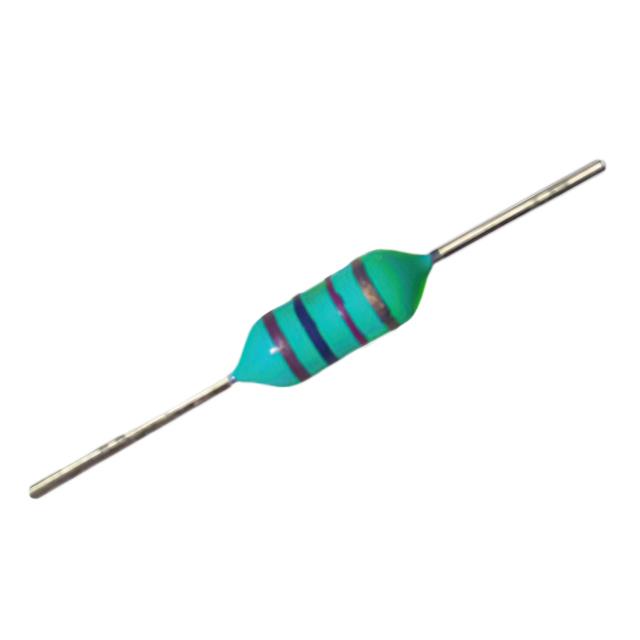

Bourns Inc. 78F102J-RC	60 790 kHz	Ferrite	60 mA	1.2 MHz	Axial	31.4 Ohm	1 mH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	5 %	-55 C	105 ░C	790 kHz

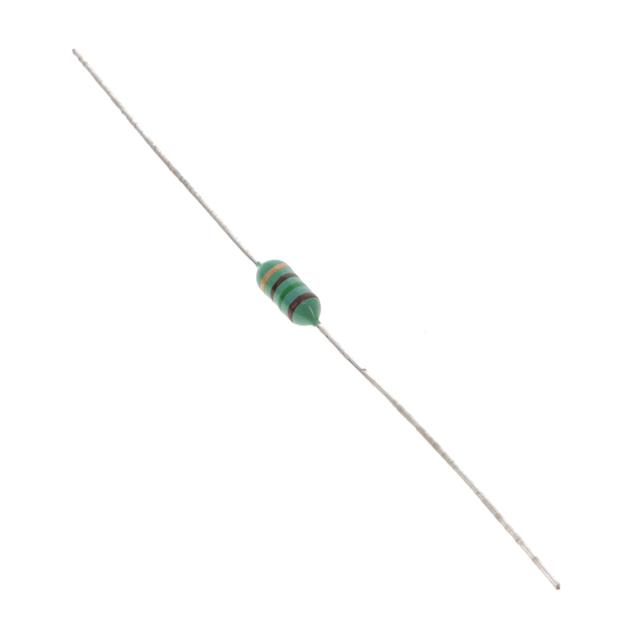

Bourns Inc. 78F151J-RC	60 790 kHz	Ferrite	150 mA	4.75 MHz	Axial	5.4 Ohm	150 µH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	5 %	-55 C	105 ░C	790 kHz
Bourns Inc. 78FR39K-RC		Ferrite	1 A	310 MHz	Axial		390 nH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	10 %	-55 C	105 ░C	25 MHz	40	25 MHz	100 mOhm

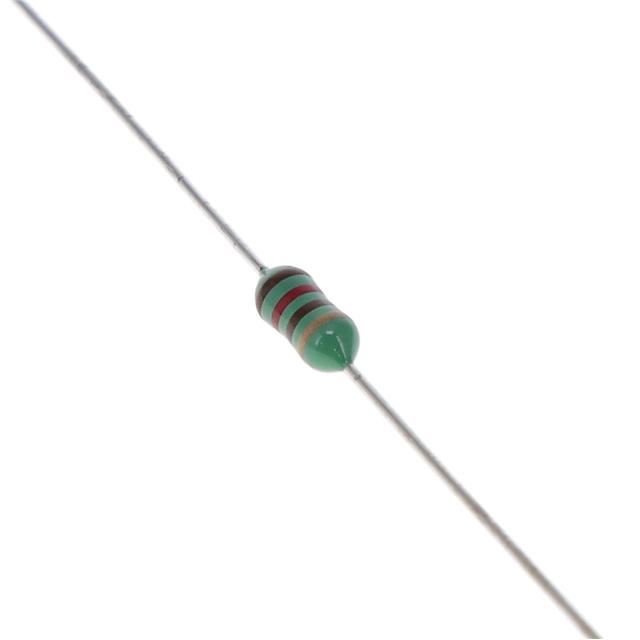

Bourns Inc. 78F121J-RC	60 790 kHz	Ferrite	160 mA	5.4 MHz	Axial	4.7 Ohm		2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	5 %	-55 C	105 ░C	790 kHz
Bourns Inc. 78F3R9J-RC		Ferrite	555 mA	50 MHz	Axial		3.9 µH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	5 %	-55 C	105 ░C	7.9 MHz	45	7.9 MHz
Bourns Inc. 78F1R0K-RC		Ferrite	815 mA	180 MHz	Axial		1 µH	2.79 mm	7.11 mm	0.28 in	0.11 in	Drum Core Wirewound	Unshielded	Through Hole	10 %	-55 C	105 ░C	25 MHz	40	25 MHz	150 mOhm
