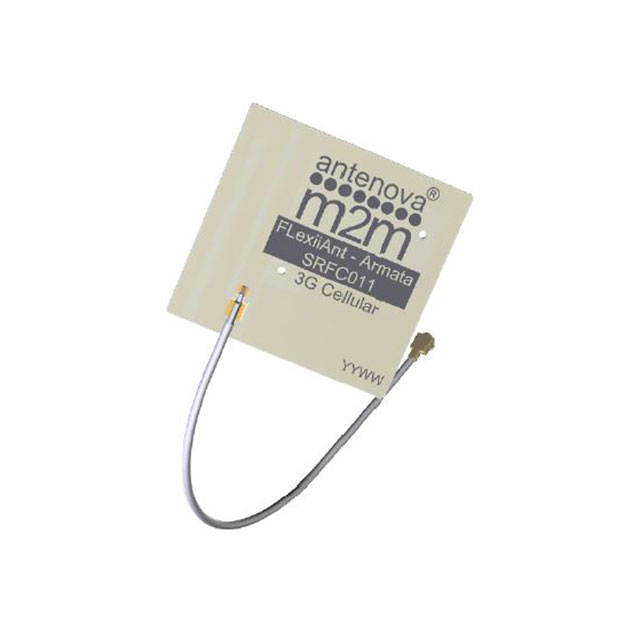

SRFC011 Series

Manufacturer: Antenova

Catalog

RF ANT 892MHZ/1.9GHZ FLAT PATCH

Part	Termination	Termination	Return Loss	Frequency (Center/Band)	VSWR	Number of Bands	Applications	Frequency Range [Min]	Frequency Range [Max]	Gain	Antenna Type	RF Family/Standard	Mounting Type	Height (Max) [z]	Height (Max) [z]
Antenova SRFC011-200	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	-12 dB	1.9 GHz 892 MHz	2.2	2	GSM WCDMA	1.71 GHz 824 MHz	2.17 GHz 960 MHz	4 dBi	Flat Patch	Cellular	Adhesive	0.15 mm	0.006 in
Antenova SRFC011-150	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	-12 dB	1.9 GHz 892 MHz	2.2	2	GSM WCDMA	1.71 GHz 824 MHz	2.17 GHz 960 MHz	4 dBi	Flat Patch	Cellular	Adhesive	0.15 mm	0.006 in
Antenova SRFC011-100	IPEX MHF1	I-PEX MHF1 U.FL (UMCC)	-12 dB	1.9 GHz 892 MHz	2.2	2	GSM WCDMA	1.71 GHz 824 MHz	2.17 GHz 960 MHz	4 dBi	Flat Patch	Cellular	Adhesive	0.15 mm	0.006 in
