172732 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER VERT 2POS 2.5MM

Part	Current Rating (Amps)	Shrouding	Mounting Type	Contact Shape	Contact Length - Post	Contact Length - Post	Voltage Rating	Pitch - Mating	Pitch - Mating	Connector Type	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Contact Type	Number of Positions Loaded	Contact Length - Mating	Contact Length - Mating	Fastening Type	Insulation Material	Number of Positions	Material Flammability Rating	Number of Rows	Style	Contact Material	Overall Contact Length	Overall Contact Length	Contact Finish - Post	Applications

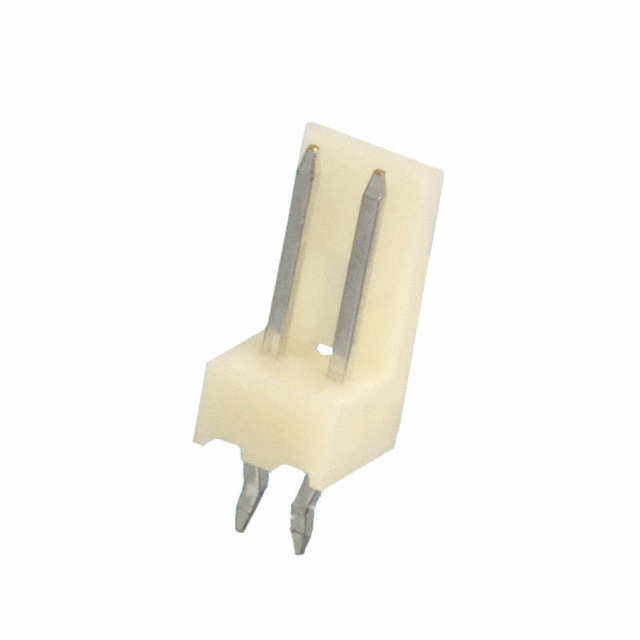

TE Connectivity Raychem Cable Protection 172732-2	Varies by Wire Gauge	Shrouded - 1 Wall	Through Hole	Square	3.6 mm	0.142 in	250 VAC 350 V	2.5 mm	0.098 in	Header	Kinked Pin Solder	-20 C	203 °F	Natural	Male Pin	All	7.49 mm	0.295 in	Latch Holder	Polyamide (PA66) Nylon 6/6	2	UL94 V-0	1	Board to Cable/Wire	Brass	0.551 "	14 mm	Tin	General Purpose
TE Connectivity Raychem Cable Protection 172732-9	Varies by Wire Gauge	Shrouded - 1 Wall	Through Hole	Square	3.6 mm	0.142 in	250 VAC 350 V	2.5 mm	0.098 in	Header	Kinked Pin Solder	-20 C	203 °F	Natural	Male Pin	All	7.49 mm	0.295 in	Latch Holder	Polyamide (PA66) Nylon 6/6	9	UL94 V-0	1	Board to Cable/Wire	Brass	0.551 "	14 mm	Tin	General Purpose
TE Connectivity Raychem Cable Protection 172732-3	Varies by Wire Gauge	Shrouded - 1 Wall	Through Hole	Square	3.6 mm	0.142 in	250 VAC 350 V	2.5 mm	0.098 in	Header	Kinked Pin Solder	-20 C	203 °F	Natural	Male Pin	All	7.49 mm	0.295 in	Latch Holder	Polyamide (PA66) Nylon 6/6		UL94 V-0	1	Board to Cable/Wire	Brass	0.551 "	14 mm	Tin	General Purpose
TE Connectivity Raychem Cable Protection 4-172732-2	Varies by Wire Gauge	Shrouded - 1 Wall	Through Hole	Square	3.6 mm	0.142 in	250 VAC 350 V	2.5 mm	0.098 in	Header	Kinked Pin Solder	-20 C	203 °F	Blue	Male Pin	All	7.49 mm	0.295 in	Latch Holder	Polyamide (PA66) Nylon 6/6	2	UL94 V-0	1	Board to Cable/Wire	Brass	0.551 "	14 mm	Tin	General Purpose
