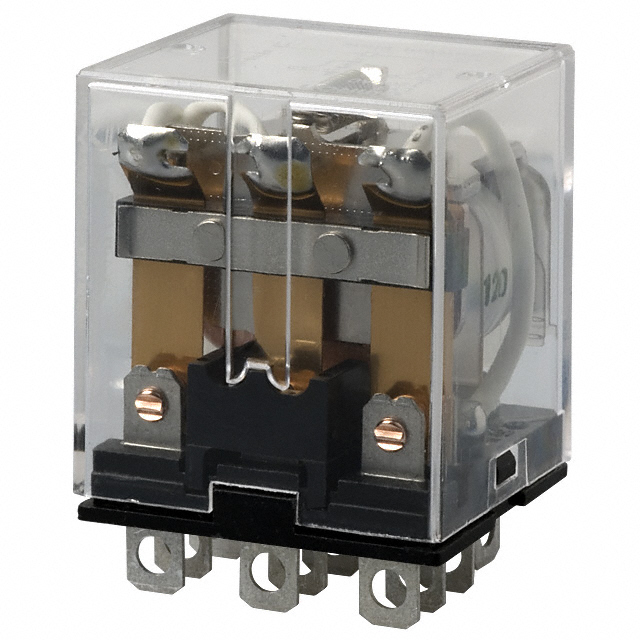

LY3-AC Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 3PDT 10A 220V
| Part | Operate Time | Approval Agency | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Must Operate Voltage | Coil Type | Coil Current | Coil Voltage | Mounting Type | Coil Resistance | Must Release Voltage | Contact Rating (Current) | Switching Voltage | Termination Style | Contact Material | Contact Form | Relay Type | Load - Max Switching |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 25 ms | CE CSA TUV UR | 25 ms | 55 °C | -25 °C | 176 VAC | Non Latching | 9.9 mA | 220 VAC/DC | Socketable | 8.65 kOhms | 66 VAC | 10 A | 125 VDC 250 VAC | Plug In | Silver Alloy | 3PDT (3 Form C) | General Purpose | 1250 W 2500 VA |
Omron Electronics Inc-EMC Div | 25 ms | CE CSA TUV UR | 25 ms | 55 °C | -25 °C | 19.2 VAC | Non Latching | 67 mA | 24 VAC | Socketable | 100 Ohms | 7.2 VAC | 10 A | 125 VDC 250 VAC | Plug In | Silver Alloy | 3PDT (3 Form C) | General Purpose | 1250 W 2500 VA |
 Omron Electronics Inc-EMC Div | 25 ms | CE CSA TUV UR | 25 ms | 55 °C | -25 °C | 96 VAC | Non Latching | 14.8 mA | 120 VAC | Socketable | 2.45 kOhms | 36 VAC | 10 A | 125 VDC 250 VAC | Plug In | Silver Alloy | 3PDT (3 Form C) | General Purpose | 1250 W 2500 VA |
